Mortise Lock and Keeper - Sliding Patio Door, 45 Degree Keyway Aluminum/Steel

Part Number: 15062
Price: $19.26
Mortise lock and keeper for sliding patio door.

This lock requires a mortise installation.
The lock housing is constructed out of aluminum.
Includes anti-lift protection.
The hook is steel plated and mounted in an anti-friction pivot.
This design is used by several door manufacturers including Pennco.

Markings: 1973 Patent No. 3.596.95

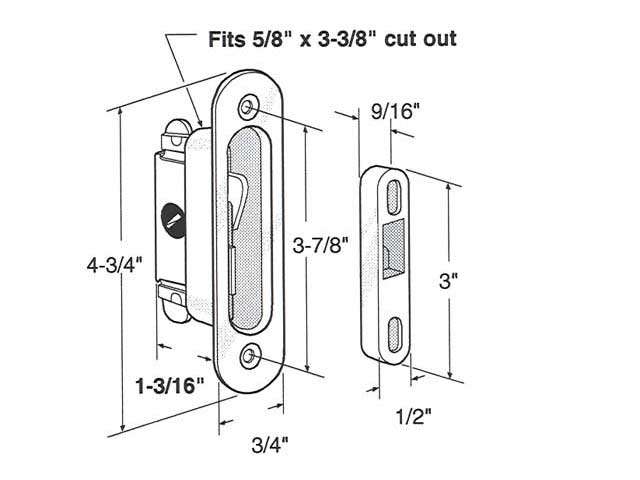

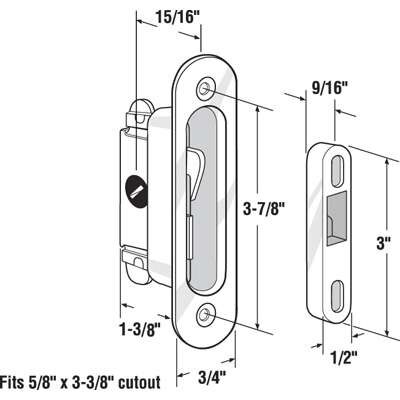

Hole Center: 3-7/8-inch
Keyway: 45 Deg.
Overall Depth: 1-3/16

1 lock and keeper assembly
1 complete set of fasteners

Related items:
15069 - 1-9/16 Large Housing
15062 - 1-3/16 Small Housing
14032 - Handle Set
15637 - Keeper
This product is similar to or the same as the following part numbers in these brands:
Prime-Line Products: E 2079
