Unavailable Hurd Handle Set Normandy Hinged Patio door - Antique Brass

Part Number: 40056
Discontinued and Unavailable

This product has been discontinued and is no longer available

This item is Discontinued and is no longer available.

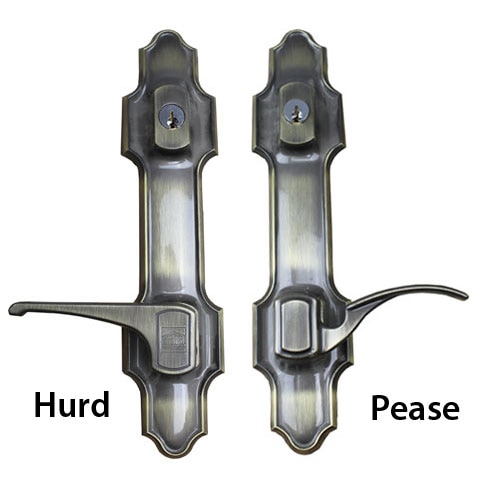

Hurd complete Normandy patio door lock set.

Used by Many Companies Like Pease, Hurd, Weathershield and others.

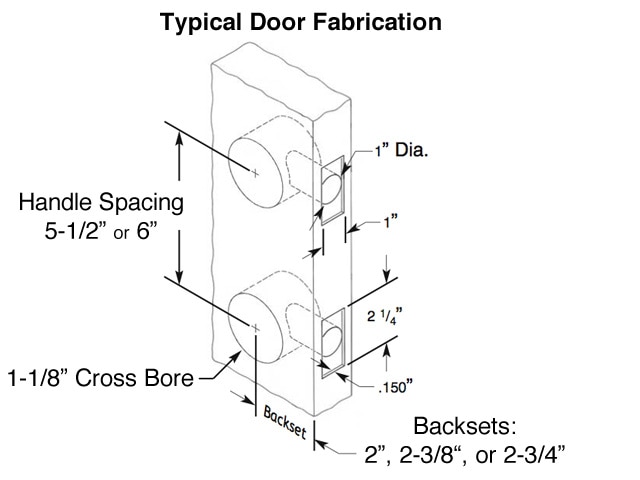

Backset:  2, 2 -3/8  and 2 -3/4 inch

Backplate Length: 10-1/2 inch

This lockset uses 2 individual latches, One spring latch and one dead bolt latch.

Hole spacing for the latches is 5-1/2 Centers, some doors where 6 inch

Backset: Standard 2-3/8, some doors had 2-3/4 or 2 inch

The most common problem is the internal spring on the handle breaks or the black plastic bushing breaks


Related Pease door replacement hardware:

40055 - 6 Inch Bore Spacing

40054 - 5-1/2 inch Bore Spacing


Pease/Normandy Style lockset some individual parts available:

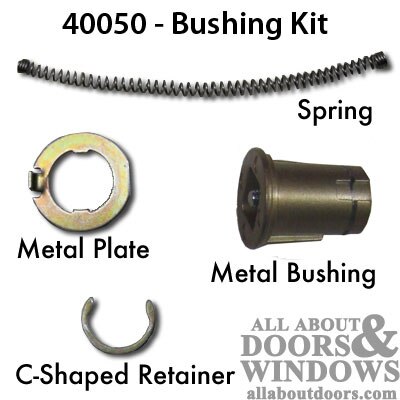

40050 - Bushing Kit, Metal Upgrade

40043 - 2-3/4 Backset Deadbolt Latch

40044 - 2-3/4 Backset Spring Latch

40045 - 2-3/8 Backset Deadbolt Latch

40046 - 2-3/8 Backset Spring Latch

40047 - 2 inch Backset Spring Latch - Discontinued - SEE: 48145203+481499001

40048 - 2 inch Backset Deadbolt Latch - Discontinued - Limited Qty

40049 - 2  Backset Latches, Spring & Deadbolt Combo - Discontinued

40051 - 2-3/8 Backset Latches, Spring & Deadbolt Combo

40052 - 2-3/4 Backset Latches, Spring & Deadbolt Combo


Priced and sold each.
