Hoppe Manual Swing Hook Gear 45/92, 36 inch Handle Height, 1 inch Deadbolt, Hook at 24.41 inches

Part Number: 3622876
Price: $184.73
16mm Hoppe Swing Hook and Shootbolt Manual, Bottom Gear Assembly with Shootbolt attached.

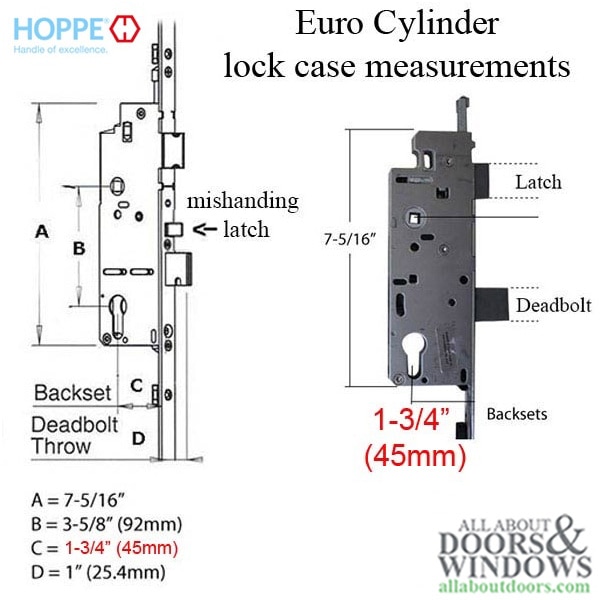

Faceplate: 5/8" (16mm)
Backset: 1-3/4" (45mm)
Deadbolt Throw: 1" (25mm)
Handle Height: 36" (914mm)
Bottom Swing Hook Position: 24.41" (620mm)
Number of Screws: 4

Related Parts:
3660426 - 2-3/8" Backset, Lower Hook + Shootbolt Assembly
3868761- 2-3/4" Backset, Lower Hook + Shootbolt Assembly
3814747- 1-3/8" Backset, Lower Hook + Shootbolt Assembly
3622876- 1-3/4" Backset, Lower Hook + Shootbolt Assembly

To better understand please see our Multipoint Lock Glossary Of Terms
