Hoppe HLS9350 Aluminum Door Gear for Balcony and Terrace Doors 35mm Backset

Hoppe HLS9350 Manual Gear

Used on Aluminum Profile Door Systems with Connecting Rods and Cam Drive
Square ends with round drive pins on both ends.

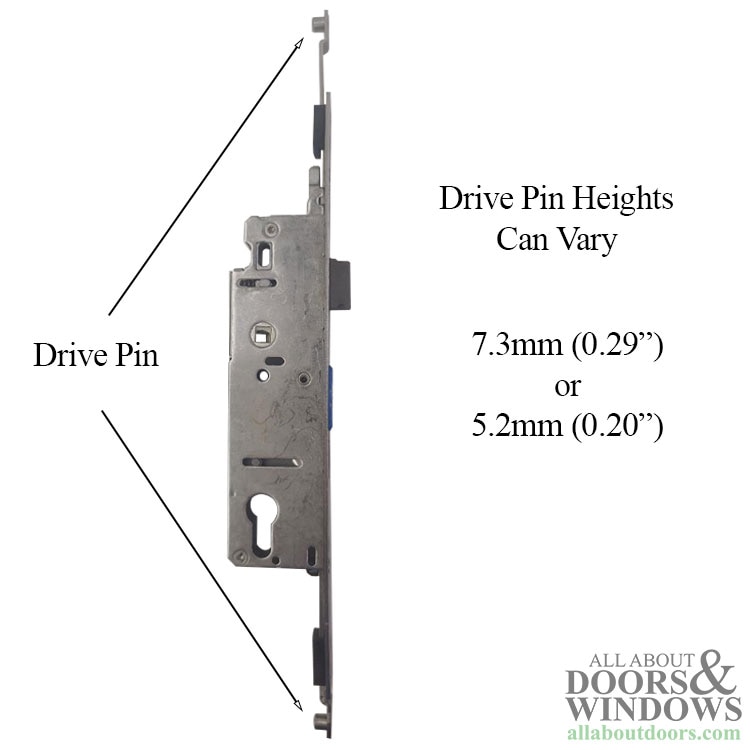

NOTE: The drive pins on this lock can come in different lengths. Please measure carefully.

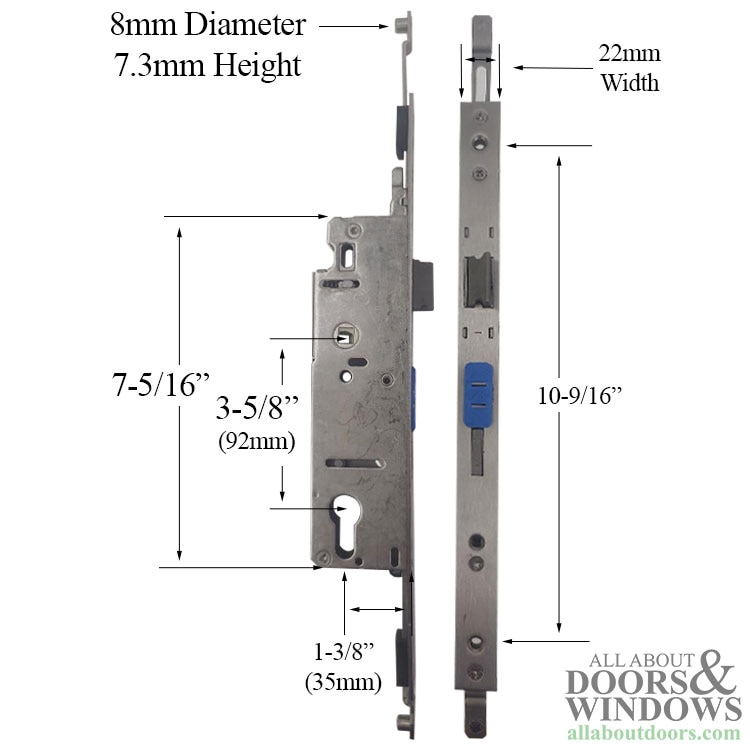

Specifications:

Drive Pin Diameter: 8mm
Drive Pin Height: 7.3mm
Backset: 1-3/8" (35mm)
PZ: 3-5/8" (92mm)
Deadbolt Throw: 1/2" (14mm)
Face Plate Width: 7/8" (22mm)
Screw Hole Spacing: 10-9/16"

IMPORTANT MEASUREMENTS TO KNOW:
1. Backset (distance between the center of the cylinder to the front edge of the face plate)
2. Drive Pin Diameter
3. Drive Pin Length

Priced and sold each.
