Hoppe HLS9000 Swing Hook 16mm Middle Extension

HOPPE 16mm HLS9000 manual middle extension with two Swing Hooks.

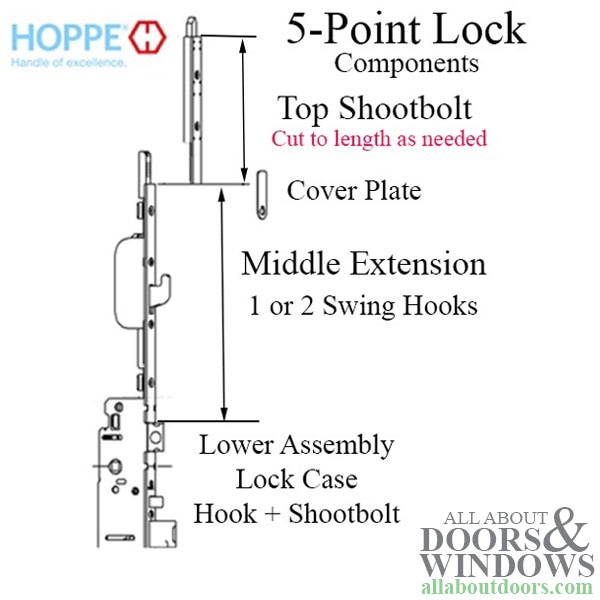

The middle extension is attached to the lower assembly just above the spring latch. A shoot-bolt extension is attached to the top of the middle extension to complete the multipoint lock.

Application: Middle Extension used with upper shoot-bolt
Locking Type: 2 swing hooks
1st Top Hook: 19.69 inches ( 500mm)
2nd Top Hook: 35.43 inches (900mm) square end
Hook Projection: 3/4 inch (19.5mm)
Face Plate Width: 5/8 inch (16mm)
Extension Length: 39.84 inches (1012mm)
Maximum Cutoff: None
Number of Screws:  6 Stainless Steel

NOTE: There are 5 middle extensions used with various top extensions to accommodate door panel heights from a minimum 73.50  inches (1867mm) to a maximum 137.48 inches (3492mm)
