Hoppe F9714 2009 Set Hinge RHI / LHO Black

Hoppe New 2009 Ultimate Adjustable Set Hinge

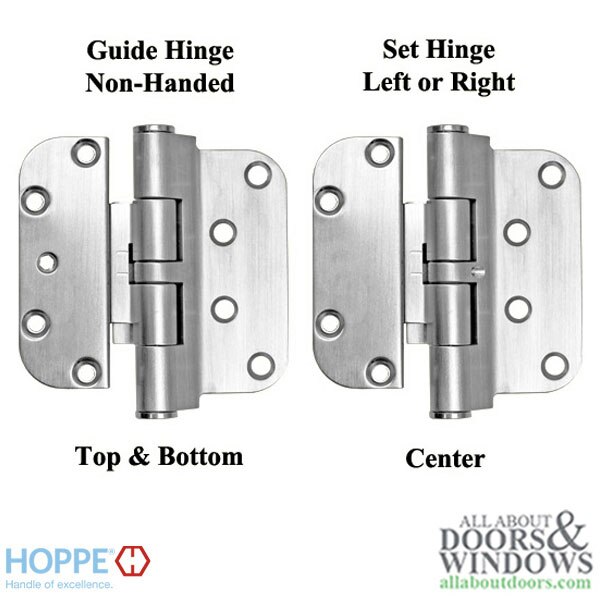

NOTE: Guide Hinge vs Set Hinge
Guide Hinge: Adjusts horizontally only by +/- 1/8" (+/- 3mm)
Large 3/16" hex head screws make adjustments effortless.
Set Hinge: Adjusts vertically only by +/- 1/8" (+/- 3mm)
All Set Hinges are equipped with non-removable pins for security, making HOPPE hinges the ideal solution for both inswing and outswing doors.

Material: Aluminum
Hinge Type: Set for Vertical Adjustment
Hinge Style: NRP - Non Removable Pin - Hinges does not come apart
Color / Finish: Matte Black

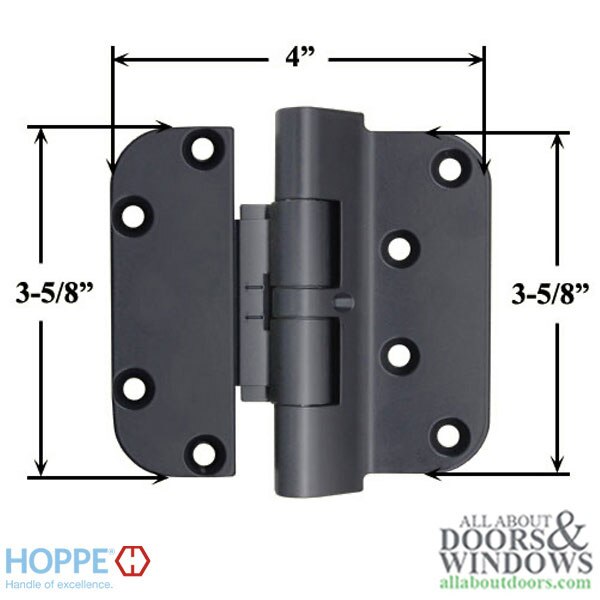

Size: 4 inches Wide by 3-5/8 tall (Set additional images)
Handed: Yes - RHI (right hand inswing) LHO (left hand outswing)

Screws are not included with hinges.
Must be purchased separately.

Each hinge requires 8 screws
4x #10 x 1-1/4" for door panel hinge leaf
3x #10 x 3/4" for jamb side hinge leaf
1x #10 x 2-1/4" for jamb side hinge leaf

RESOURCES:
Guide to Adjusting HOPPE Hinges
Installation Guide for HOPPE Hinges

RHIS - Right Hand Inswing
RHOS - Right Hand Outswing
LHIS - Left Hand Inswing
LHOS - Left Hand Outswing
