Hoppe F79, 2009 Set Hinge LHI/RHO, Oil Rubbed Brass

Part Number: 2972719
Price: $78.92
Hoppe New 2009 Ultimate Adjustable Hinge
* Adjusts both vertically (Set Hinge) and horizontally (Guide Hinge) by +/- 1/8\" (+/- 3mm) for a perfect swing without costly repairs or carpentry work
* Large 3/16\" hex head screws make adjustments effortless, and prevent the stripping that can occur on comparable products with Phillips head or smaller hex head adjustment screws
* All Set Hinges are equipped with non-removable pins for security, making HOPPE hinges the ideal solution for both inswing and outswing doors
Material: Brass Base Material
Hinge Type: Set for Vertical Adjustment
Hinge Style: NRP - Non Removable Pin - Hinges does not come apart
Color / Finish: Oil Rubbed Brass

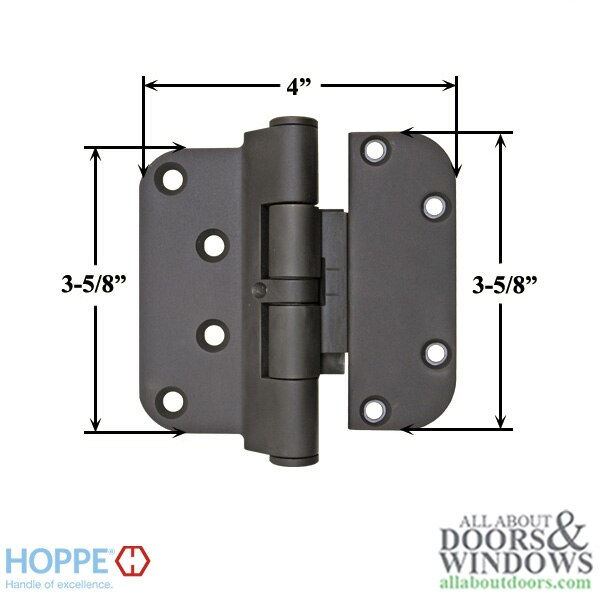

Size: 4 inches Wide by 3-5/8 tall ( Set additional images )

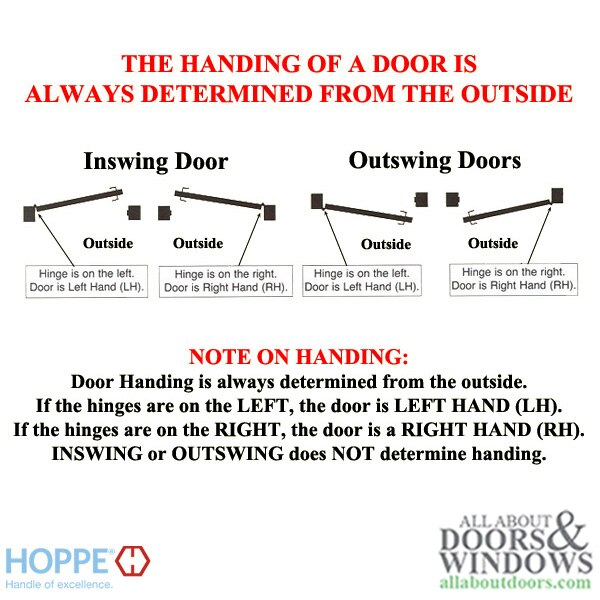

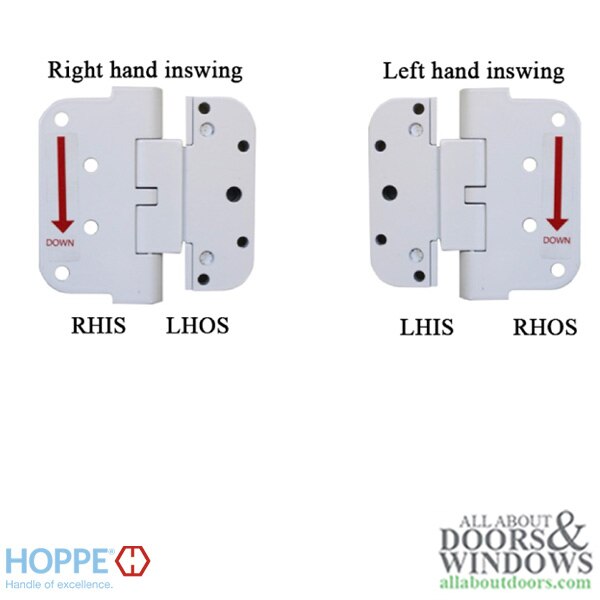

Handed: Yes - LHI ( Left hand inswing) RHO ( Right hand outswing)

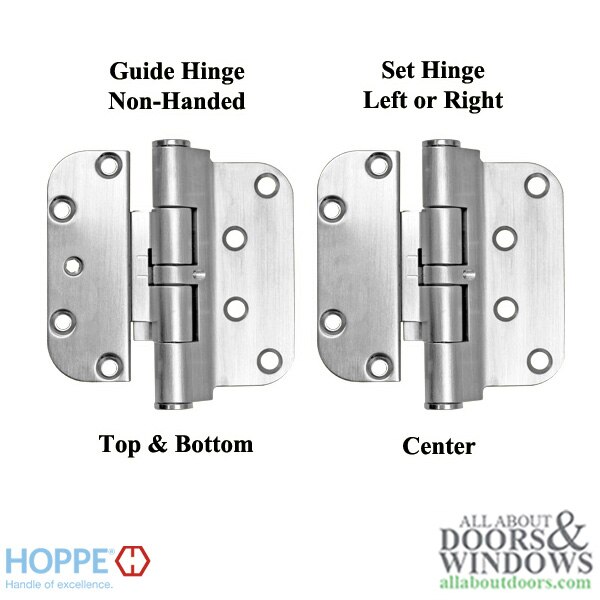

a 3 hinge door will have 1 set hinge (middle) and 2 guide hinges( top & bottom)

Read: Guide to Adjusting HOPPE Hinges

Screws are not included with hinges. Must be purchased from a hardware store.
Each hinge requires 8 screws
4x #10 x 1-1/4" for door panel hinge leaf
3x #10 x 3/4" for jamb side hinge leaf
1x #10 x 2-1/4" for jamb side hinge leaf
