Heavy Duty Mortise Lockset, 2-1/2" Backset
Heavy Duty Mortise Lockset
Through-bolted knob plate assemblies
Self adjusting spindles with screwless knobs.
Solid Brass cylinder with keys
Backset: 2-1/2"
Deadbolt: 1"
Mortise Lock Faceplate Width: 1-1/16"
Mortise Lock Faceplate Length: 7-5/8"

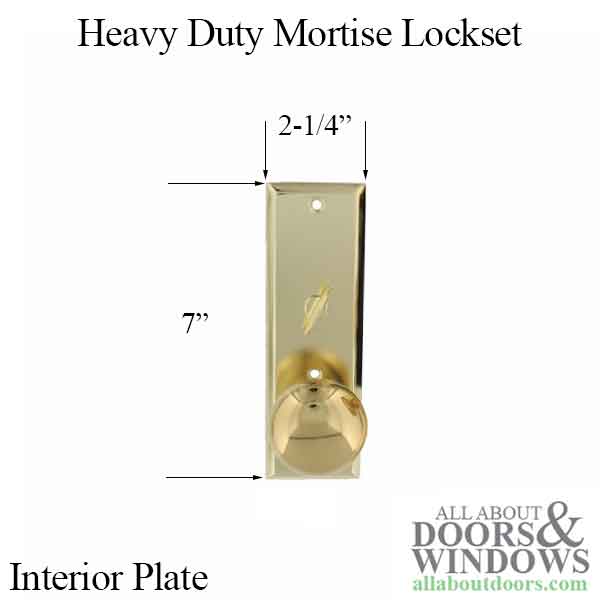

Interior Backplate Width: 2-1/4"
Interior Backplate Length: 7"

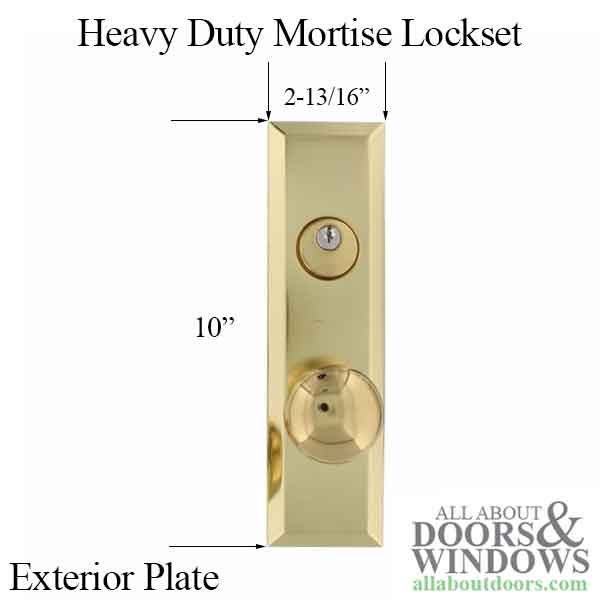

Exterior Backplate Width: 2-13/16"
Exterior Backplate Length: 10"
Handed: Yes
Available Colors/Finishes
Polished Brass
Handing Options:
Left Hand
Right Hand

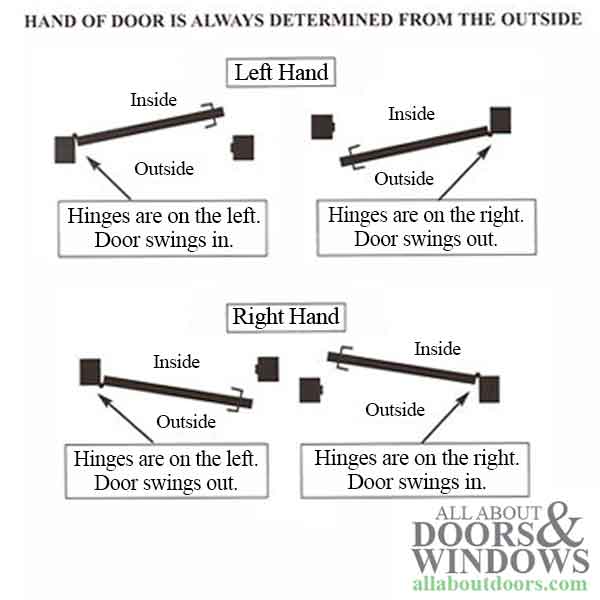

How to determine handing: (see image 4)
Left Hand: Hinges are on the left and door swings in. OR Hinges are on the right and door swings out.
Right Hand: Hinges are on the right and door swings in. OR Hinges are on the left and door swings out.
Included Components:
Interior Backplate with knob
Exterior Backplate with knob
Solid brass cylinder with keys
Strike Plate
Mortise Lock
Installation screws
Priced and sold as a pack
