RH Entrance Manhattan Waldorf Design Handleset w/ Mortise Lock - Polished Brass - Choose Handing

Part Number: 301084
Price: $65.95

Manhattan Waldorf design right hand entry handleset with mortise lock in polished brass.
These handle sets are after market.

LOCK INCLUDES:

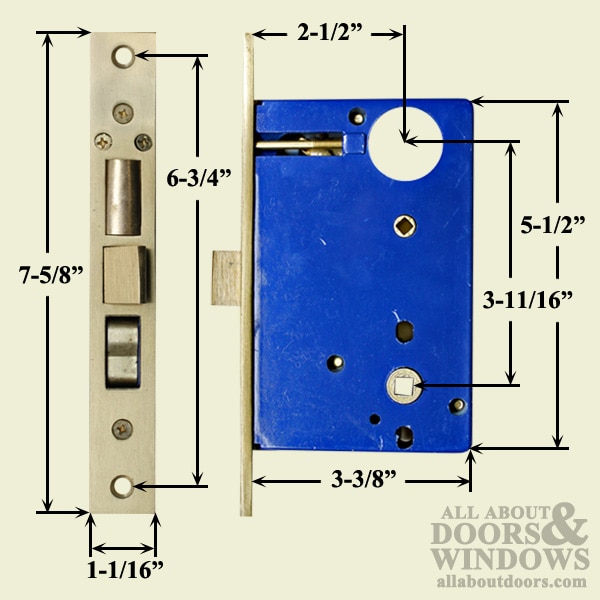

• Mortise lock body with reversible latchbolt.
• Full 1'' throw heavy-duty dead bolt.
• 5 Pin tumbler, solid brass mortise cylinder with
Kwikset keyway.

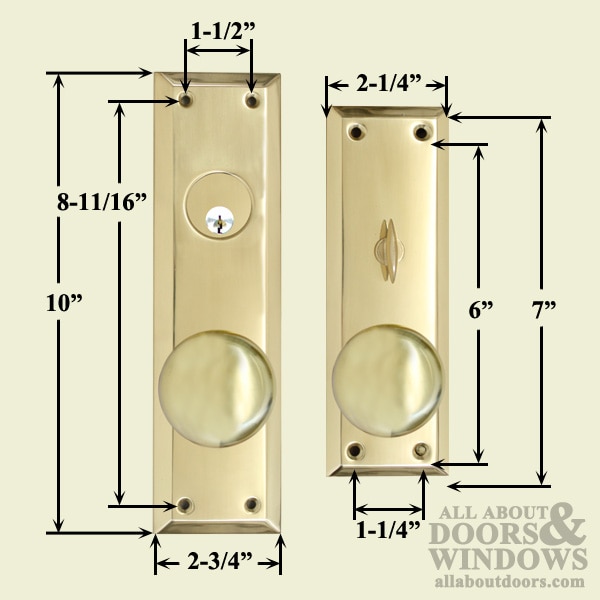

• Exterior beveled plate, 2-3/4'' x 10''.
• Interior beveled plate, 2-1/4'' x 7'' with turnpiece.
• Solid brass regular knobs—2-1/4'' diameter with
threaded spindle.
• Standard ASA strike.
• Complete with screw package and mounting instructions.
• Face plate—Interchangeable commercial type.
• Please note: All trim is commercial grade – First stamped,
then highly polished (no unfinished rough edges)
• Backset — 2-1/2''
• Latch throw — 1/2''
• Bolt throw — 1''
• Case — High pressure cast
• Face plate — 1-1/16'' x 7-5/8'' solid brass (Optional 1-1/4''x 8'' Wide Face)
