Handle Set for Sliding Patio Door with Internal Lock 3-15/16 inch Screw Hole Center

Sliding Patio Door Handle Set, Internal Locking, 3-15/16 Inch Screw Hole Center

Fits Wells Metal/Aluminum Sliding 1 inch thick Doors, Wood Handle For 1 to 1 & 1/4 inch thick door rails. Outside Handle - ''S'' Curve - will work with 15033 key cylinder.

Specifications:

• Color: Black/Wood or White/Wood
• Finish: Painted/Wood

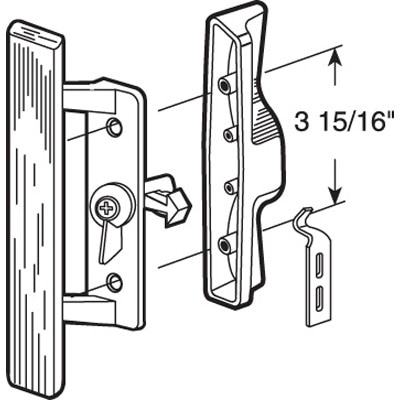

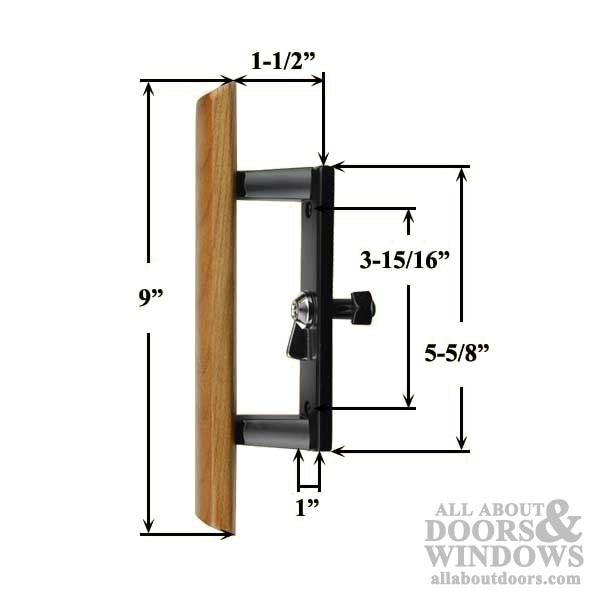

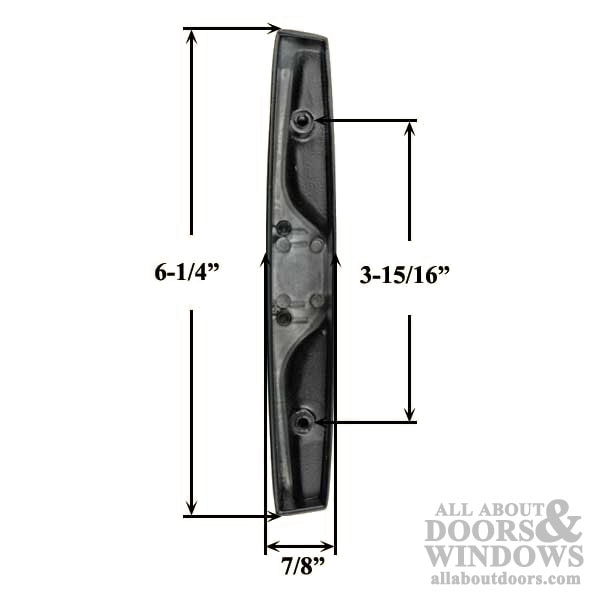

• Screw Hole Center: 3-15/16-inch
• Latch Style: Hook Style
• Material: Mixed Materials
• Type: Handle Internal Lock

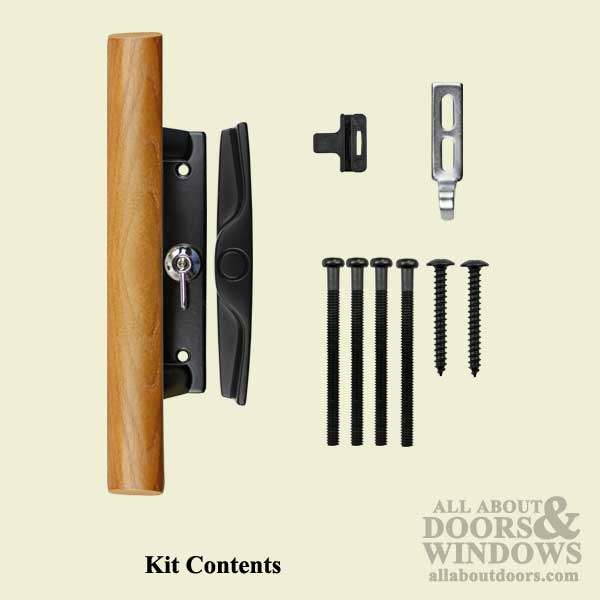

Contents: inside/outside pull and latch, keeper, locking cylinder, screws

See additional information tab for installation note.

Installation Note:

1. Verify Screw Spacing
2. DO NOT remove screw on thumb turn
3. Hook goes in first, turn sideways, shaft will fit into hole, turn again to align screw holes

This product is similar to or the same as the following part numbers in these brands:
Prime-Line Products: C 1107, C 1195
