Hinged Door; Fuhr 6-Point active panel Lock Case, 8-0 Hinged Patio Door, Face Plate
Faceplate width: 5/8 Wide (16mm) Overall Length
: 92-15/16 inches long.
Three Locking Rollers
Below Handle: 13-7/8 locked or 13 inches; Unlocked position - (Roller in Up Position)
1st roller Above Handle: 13-3/8 Locked or 14 inches in unlocked position
2nd roller Above Handle: 37-1/4 Locked or 38 inches in unlocked position
Two vertical Shoot Bolts, one at top and one at bottom.

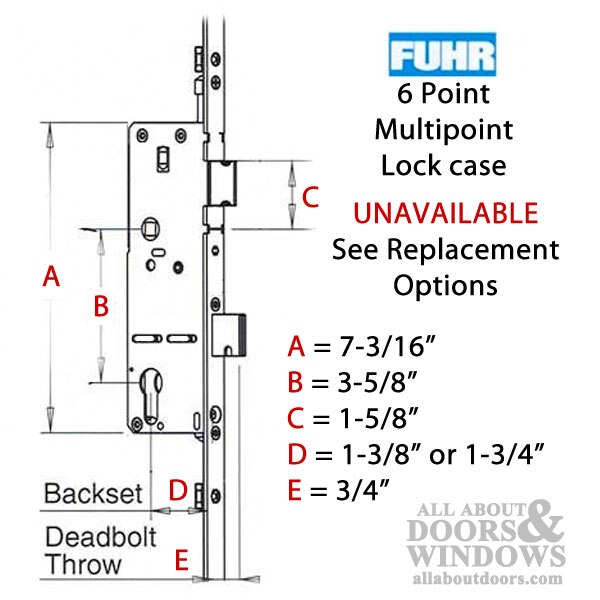

Lock Body Measurements: Backset
: 1-3/8 inches (35mm) Handle spacing
from Center of spindle to Cylinder: 3-5/8 inches (92mm). Handle Height
: 35-7/16 inches. REPLACEMENT OPTION: 4990237-KIT
Includes gear box
, middle extension arm, and top and bottom shootbolts
