Essve Hook Latch 3-Point Multipoint Lock, 68 inch American Cylinder - Discontinued

Part Number: 499051499
Price: See Description

Discontinued and no longer available

Essve multipoint lock with slot for American cylinder. This item is Discontinued, Custom Replacement is available

Distributed by Truth Hardware and used by Marvin, Pease and others.


The original ESSVE was available with an American or European profile cylinder

This is the American cylinder version with slot for key cylinder


ESSVE Information and Measurements:

Type: 3 Point Lock, 2 hooks and dead bolt

Brand: Essve by Truth

Faceplate Width: 25/32 inch (20 mm)

Door Size: 6-8 & 7 foot tall doors

Overall Faceplate length:  68 inches (1727 mm) with radius (rounded) ends.

Lock Backset: 1-3/4 inch (45 mm)

Handle spacing:  Standard  3-5/8 inches (92mm)

center of handle to center of bottom hook: 26 inches (660mm)

center of handle to center of Top hook: 46-1/4 inches (1175 mm)

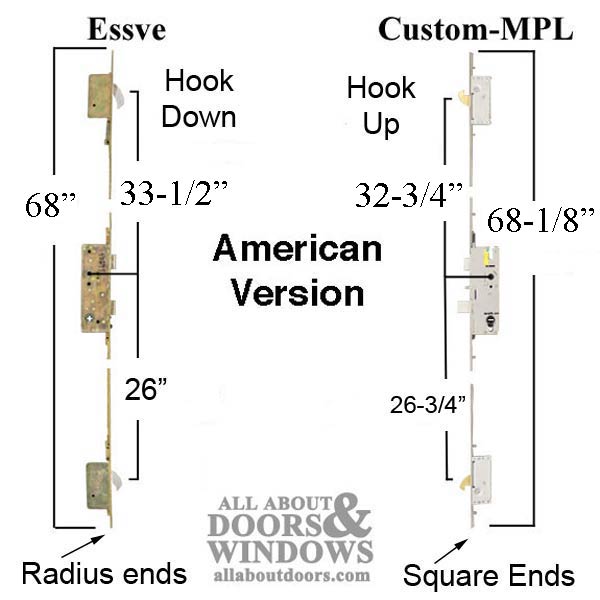

Available Replacements:

4990615-Kit:  Custom 68-1/8 inch Multipoint Lock with squared off ends for single active door

The replacement kit is made to fit the cutout in the door panel, hook placement is slightly different

See Related Products below for link to replacement



Replacement lock requires minor modifications to Install.

Need to modify the locking rails by cutting the metal to length and Mortise groove in the door or mortise to fit new square shape.

In that process, you will have to chisel out certain areas of the groove so that new door lock railing and the locking mechanism will fit.

May require enlarging hole in Latch or hook strike plate


If you have a double French door, this becomes a little more complicated.

The replacement will work buy may require slightly enlarging the receptacle hole in the passive door.

If the Passive lock fails at a later date, we DO NOT have a replacement at this time.



For additional info, Contact: Rory@allaboutdoors.com
