Fuhr Mortise Lock, Single Point - See Replacement Options

SKU: 49901002

Details

FUHR

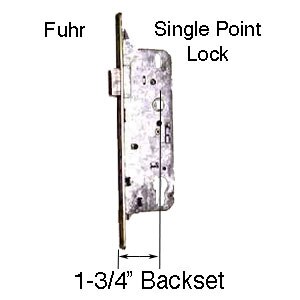

Single Point Mortise Lock

Replace with 11517499or 11517487. See Related Items below.

Used by Norco, Kolbe, Weather Shield and others in the mid-1990s

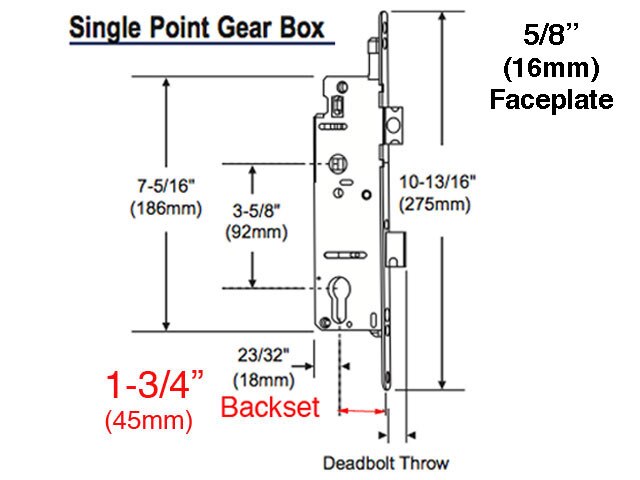

Fuhr's single point mortise lock and HOPPE's are very similar in size. See additional images. Replacement is made by Hoppe and has a stainless faceplate.

  • Faceplate Width: 5/8 inch (16 mm)
  • Faceplate Height: 11-1/2 inches (292 mm)
  • Backset: 1-3/4 inch (45 mm)
  • Screw Hole Spacing: 10-9/16 inches (268 mm)
  • Lock Body Height: 7-5/8 inches (194 mm)

Additional Information

If you have purchased this lock case previously, please check the lock body and faceplate sizes, as the measurements of have changed slightly and may require drilling new screw holes or some minor cutting in mortising.
