Andersen Emco Keyed 3 Post Storm Door Hardware with Deadbolt for 1-1/2 Inch Doors in Polished Brass
This item is DISCONTINUED.
The brass inside handle and outside handle is no longer available.
Replace this item with split finish 306000 (black and polished brass).
Andersen / Emco keyed 3 post storm door hardware handle set with deadbolt for 1-1/2 inch doors in polished brass.
This original hardware is discontinued and is now replaced with split finish, black and polished brass.
Handle set has 3 posts with hole spacing from top the bottom screw of 5-1/2 inch.
Please note that the bottom hole for the key cylinder is not round, it is oval. The 4th screw is a sheet metal screw that goes in the door.

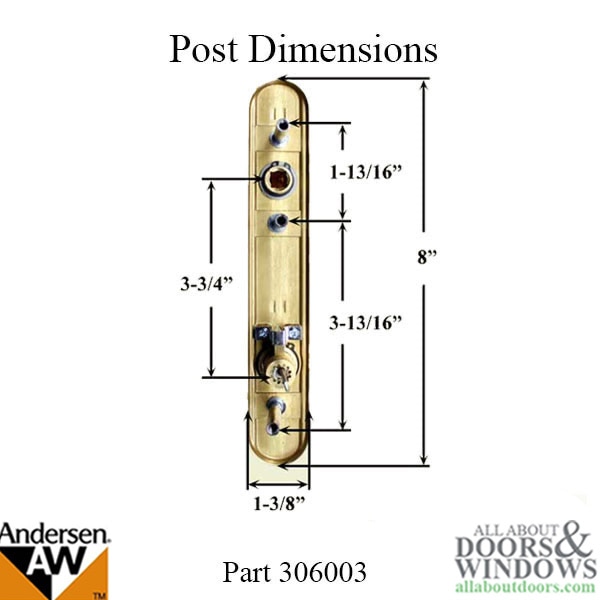

Outside Plate Height: 8 Inch
Outside Plate Width: 1-3/8 Inch
Outside Plate Hole Spacing: 1-3/16 Inch, 3-13/16 Inch

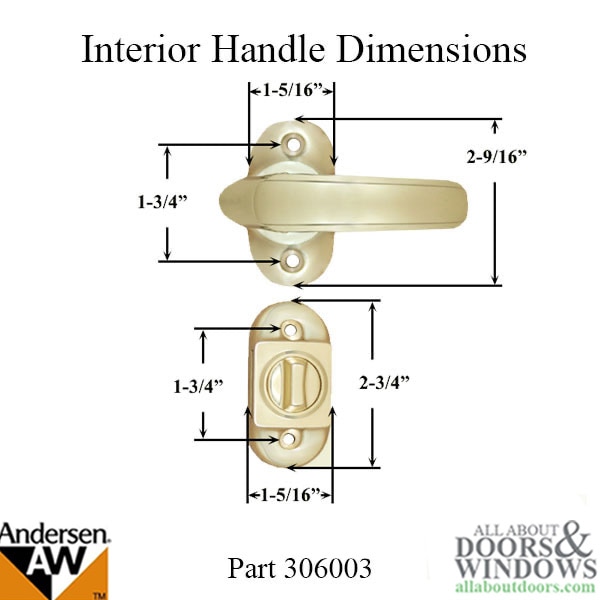

Inside Plate Height: 2-1/2 Inch
Inside Plate Width: 1-5/16 Inch
Inside Plate Hole Spacing: 1-3/4 Inch
Inside Deadbolt Height: 2-3/4 Inch
Inside Deadbolt Width: 1-5/16 Inch
Inside Deadbolt Hole Spacing: 1-3/4 Inch
Finish: Polished Brass
Door Thickness: 1-1/2 Inch
Cylinder: American Style with 1 Inch Flat Tailpiece
Keyway: Rekeyable to SC1 Keyblank 5 Pin Schlage
Priced and sold as kit.
