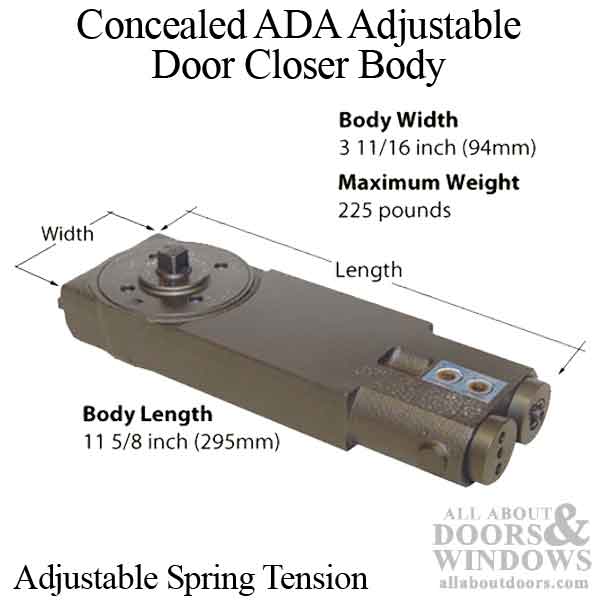

Compact Overhead Concealed ADA Adjustable Door Closer Body TC7000
105Á Back Stop with Hold-Open, Overhead Concealed, TC7000
This compact designed door closer offers an excellent "hidden" solution.
It is center-pivoted for single and double acting doors.
This model is recommend for aluminum door and frame applications.
The closure speed is assured every time with its temperature-sensitive hydraulic fluid.
Adjustable Spring Tension Size:
1-6, Light, Medium or Heavy Duty
Maximum Door Size and Weight:
60" interior / 48" exterior (225 lbs.)
Swing Degree Option:
381085 - 105Á back stop with Hold Open or Non-Hold Open
Arm Type: SLA, ELA, KRM, Offset
Pivot Set: OHC, AE, GE, G
Related Parts: (sold separately)
381085 - 105Á back stop with Hold Open, Adjustable Tension
381086 - 105Á back stop with No Hold Open, Adjustable Tension
381101 - Side Load Arm
381102 - End Load Arm
381103 - K-Type Arm
381104 - Offset Arm with Track
381105 - Dual Purpose Bottom Pivot Set
381106 - AE Pivot Set
381107 - GE Pivot Set
