Ashland Tail Piece Assembly for 1-3/4 or 2-1/4" Thick Door

Part Number: 395034
Price: $3.95

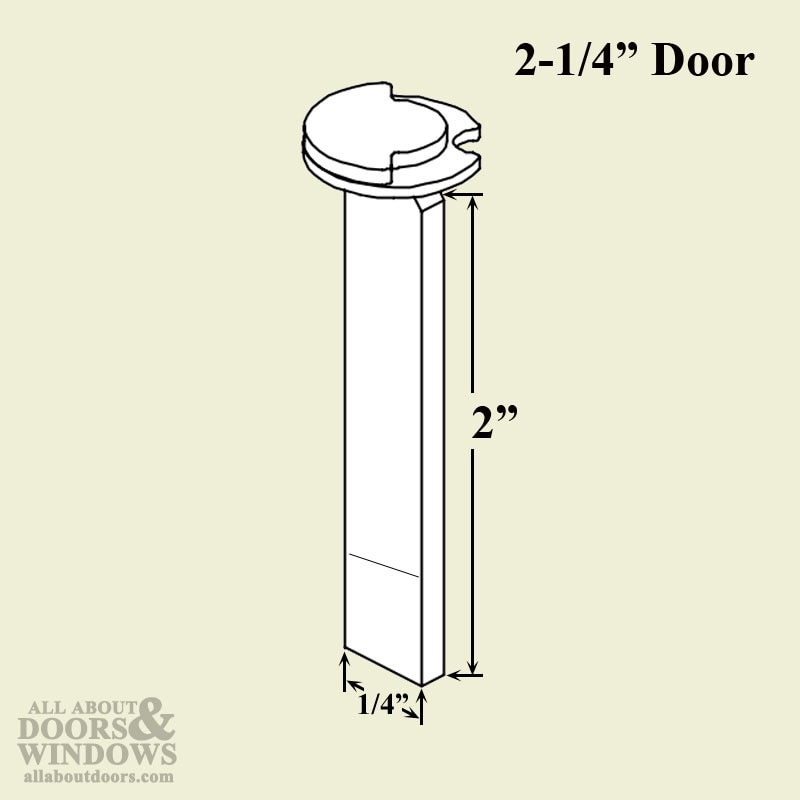

Ashland Tail Piece assembly for 2-1/4" Door, has break off score line for 1-3/4" doors

Cylinder tailpiece to convert 1-3/4 inch thick door trim set to fit 2-1/4" inch thick door
When using standard 1-3/4 inch trim the screws, Spindle and Cylinder tail piece will not be long enough.

Will Need to use longer screws & Tail piece for 2-1/4" Door

Related Ashland Parts:
395020 - Handle Set Screw
395021 - Dummy Fixing Plate

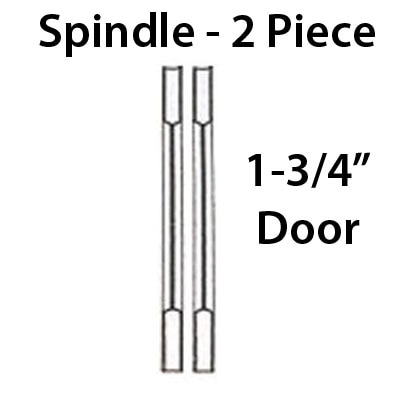

395022 - 2 piece Spindle, 1-3/4" door
395023 - 2 piece Spindle, 2-1/4" door
395024 - Plate Screw, 1-3/4" Door
395025 - Plate Screw, 2-1/4" Door

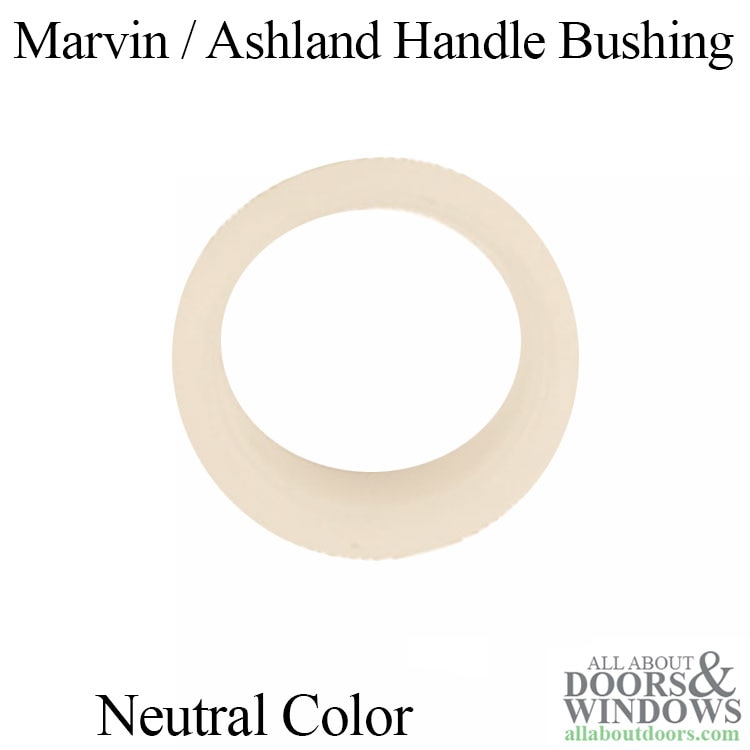

395026 - Handle Bushing, Painted Trim

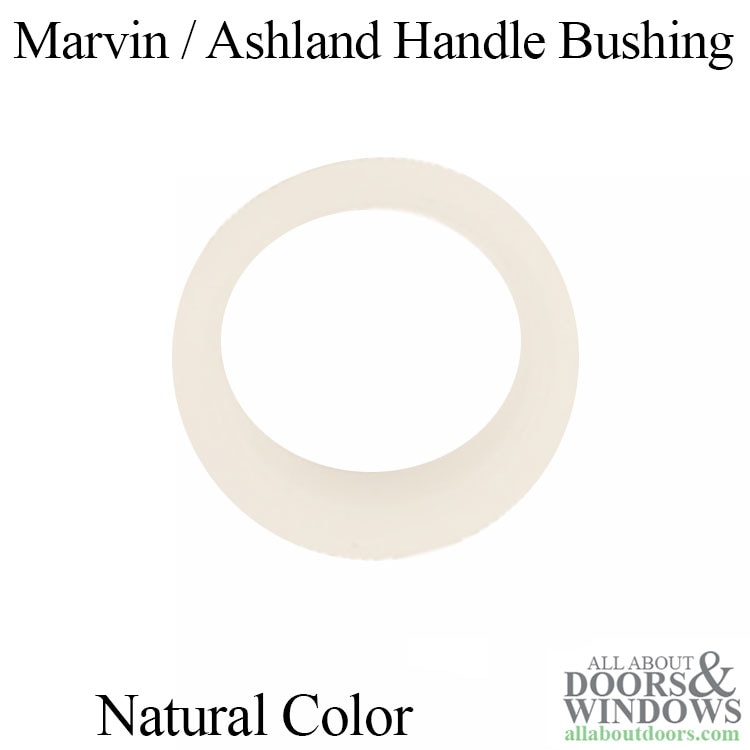

395027 - Handle Bushing, Plated Trim
395028 - Handle Extension 3/4 length
395029 - Handle Extension 3/8 length

Related Tailpieces
395033: 1-1/2 inch length, fits 1-3/4 inch thick doors
395034: 2 inch length, fits 2-1/4 inch thick doors
14287: 2-3/8 inch length, 1/8" break off points fits doors up to 2-1/4 inch
9-C0975-90-0-6: 3-3/8 inch length, doors up to 3-1/2 inch thick
