Replacement Cylinder Tail Piece with break off tabs

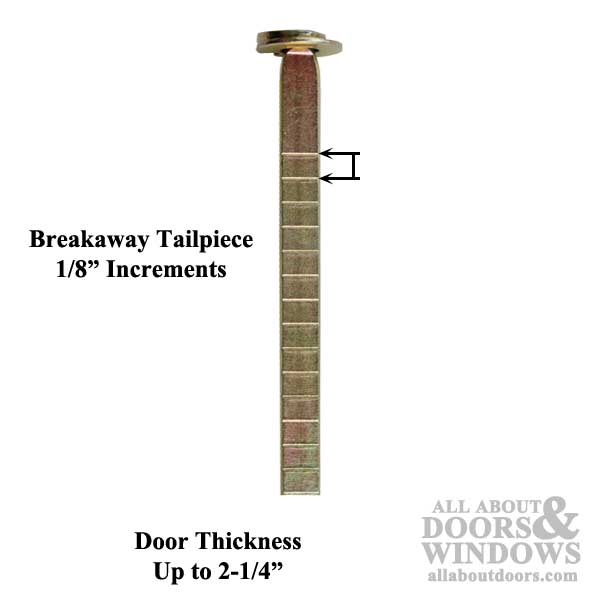

This item has 14 break away score marks at 1/8 inch increments for thinner doors up to 2-1/4 inches thick.
Door Thickness: Varies, up to 2-1/4 inch (57 mm)

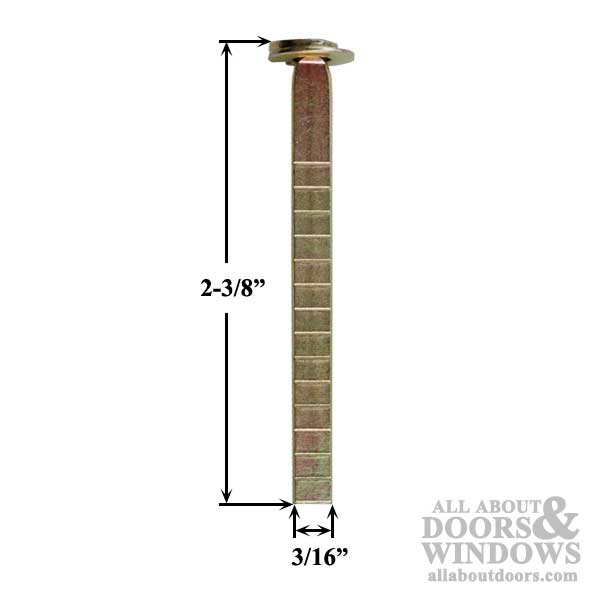

Length: 2-3/8 inch (60 mm)

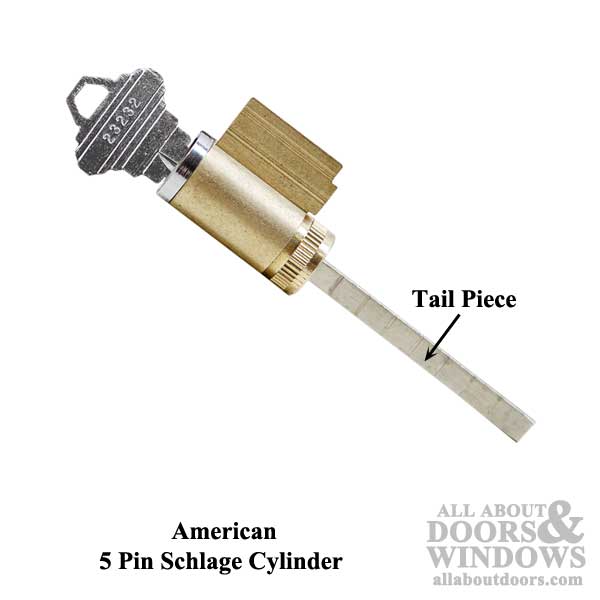

Application: American Keyed Cylinders with Flat Tail Piece
Installation of Tail Piece:
Cylinder cap screws off for easy replacement.
1. Remove key from cylinder
2. Depress Pin and unscrew cap. The cylinder has a spring loaded pin that needs to be pushed down to unscrew cap, be careful not to lose the spring or pin
3. Switch the existing tail piece with the replacement
4. Place cap back in place, and screw on until the spring loaded pin catches a groove in cap.
5. Depress pin and screw all the way down, then back 2 notches in cap.
Note on tightening down cap.
A. If key turns hard, the cap is to tight.
B. If the key will not come out, the cap is too loose.
Related Tailpieces
395033: 1-1/2 inch length, fits 1-3/4 inch thick doors
395034: 2 inch length, fits 2-1/4 inch thick doors
14287: 2-3/8 inch length, 1/8" break off points fits doors up to 2-1/4 inch
9-C0975-90-0-6: 3-3/8 inch length, doors up to 3-1/2 inch thick
