Andersen / Emco Single Point Mortise Lock - NOT AVAILABLE

Part Number: 306200
Replace with 302045

This product has been discontinued and is no longer available

This part has been discontinued and can be replaced with 302045 (uses the same mortise lock that this set did)

This is a Single Point Mortise Lock used on Andersen / Emco storm doors.
It uses a Euro style profile key cylinder 302054 or 302055 (not included)

Was available in 3 colors: Polished Brass, Brushed/Satin Nickel and Oil Rubbed Bronze

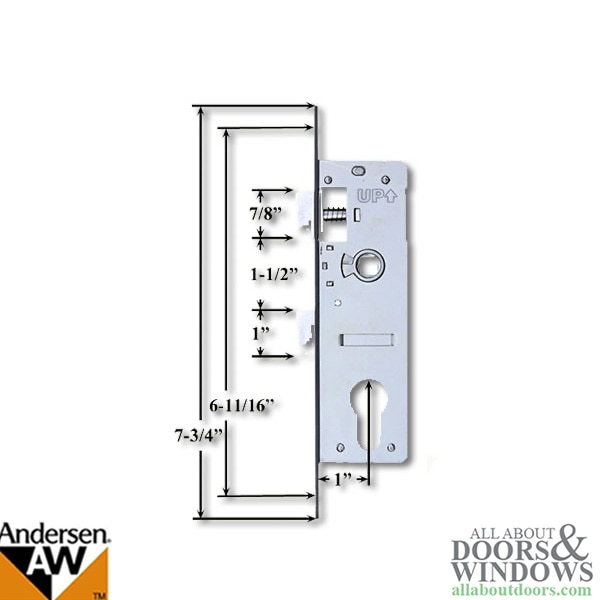

Mortise Lock Measurements:
Backset: 1 inch. Mortise lock body (standard is 7/8")
Backset is measured from edge of mortise lock to center of handle
Mounting screw holes: spaced 6-11/16 Inch
Faceplate Length: 7-3/4"
Faceplate Width: 7/8" (20mm)
Door Thickness: 1-1/4" to 1-1/2"

Kit Includes:
1 single point mortise lock
installation screws and/or bolts

NOTE:
This mortise lock will only work on doors with the above measurements.
To purchase this Mortise Lock as a complete kit, see here.
Oil rubbed bronze finish is a "living" finish that will change with time and use. Over time, handling and frequent use create the bronze patina that is the hallmark of the oil-rubbed bronze finish.

Details on Andersen's Oil Rubbed Bronze and Distressed Bronze Finishes
