Special 1 inch Backset with special Off center cylinder
Handle can be used on Andersen 3000 & 4000 Series storm doors with a mortise lock and/or multipoint lock.
Euro-Style Profile Cylinder: Off-Center
Cylinder Type: offset tail piece

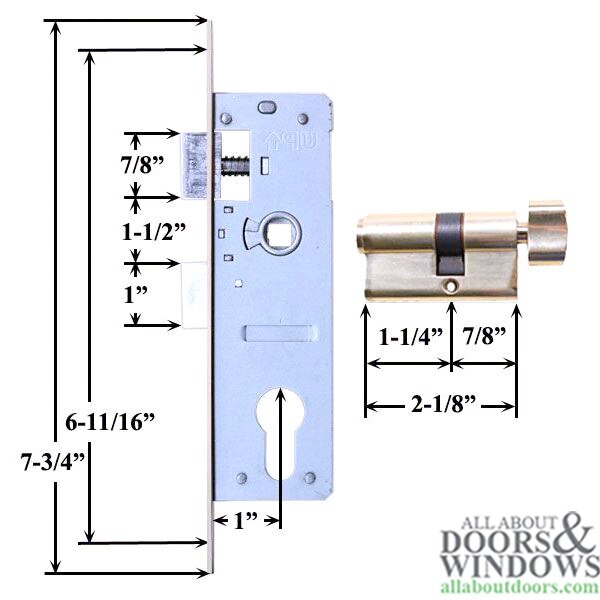

Overall length: 2-1/8 (55mm)
Inside Measurement: 1-1/4 (32mm) to screw hole
Outside Measurement: 7/8 inch (22mm) to screw hole
Keyway: Kwikset 5 pin, KW1 Rekeyable, 2 keys
Mortise Lock Measurements:
Backset: 1 inch. Mortise lock body (standard is 7/8)
Backset is measured from edge of mortise lock to center of handle
Trim plate mounting screw holes: spaced 6-11/16 Inch
Door Thickness: 1-1/2 inch
Handle Style: Traditional
Handle Diameter Hole: 9/16 inch (standard 5/8 inch)
Handle Spindle: 5/16 Square, 3-1/4 Length

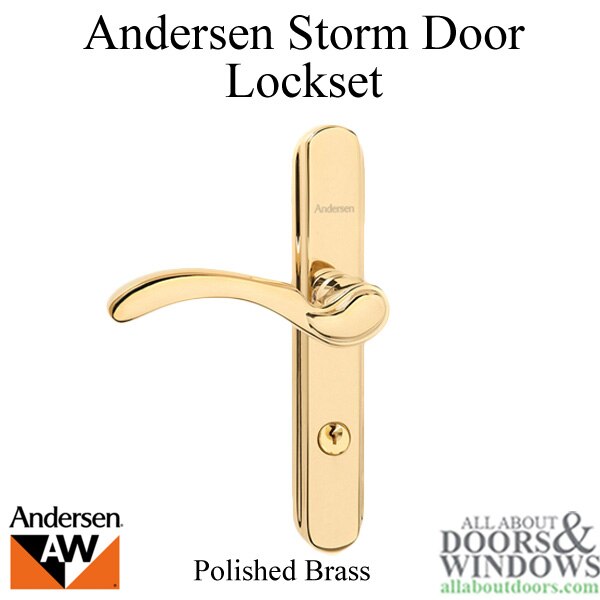

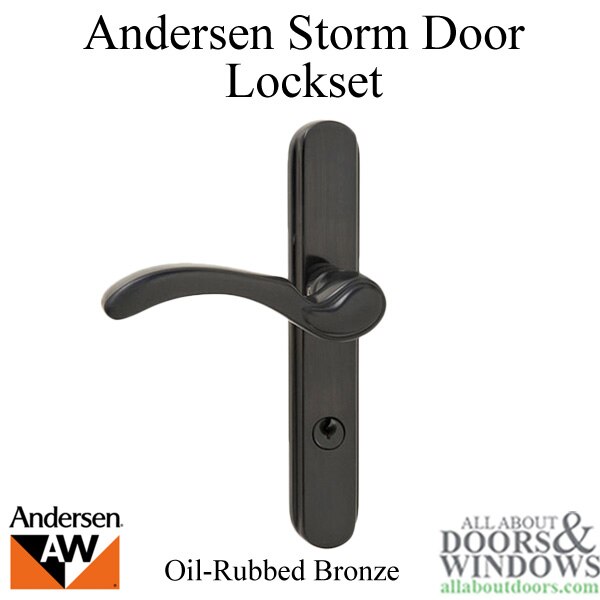

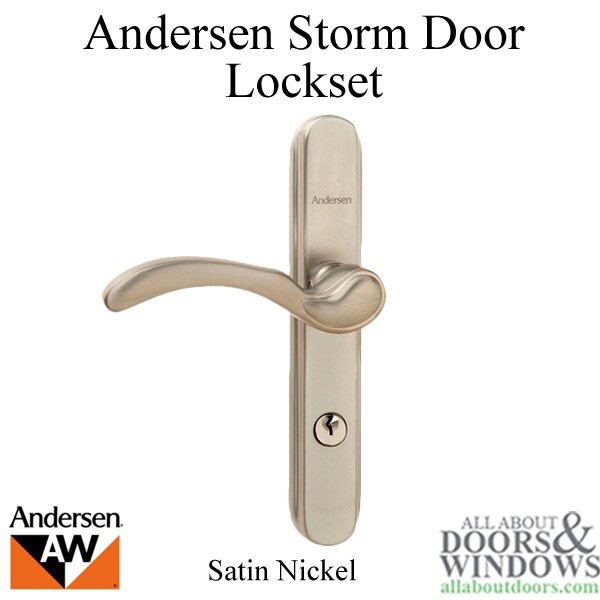

Color / Finish: Brushed/Satin Nickel, Polished Brass or Oil Rubbed Bronze
This Lock will work only on doors with these measurements,
Style might be different than current lock. Old Style had a round hole for outside plate. (discontinued)
To reverse the handing of the Mortise Lock, simply remove the Faceplate and rotate the Spring Latch 180 degrees, then reconnect the faceplate.

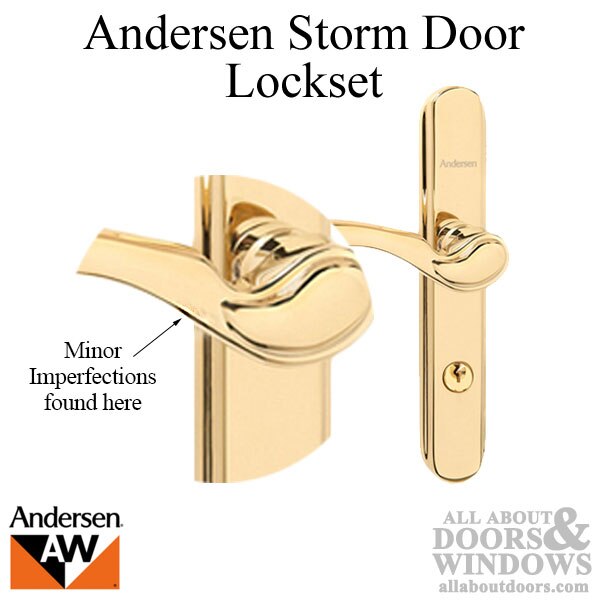

*Due to manufacturer packaging, small imperfections may be seen on levers. Can not be returned due to these imperfections.
Andersen / Emco Quick Change storm door mortise lock hardware with Lock bar uses 302047Details on Andersen's Oil Rubbed Bronze and Distressed Bronze Finishes
