Use the arrows or swipe left to view all images for this product


Andersen Auxiliary Foot Bolt Lock for Frenchwood Sliding Door Black

Part Number: 9007625
Price: $40.72
Andersen auxiliary foot bolt lock for frenchwood gliding door in black.
This part is commonly referred to as a \'foot\' lock and is installed to the active panel.
When depressed a pin is engaged into the door track allowing for additional security.
This lock mounts to the bottom of the active door panel and allows for partial ventilation when the door is open.

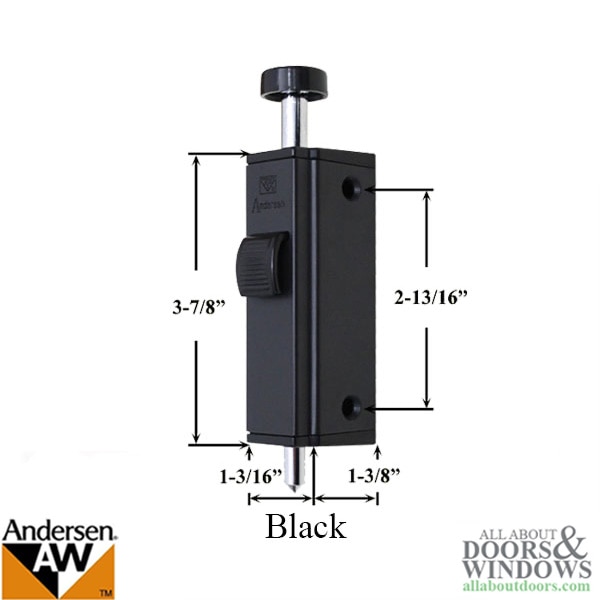

Height: 3-7/8 Inch
Length: 1-3/8 Inch
Width: 1-3/16 Inch
Hole Center: 2-13/16 Inch
Color: Black

Works With:
200 Series Narroline Gliding
200 Series Perma-Shield Gliding
400 Series Frenchwood Gliding

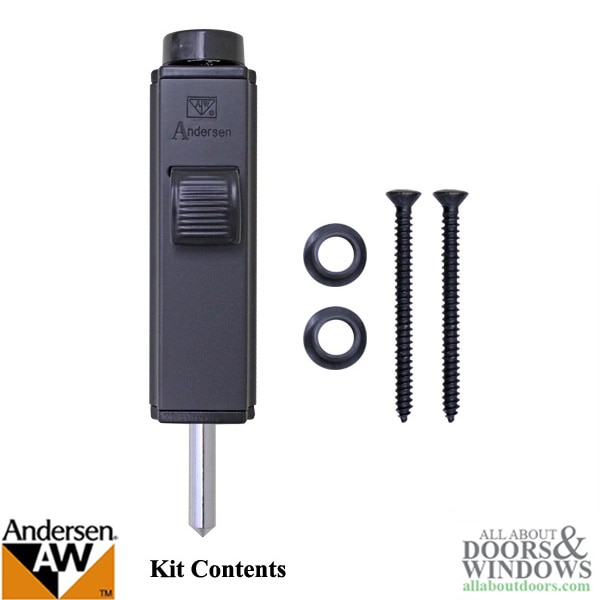

Contents: 1 Foot Bolt, 2 Grommets and 2 Installation Screws

Priced and sold each.

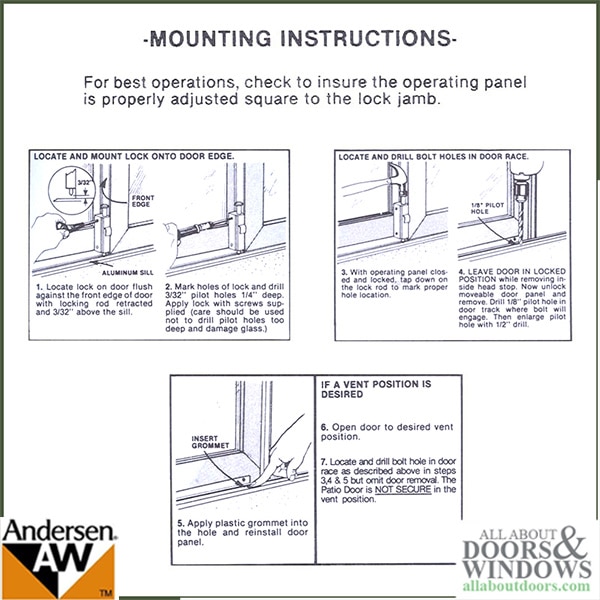

Andersen Footbolt Installation

Related Andersen Parts:
1997220 - Stone

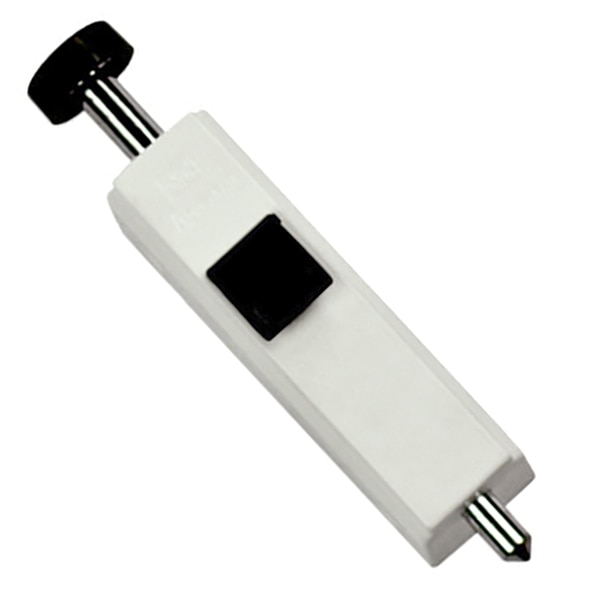

1997301 - White
2565707- Polished Chrome
2565710 - Polished/Bright Brass
2565718 - Antique Brass
2573187 - Distressed Bronze
2579426 -  Satin Nickel
2579955 - Oil Rubbed Bronze
2579956 -  Brushed Chrome
9007624 - Gold Dust
2573188 -  Distressed Nickel
