Andersen Albany Style Door Handles Hinged Door Hardware Set Double Active Black

Andersen Albany Style Hinged Door Hardware

Double Active/Passive - Black

Works with 400 Series Frenchwood hinged (in-swing and out-swing) patio doors manufactured from 1988–present.

Andersen hinged patio door hardware set is for a (double active) hinged door in which two doors will open.

Works on active and passive door panels.

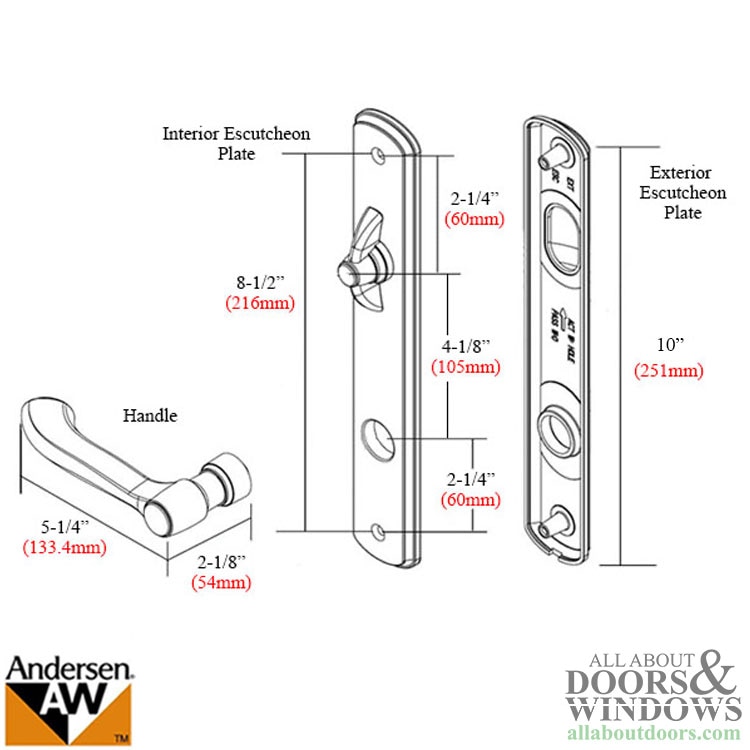

Measurements:

• Color/Finish: Black
• Plate Width: 1-5/8 inch (41.25 mm)
• Plate Length: 10 inch (254 mm)
• Handle Neck/Depth: 2-1/8 inch (54 mm)
• Handle Length: 5-1/4 inch (133.4 mm)
• PZ (Distance from center-of-cylinder to center-of-spindle): 4-1/8 inch (105 mm)
• Top screw hole to center-of-cylinder: 2-1/4 inch (57 mm)
• Bottom screw hole to center-of-spindle: 2-1/4 inch (57 mm)
• Top screw hole to bottom screw hole: 8-1/2 inch (219 mm)

Complete hardware trim set includes:

• Inside and outside handles
• Inside and outside escutcheon plates
• Inside thumb latch lock
• Mounting studs
• Mounting bolts
• Gasket
• Spindle
• Set screws
• Bushings
• Installation instructions.

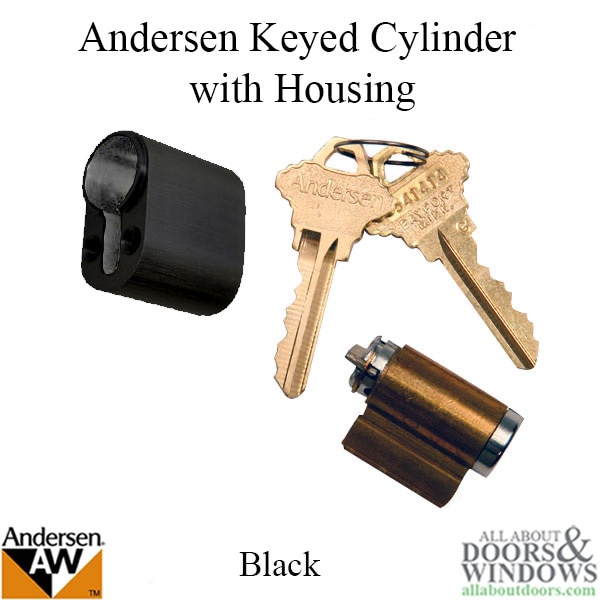

Note: Exterior Keyed Lock 9007623 is sold separately. (Lock/unlock the door from outside with a key)

Guide: How to replace an Andersen dummy cylinder with a keyed cylinder.
