Aluminum Locinox Brackets to Mount Tiger Gate Closer to Chain Link Fence

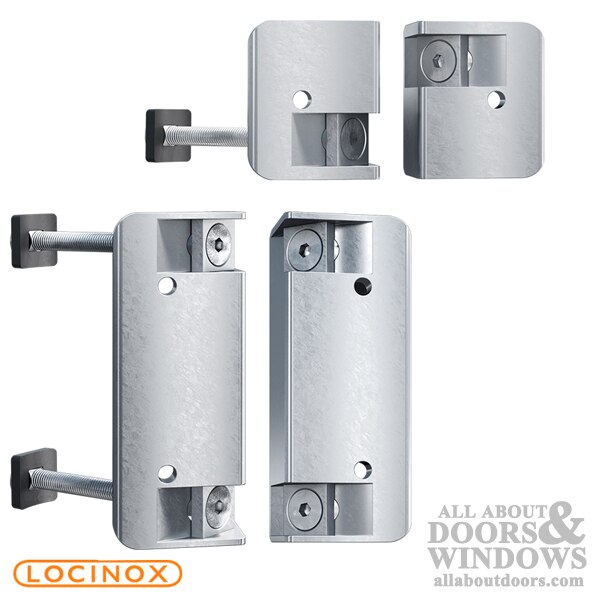

Aluminum anodized assembly bracket to mount Tiger Gate Closer to chain link fence
Specifications:

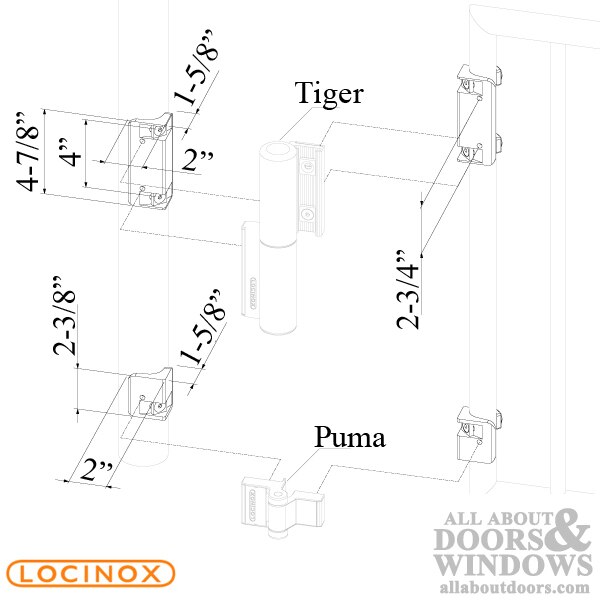

For use with posts 1-7/8" - 4" in diameter
For use with gates with 1-3/8" - 1-7/8" diameter profile
Accommodates gap from 1-1/16" - 1-11/16"
Includes brackets for the puma hinge (included with Tiger closer), all installation hardware and drilling jig
Resources
PDF: Installation Instructions (includes drawings)
Video: How to install Tiger Gate Closer on a chain link fence
