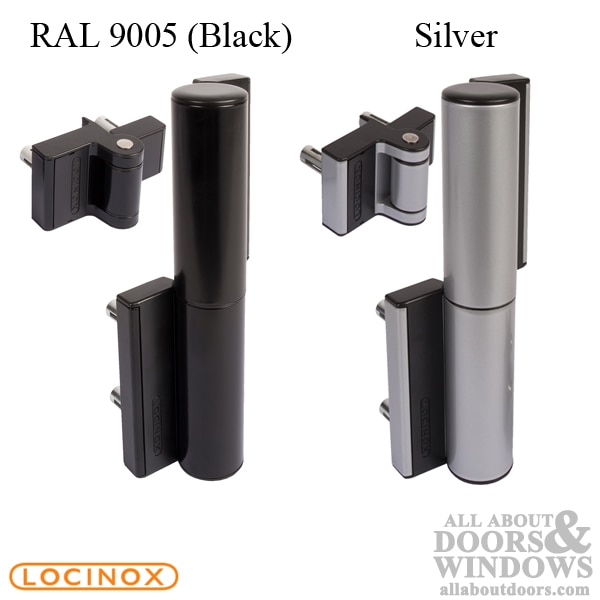

Locinox Tiger Hydraulic Gate Closer and Hinge for Gates Up to 165 Pounds - Choose Color

Part Number: TIGER
Price: $514.32
180° Self-closing Tiger Hydraulic Gate Hinge with Adjustable Speed and Final Snap

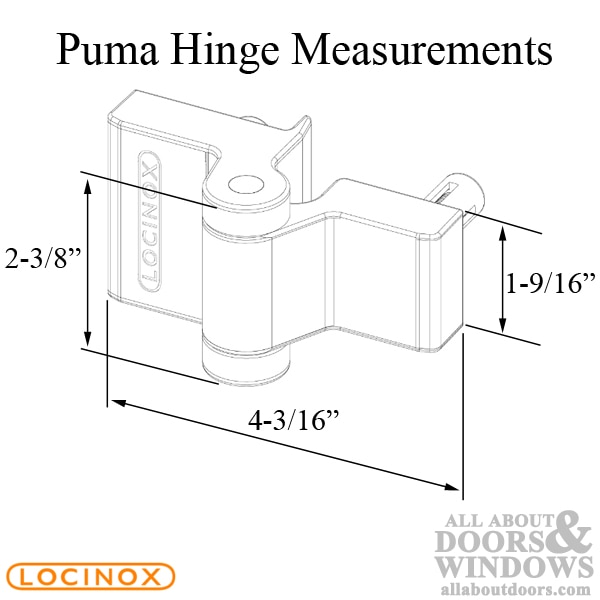

Includes adjustable surface-mounted Puma hinge

Manufactured by Locinox

180° range of closure
5/8” horizontal adjustability
3/4” vertical adjustability
Max 10.32 lb-ft.
For gates up to 165 lbs and 4 feet wide

Automatic 180° closure
Reversible: can be used on right- or left-handed gates
Weather-proof: aluminum powder coating allows for top functionality in any conditions, including temperatures ranging from -22° F to 158° F
3-Year warranty provided by Locinox

Related Parts:
Jig tool to simplify installation of the TIGER gate closer: TIGERDRILL
Bracket to mount TIGER closer on chain link fence: TIGERBRACKET

PDF: Installation Instructions
Video: Installation Instructions

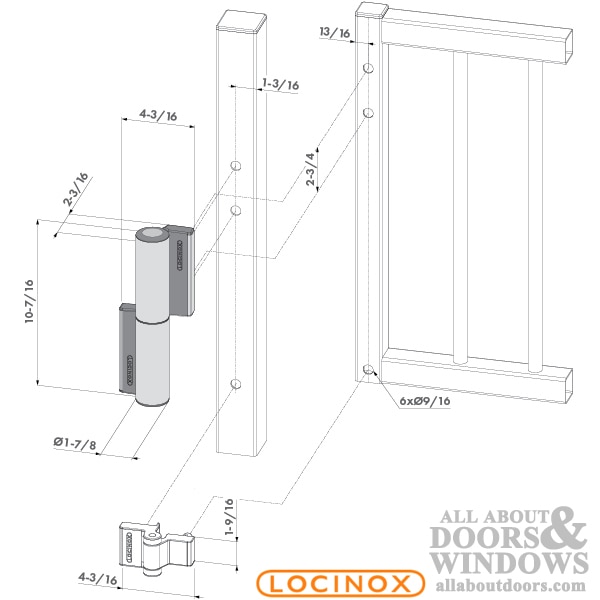

Drawing: Technical Drawing
