Fuhr Sliding Patio Door Handle Active L Handle 574 392 Screw Hole Pattern Choose Color

Fuhr Sliding Patio Door Handle Set, L Type, Active

Hoppe/Fuhr L-type handle for active sliding patio doors with keyed cylinder.
Used with Fuhr/HOPPE multipoint sliding door lock with 3 hooks.

Handle Design: 574, L-Shape

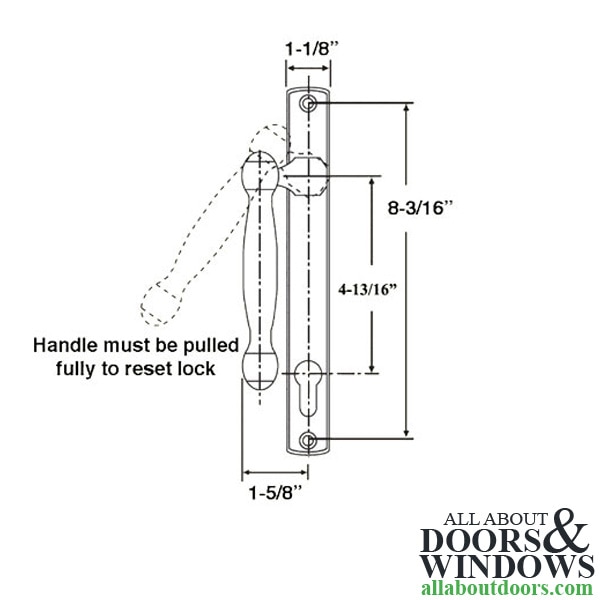

FUHR MASSIV 392 backplate screw hole pattern: 8-3/16 inches

Markings on Plate: M392N
Plate Width: 1-1/8 inch ( 28 mm)
Plate Height: 8-7/8 inch (225 mm)
Door Thickness: 1-3/4 inch (45 mm) thick doors
PZ: 4.72 inch (120mm) This is the distance between the center of the spindle hole and the center of the cylinder hole.
Key Cylinder Keyway: Schlage 5 pin, SC1
Non-Handed (doesn't matter which direction your door slides)

Available Finishes:
Polished Brass
Brushed/Satin Chrome
Oil Rubbed Brass
Antique Brass

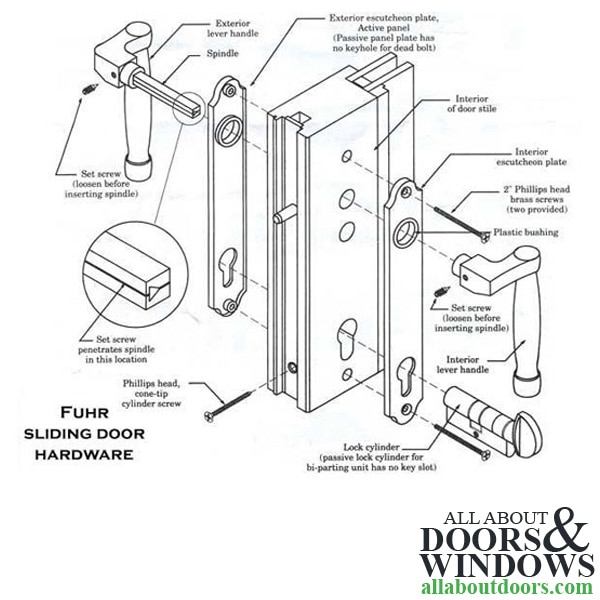

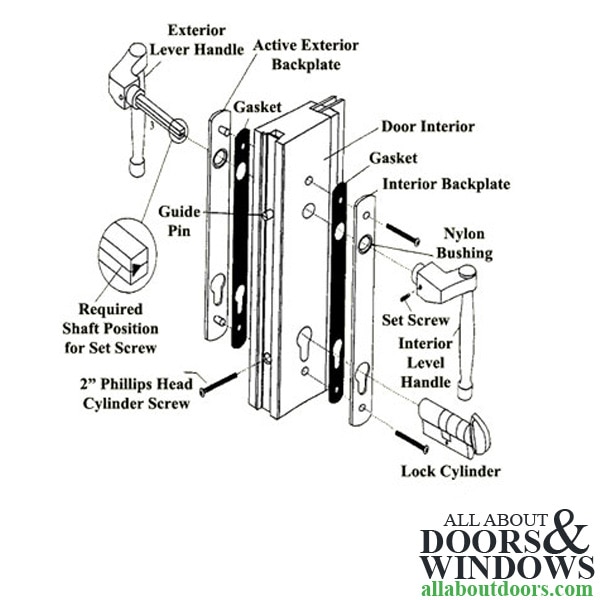

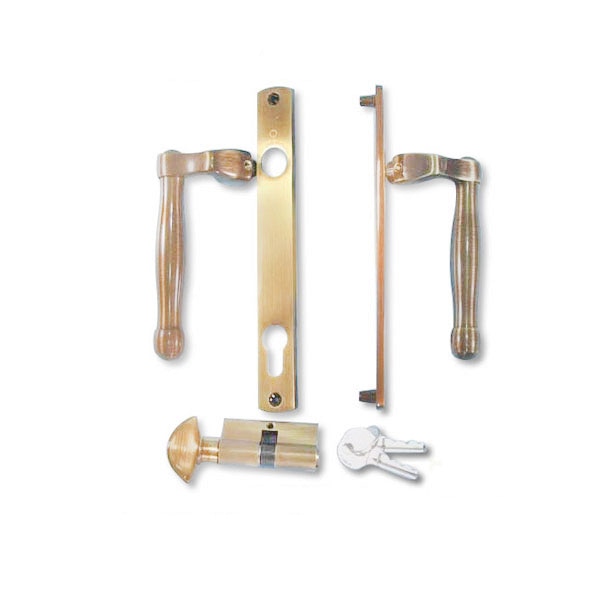

Includes inside/outside handles, escutcheon plates, spindle, screws
and 360 degree keyed profile cylinder, 2 keys.

Priced and sold as a package

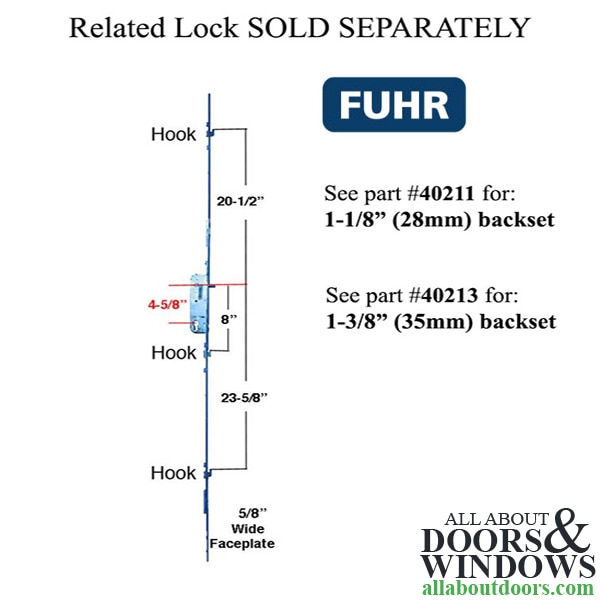

Related Fuhr Sliding door Hardware:
40211 - Fuhr Sliding Door Multipoint Lock, 3 Hooks, 28 mm Backset
40213 - Fuhr Sliding Door Multipoint Lock, 3 Hooks, 35 mm Backset


Guide: Installing Fuhr Sliding Door Hardware
