Active Handle Set 400B Right Hand Cambridge Multipoint Lock Trim
Active Handle Set 400B Right Hand Cambridge Multipoint Lock Trim
IMPORTANT NOTE: Non-Stock handle sets have a 90 day lead time.
Call the office for availability prior to placing your order.

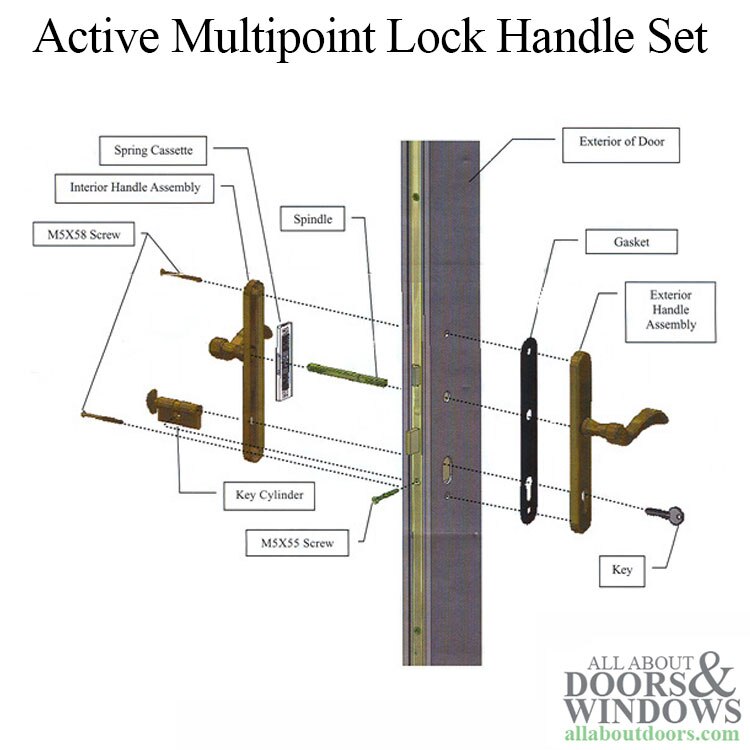

Amesbury Active Keyed Hardware for primary active door with multipoint lock.
This Lock Trim replaces Integrity by Marvin Cambridge series, Milgard, G-U / Ferco, and other American version multi-point locks.
Application: Primary door, keyed with inside thumb turn, works with most Multipoint Locks
Amesbury 400B Series curved lever with rounded radius top escutcheon plate
Base Material: Brass
Door thickness: 1-3/4 inch

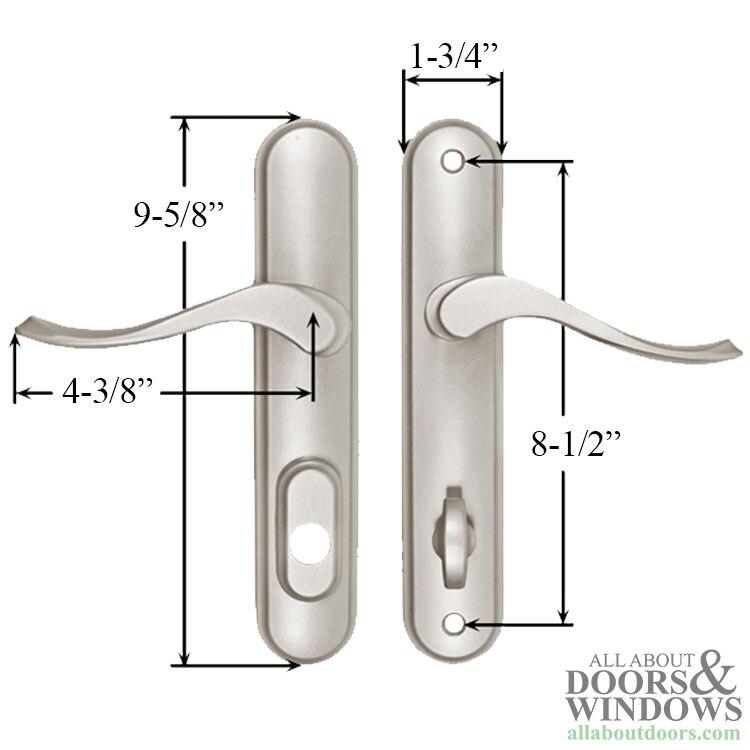

Escutcheon Plate Length: 9-5/8"
Escutcheon Plate Width: 1-¾"
Escutcheon Plate Screw hole spacing: 8-½"
Installation screws: M5 x 58mm
Spindle Diameter: 5/16 inch (8mm) Square
Cylinder to Handle spacing: 3-5/8 inches (92mm)
Keyed Cylinder: American 5 pin rekeyable cylinder
Standard Keyway: Schlage 5 pin, SC1
Optional Keyway: Kwikset - Weiser composite keyway
Handed: Right Hand, But handles can be removed and reattached.
Levers do not have handle set screws. It uses a snap ring to hold handles to the escutcheon plate.
This handle set offers a spring loaded cassette for added lever action.
Color / Finish:
PVD Satin Nickel US15

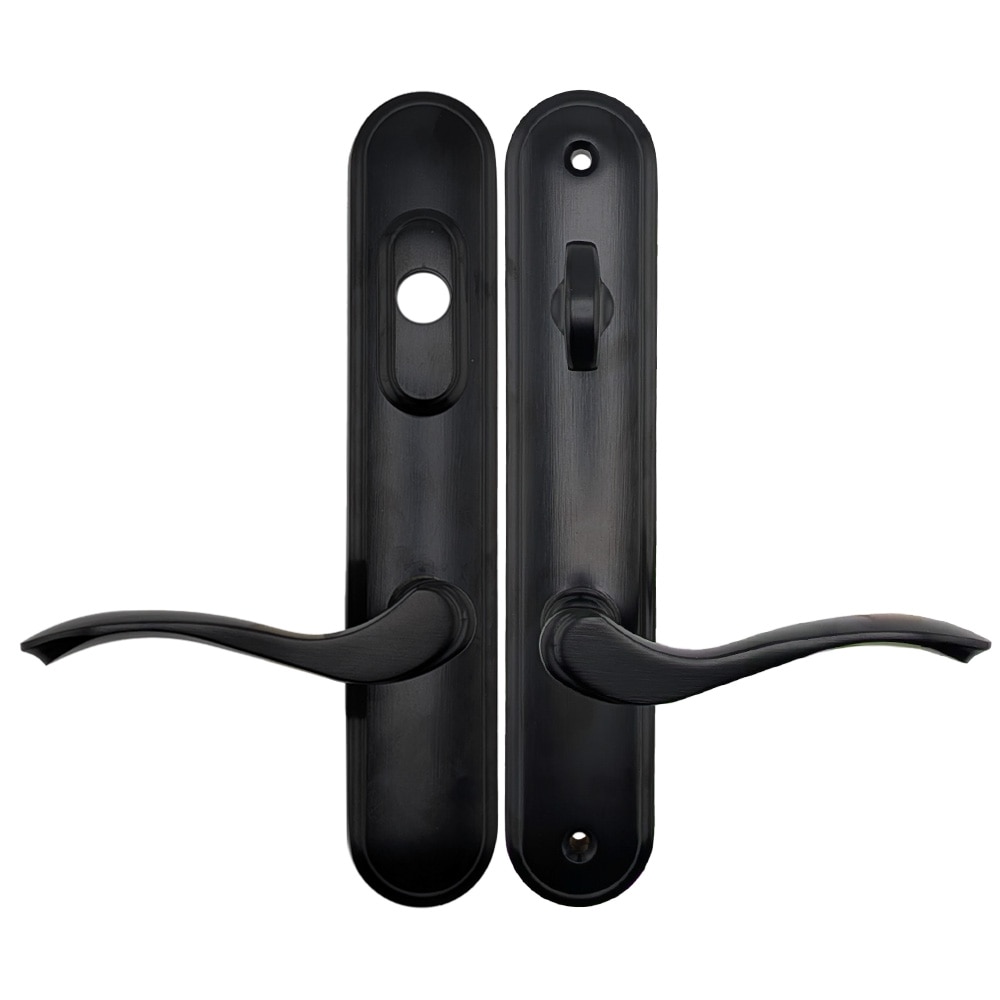

Oil Rubbed Bronze (currently has a 90 day lead time)
See additional information tab for notes and available functions.
Available in 3 Functions:
Active: Key cylinder and inside thumb turn
Inactive / Passive: levers move, no key, no inside thumb turn
Dummy: Fixed / rigid levers, no key, no thumb turns
Single Door = 1 Active Keyed
Double French Door = 1 Active Keyed and 1 Inactive or Dummy Set
NOTE:
Some colors / finishes are available with a zinc or forged brass substrate to provide economical and performance options.
Zinc material: Painted Colors, White, Tan, Dark Oil Rubbed Bronze, Polished Brass or Satin Nickel
Brass material: Premium Finishes, Dark Oil Rubbed Bronze , PVD Polished Brass or PVD Satin Nickel
Brass is a better material for coastal areas, PVD is a No Tarnish Finish
