Active Handleset 400B Left Hand Multipoint Lock Trim Zinc Base

IMPORTANT NOTE: Non-Stock handle sets have a 90 day lead time.
Call the office for availability prior to placing your order.

Amesbury keyed Hardware for primary active door with a multipoint lock.

This Lock Trim replaces Integrity by Marvin Cambridge series, Milgard, G-U / Ferco, and other American version multi-point locks.

Application: Primary door, keyed with inside thumb turn, works with most Multipoint Locks

Amesbury 400B Series curved lever with rounded radius top escutcheon plate

Color / Finish: Choose from Drop down box

Base Material: Zinc

Door thickness: 1-3/4 inch

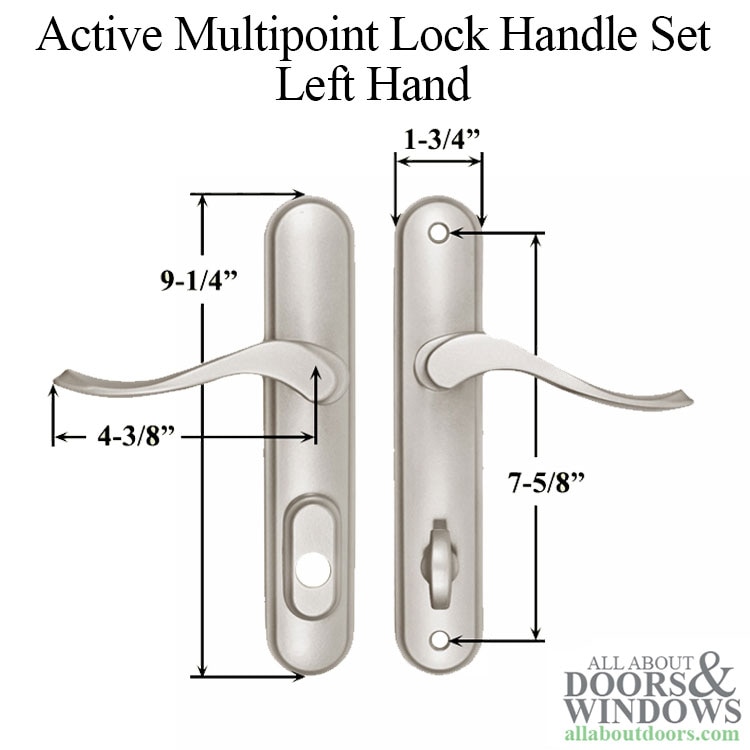

Escutcheon Plate: "B" 1.80" x 9.25"

Escutcheon Plate Screw hole spacing: 7.665 inches

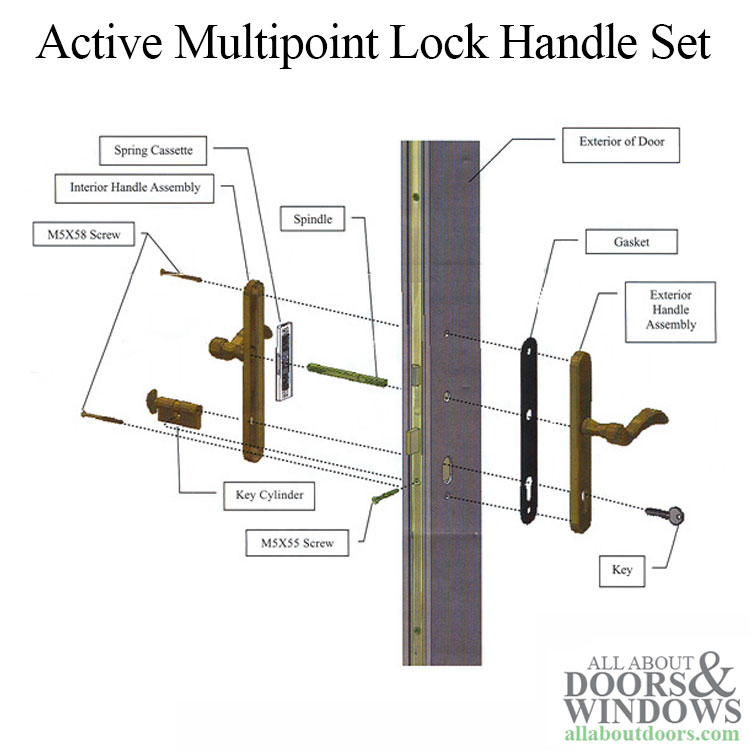

Installation screws: M5 x 58mm

Spindle Diameter: 5/16 inch (8mm) Square

Cylinder to Handle spacing: 3-5/8 inches ( 92mm)

Keyed Cylinder: American 5 pin rekeyable cylinder

Standard Keyway: Schlage 5 pin, SC1

Optional Keyway: Kwikset - Weiser composite keyway

Handed: Yes, But handles can be removed and reattached.

Levers do not have handle set screws. It uses a snap ring to hold handles to the escutcheon plate.

This handle set uses a spring loaded cassette for added lever action.

Brass is a better material for coastal areas, PVD is a No Tarnish Finish.

See additional information tab for functions, colors, finishes and notes.

Available in 3 Functions:

Active: Key cylinder and inside thumb turn

Inactive / Passive: levers move, no key, no inside thumb turn

Dummy: Fixed / rigid levers, no key, no thumb turns

Single Door = 1 Active Keyed

Double French Door = 1 Active Keyed and 1 Inactive or Dummy Set

NOTE:

Some colors / finishes are available with a zinc or forged brass substrate to provide economical and performance options.

Zinc material: Painted Colors, White, Tan, Dark Oil Rubbed Bronze, Polished Brass or Satin Nickel

Brass material: Premium Finishes, Dark Oil Rubbed Bronze , PVD Polished Brass or PVD Satin Nickel
