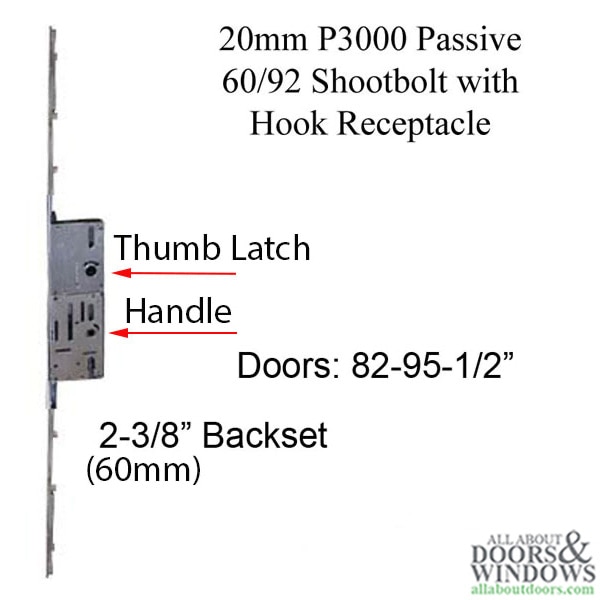

20mm P3000 Passive 60/92 Shootbolt with Hook Receptacle, Doors 82 - 95.5
P3000 Series MPL - Key above Handle - Possible replacement for WInkhaus
OPERATION: Lift handle to extend Shootbolts, turn-key or thumb turn to secure lock
The P3000 SHOOTBOLT has a 1" travel vs .787 for the P2000. The P2000 shoot tip will not work on the P3000.

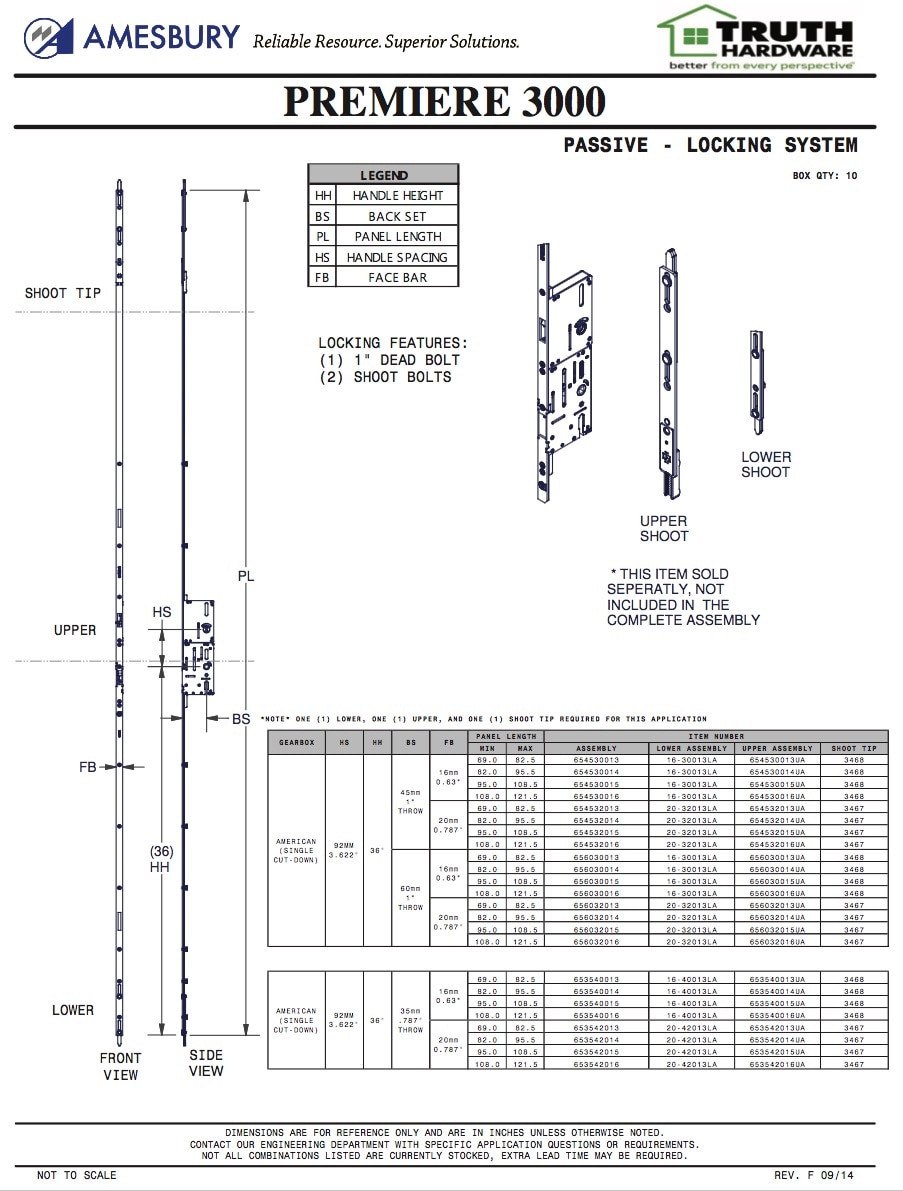

The Premiere 3000 multi-point lock system incorporates an American-style look with the thumb turn oriented above
the handle and the deadbolt operation is independent of the satellite locking points. Available with a multitude of locking
options, this system is the premium solution in today's multi-point locking technology.
Bottom Tongue Position: BT = 26.42
Upper Tongue Position: TT = 26.39
Made of high security stainless steel.
Backset: 2-3/8" (60mm)
Handle PZ: 3-5/8" (92mm)
Door Panel Height: 85" - 95-1/2"
Non handed pull and twist latch bolt with anti slam feature.
Uses handle sets with 3-5/8" (92mm) hole spacing.
Two piece gearbox allows for larger spacing. (center of spindle to center of key cylinder)
Adjustable handle height and overall length for complete customization.
Swing door hardware - Premiere 3000
Active Lock Configurations:
3 Point - 2 Shoots
3 Point - 2 Tongue (no shoots)
3 Point - 2 Rhino Hooks (no shoots)
4 Point - 2 Rhino Hooks, 1 Shoot (upper shoot only)
5 Point - 2 Tongue, 2 Shoots
5 Point - 2 Tongue, 2 Rhino Hooks
Passive Lock Configurations:
2 Shoots
