20mm Manual Gear, 45/92, Tongue at 26.42", 1" Deadbolt Throw

Part Number: 2320948
Price:
$137.83

HOPPE HLS9000 Tongue Version for Active Door Multipoint Lock with Manual Gear and 3/4" ( 20mm) Faceplate

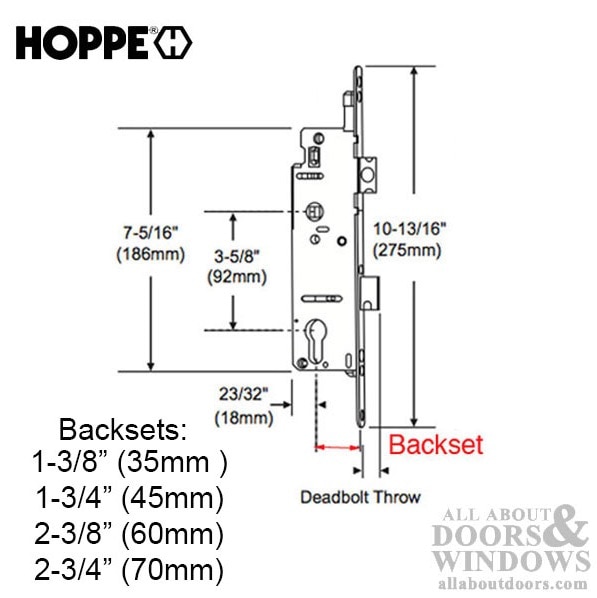

Specifications:

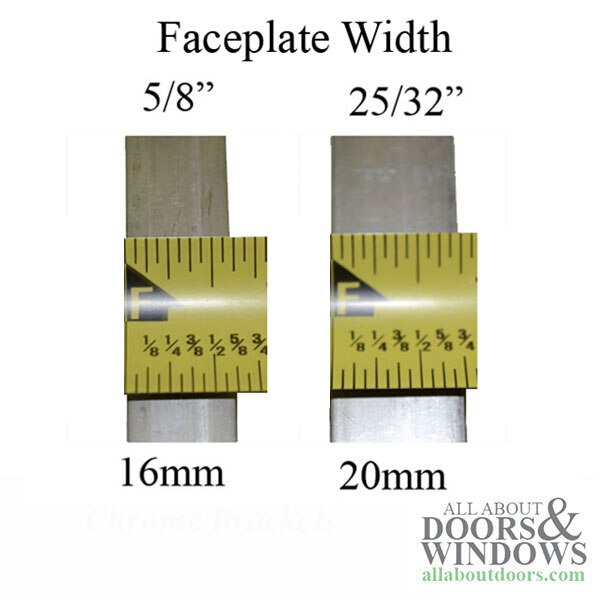

Faceplate Width: 3/4 inch (20mm) 0.78"
Backset: 1-3/4 inch (45mm), 1.77
Deadbolt Throw: 1" (25.4mm)
Handle Height: 36" (914mm)

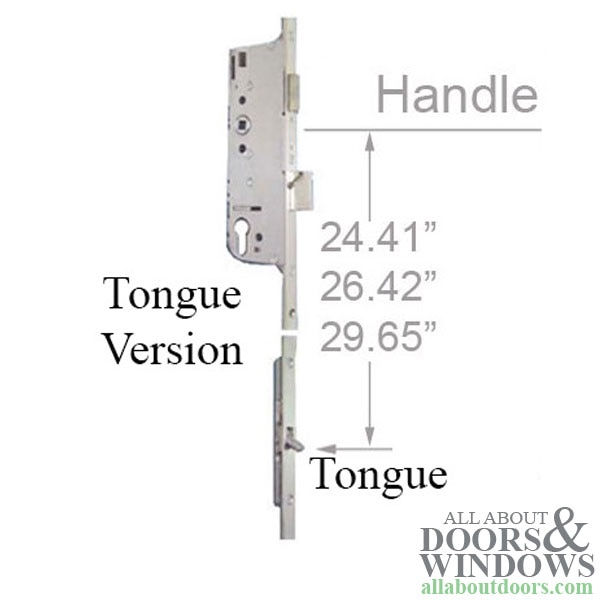

Bottom Tongue Position: 26.42" (671mm)
Maximum Cutoff : 4.53" (115mm)
Number of Screws: 6

Includes: As Shown, Bottom assembly only, does not include additional upper extensions or other components.

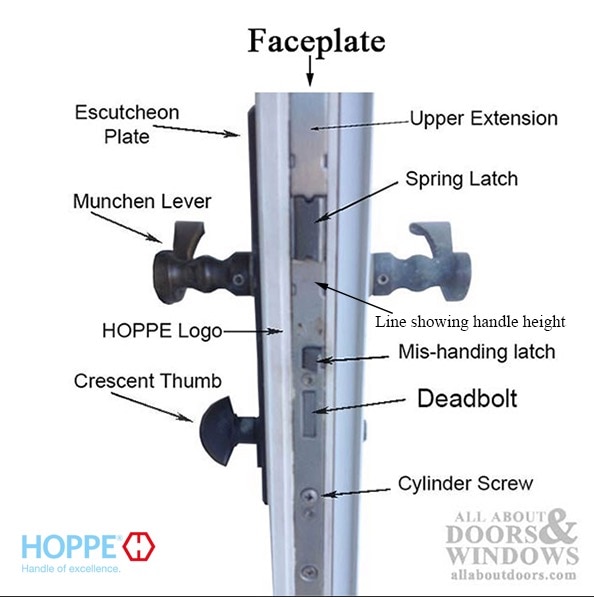

Operation: Manual Function To lock door, Lift handle and then turn thumbturn or Key to extend deadbolt

To unlock door, Turn Thumbturn or key and then depress lever.
