2 Point Double Hook Sliding Door Lock with Face Plate

Part Number: 15186
Price: $29.95
Gemini 2-point Double Hook Sliding door lock with 1/2 inch recessed face plate.
Features anti-slam pin to protect hardware and door; hooks won't engage unless door is closed
Dual point Double Hook Sliding door mortise lock for wood or vinyl doors.

Specifications:
Lock Body: Yellow Di-Chromate Steel
Faceplate: Yellow Di-Chromate Steel

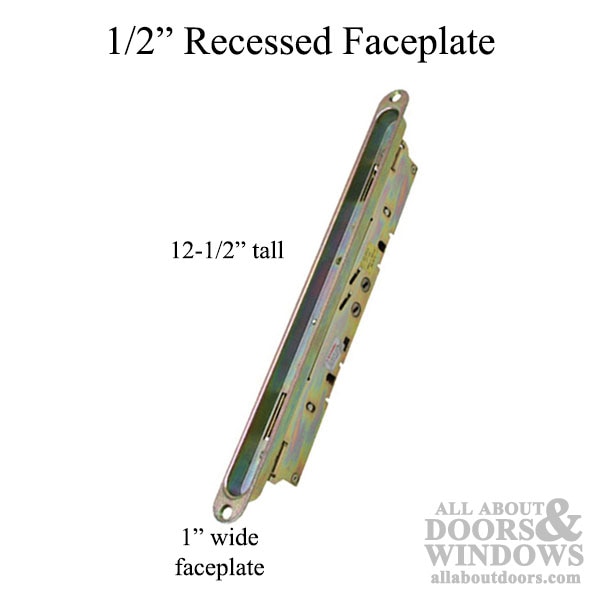

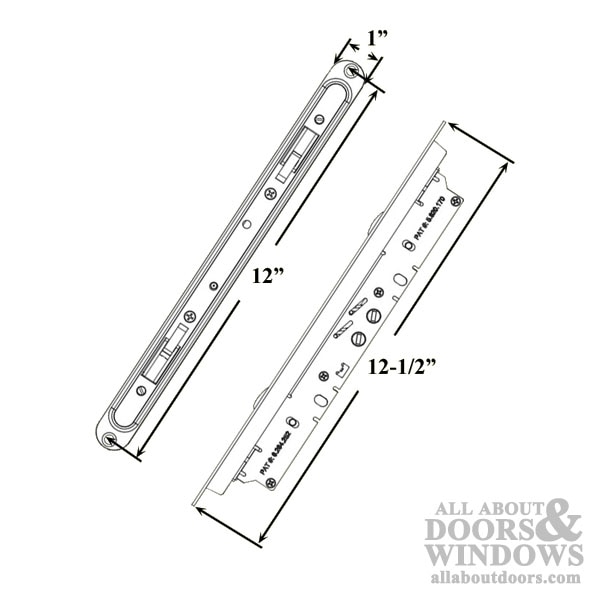

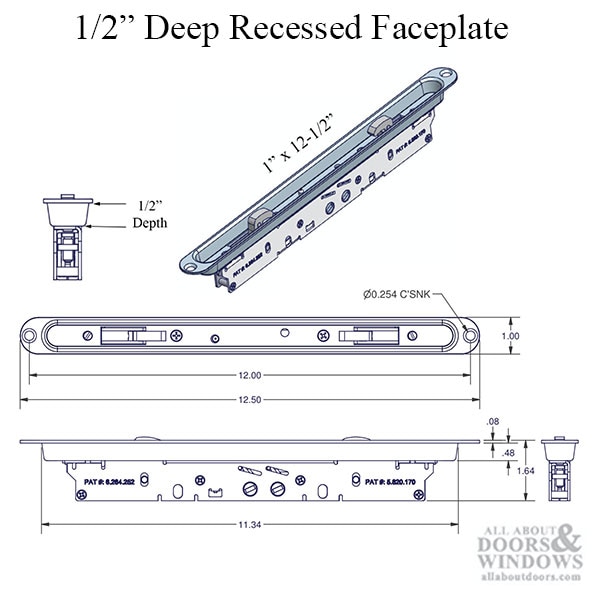

Faceplate Length: 12-1/2 Inches ( 12.50") 317.5mm
Faceplate width: 1 inch (1.00") 25.4mm
Screw Holes: 12 inches ( 12.00") 304.8mm
Depth: 1-5/8 inches ( 1.64" ) 38.86mm
Faceplate Depth: 9/16 ( .56" ) 14.244mm
Recessed area: 1/2 inch ( .48" ) 12.192mm
Trimplate: # 2449
Patent No. 6.264.252 Sash Control, Pat. # 5.820.170
Priced and sold each, No Screws

Please Review additional images:
There are several types of locks that look the same, please compare measurements.

Related Parts;
15163 - Strike, 1/2 inch height
15183 - Double hook lock, No Faceplate
15184 - Double hook lock, 3/4 x 11-1/2" Flat Faceplate
15185 - Double hook lock, 3/4 x 9-3/8" Faceplate
15186 - Double hook lock, 1/2" Recessed Faceplate
15188 - Double hook lock, 3/8" Recessed Faceplate
15207 - Double hook lock, 5/8 x 11-5/8" Flat Faceplate, Outward hooks
