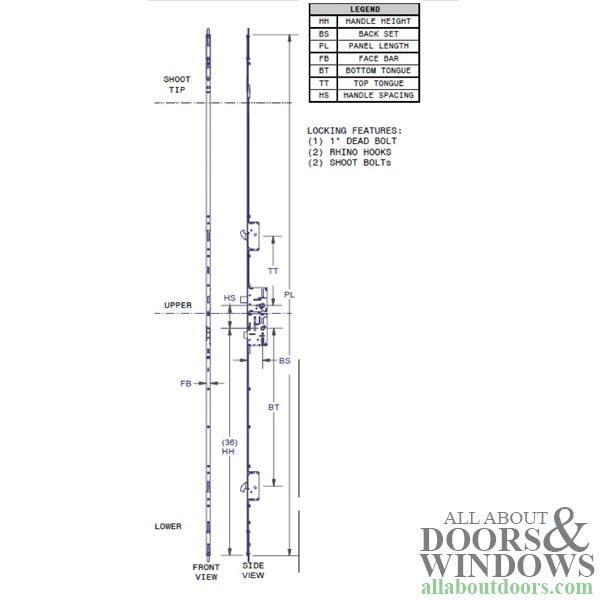

16mm P3000 Passive Upper Assembly 45/92 Shootbolt Upper for Doors 95-108.5"

The passive lock has holes for both the deadbolt and latch, this allow a face to face application and does not require an astragal

This is the UPPER ASSEMBLY  Only - Not Complete

P3000 Series MPL - Key above Handle

Faceplate Width: 5/8" (16mm)
Backset: 1 3/4"
Fits Door Height:  95-108."
Upper Rhino Hook: 53.47"



P3000 Active shootbolt Mechanism - Needs top Shootbolt to complete lock

OPERATION: Lift handle to extend Shootbolts, turn key or thumbturn to secure lock.

The Premiere 3000 multi-point lock system incorporates an American style look with the thumbturn oriented above the handle and the deadbolt operation is independent of the satellite locking points. Available with a multitude of locking options, this system is the premium solution in today's multi-point locking technology.
