Hoppe 16mm Manual Top Extension, Tongue at 29.25", 41.14" Length

Hoppe 16mm Manual Top Extension, Tongue at 29.25", 41.14" Length

Hoppe 16mm Manual Top Extension ONLY, does not include the bottom assembly with Gearbox - 1 of 2 Pieces for a complete lock.

Top Section: Manual Tongue
Faceplate Width: 5/8"(16mm)

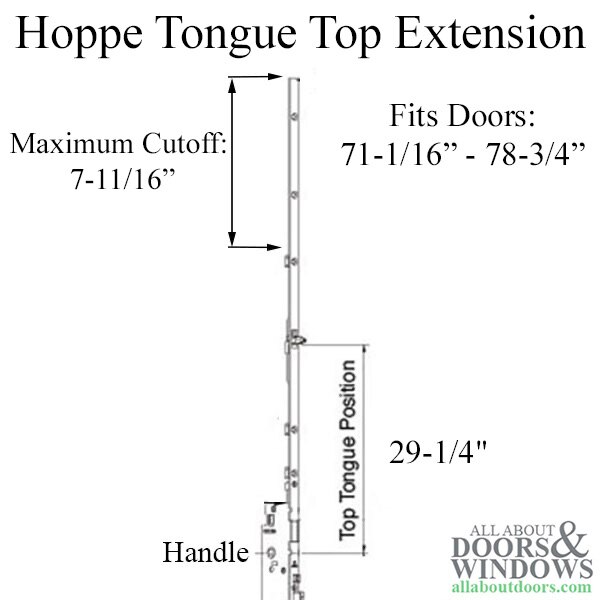

Top Tongue Position: 29-1/4" (743mm) From handle to tongue
Doors: 71-1/16 - 78-3/4" tall ( with 36" handle height)
Extension Length: 41-1/8" (1045mm)
Maximum Cutoff: 7-11/16" (195mm)
Material: Stainless Steel
Number of Screw Holes: 7

Related Parts and Hardware:
8785695 - 1-3/8" (35mm) installation screws

Note: When both Upper and Lower assemblies are connected fits doors from 71-1/16" to 78-3/4" inches tall with 36" handle height. The top may be cut a maximum of 7-11/16" (195mm) inches, to adjust for different door heights.

This is the Top Extension only, does not include the bottom assembly with Gearbox
