16mm Manual Gear, 45/92 Shootbolt, 1" Deadbolt, 35" Handle Height

Part Number: 8787107
Price: $155.00
Hoppe Bottom Gear, HLS9000 Shootbolt Version, Manual Locking for Active Door.

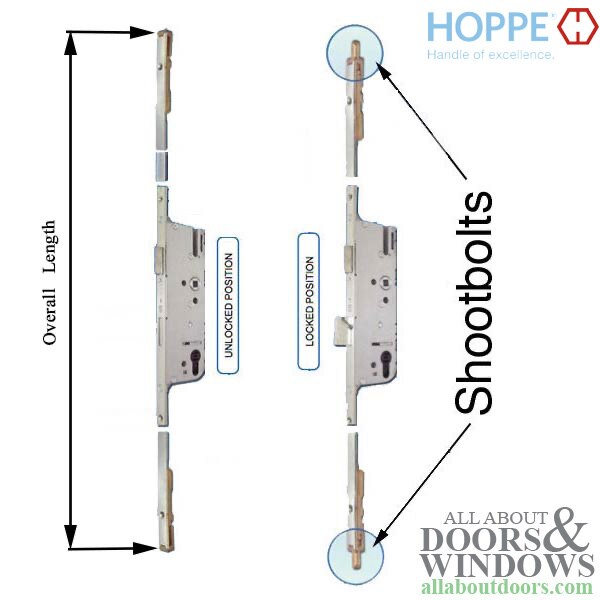

Function: Shootbolt, Vertical locking bolt

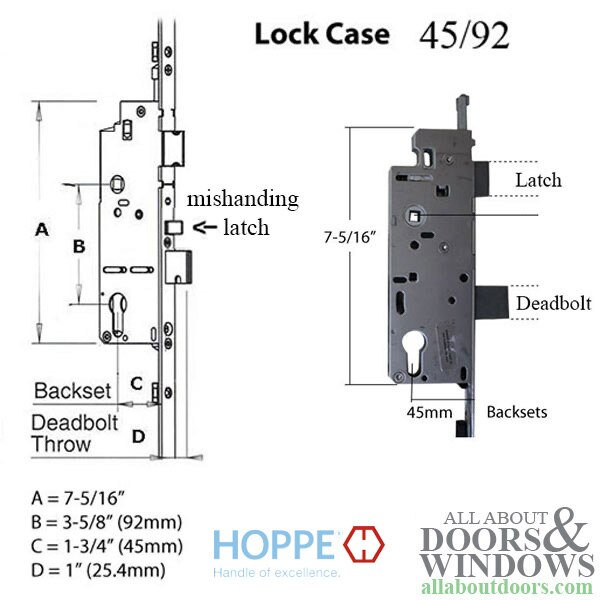

Faceplate Width: 5/8 inch (16mm)
Backset: 1-3/4 inch (45mm)
Deadbolt Throw: 1 inch (25mm)
Handle Height: 35 inch (889mm) - SPECIAL SIZE

Note: This is the 35 inch handle height, if 36 inch is needed, order bottom assembly 8778331
