16mm Manual 35/92 Gear, Tongue @ 24.41", 1" D/B

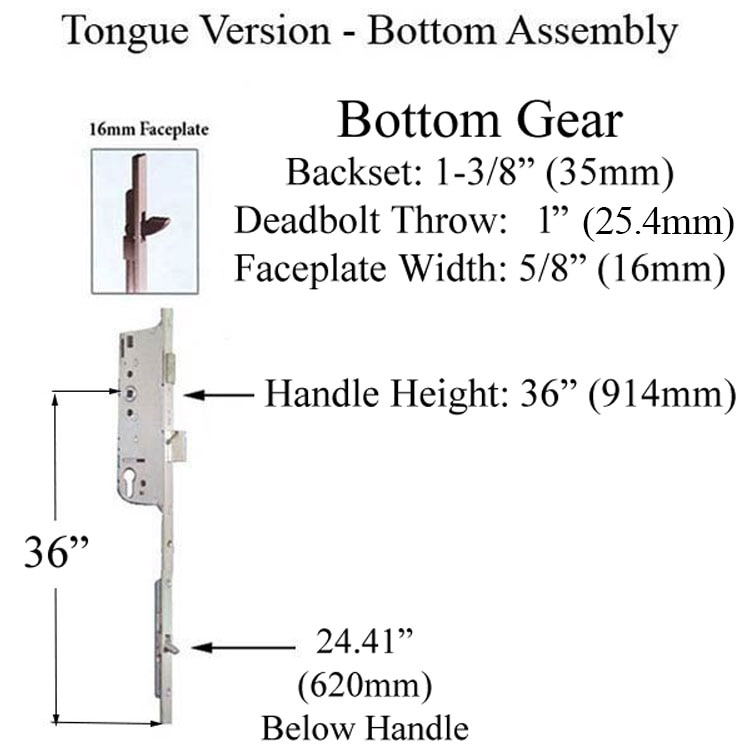

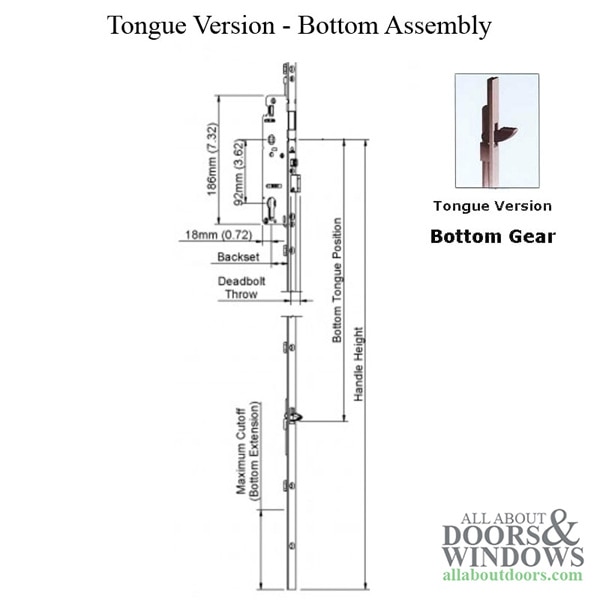

HLS 9000 Multipoint Lock Manual Gear, 90057 Tongue Version for Active Door. HOPPE Manual Tongue Version - 16mm Faceplate
Faceplate: .63 inch (16mm)

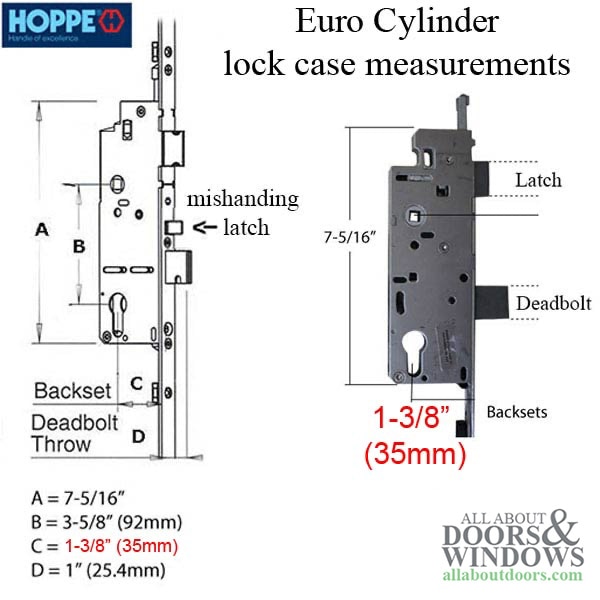

Backset: 1.375 inch (35mm)
Deadbolt Throw: 1 inch (25.4mm)
Handle Height: 36.00 inch (914mm)

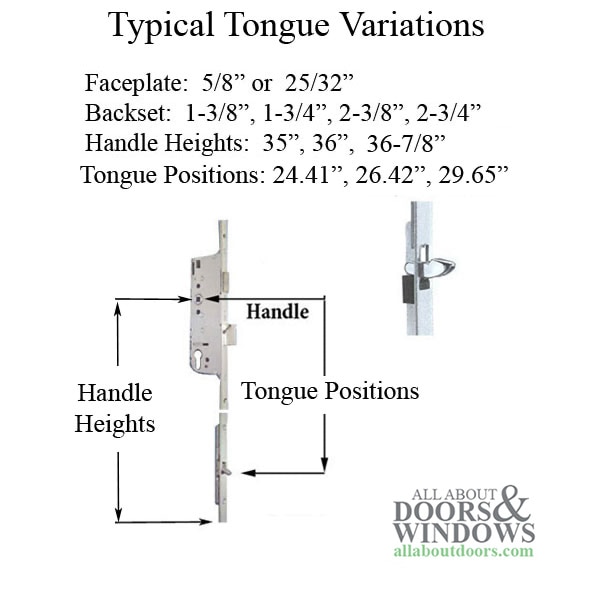

Bottom Tongue Position: 24.41 inches (620mm)
Maximum Cutoff: 6.30 inches (160mm)
Screw Holes: 6
Faceplate: .63 inch (16mm)
Backset: 1.375 inch (35mm)
Deadbolt Throw: 1 inch (25.4mm)
Handle Height: 36.00 inch (914mm)
Bottom Tongue Position: 24.41 inches (620mm)
Maximum Cutoff: 6.30 inches (160mm)
Screw Holes: 6
Related Parts:
2423904 1-3/8 BS, 0.55 D/B, 24.41 Tongue Position
8779123 1-3/4 BS, 1.0 D/B, 24.41 Tongue Position
