16mm Manual Gear, 35/92 Shootbolt, Adjustable Handle Height

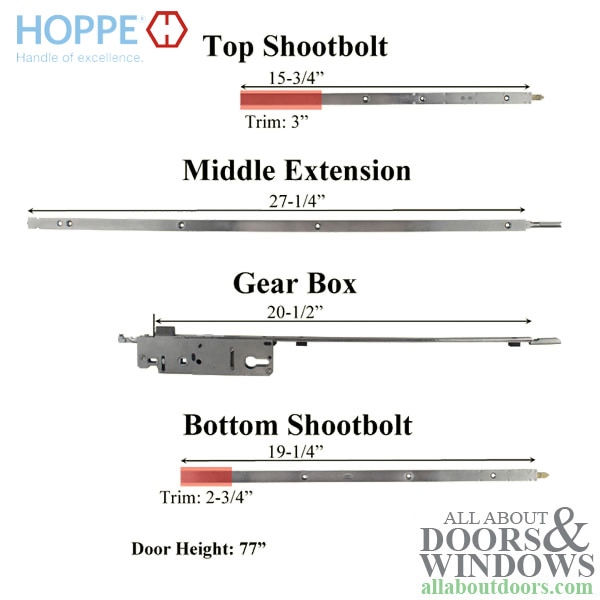

Hoppe's 2-piece bottom shootbolt gear with adjustable handle height

The gear does NOT include the bottom Shootbolt -

Use the TOP extension from the INACTIVE gear page to obtain the desired handle height.

Function: Active Gear,Shootbolt 25mm throw

Faceplate Width: 5/8 inch ( 16mm)

Backset: 1-3/8 inch(35mm)

Deadbolt Throw: 1 inch (25mm) ( Not Available in 1/2" Throw )

Related Hoppe Hardware with Adjustable Handle Heights

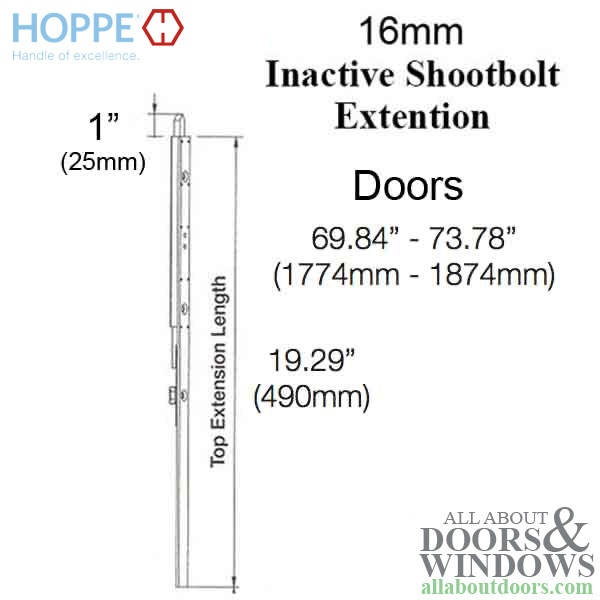

8786975 - Most Common Lower Shootbolt Extension34.25"-38.19" handle heights

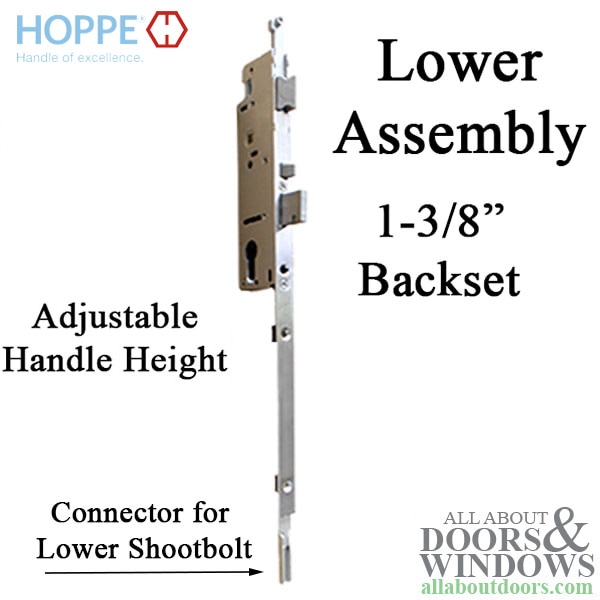

3664566 - Active,35mmLower Assembly
