16mm Inactive Gear, 60/92, ADJ. HH, 20/25mm Shootbolt Throw
Hoppes Inactive bottom shootbolt gear with adjustable handle height
The gear does NOT include the bottom Shootbolt -

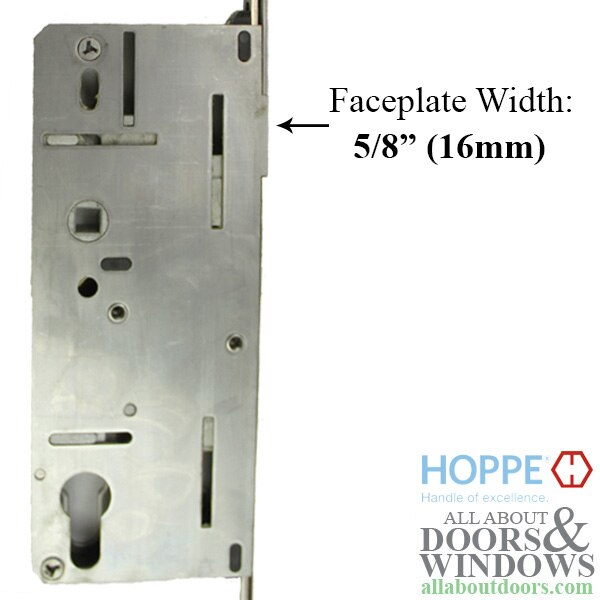

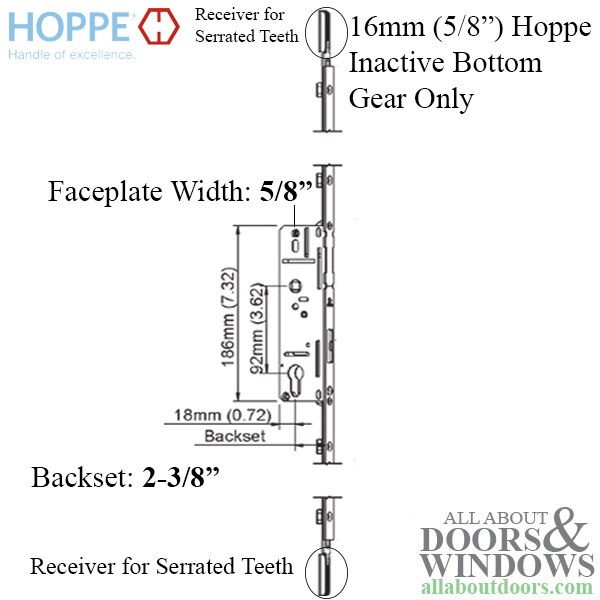

Faceplate Width: 5/8 inch ( 16mm)
Backset: 2-3/8 inch (60mm)

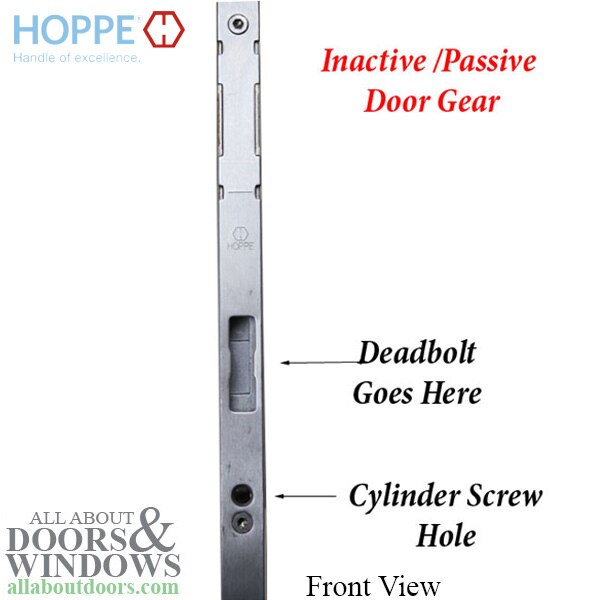

Function: Inactive Gear - Shootbolt

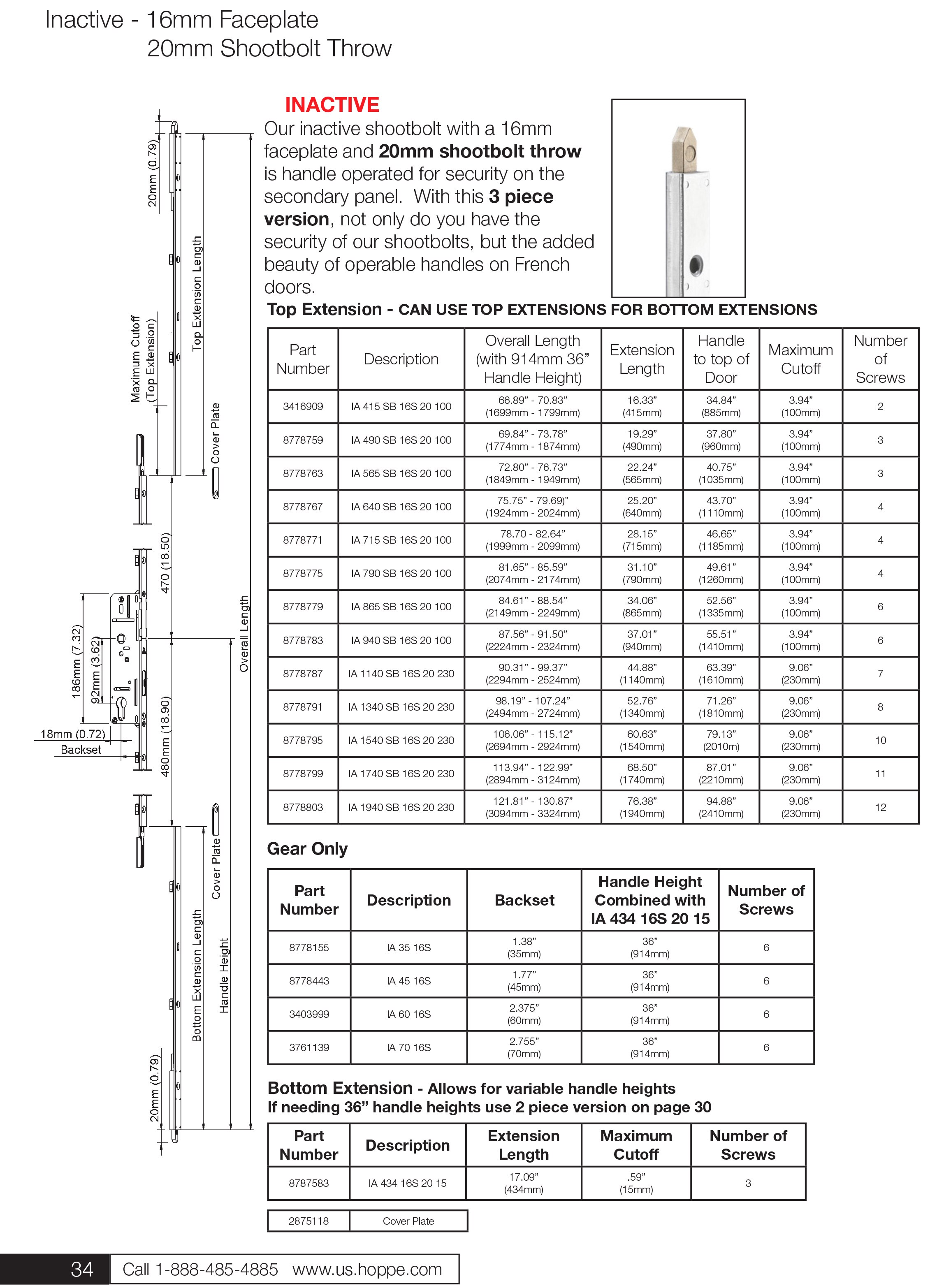

Use the TOP extension from the INACTIVE gear page to obtain the desired handle height.
Related Hardare:
3693113 - Active
3403999 - Inactive
