16mm Manual 4 Roller Gear, 35/92, @15.75 & 29.53", 1/2" D/B

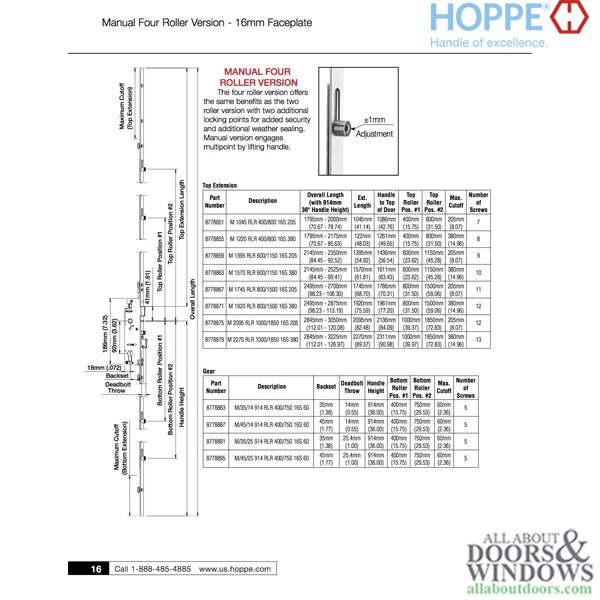

HOPPE HLS9000 Manual Locking Bottom Gear, Multipoint Lock Four Roller Version, Locking System

Specifications:

• Faceplate Width: 5/8 Inch (16mm)

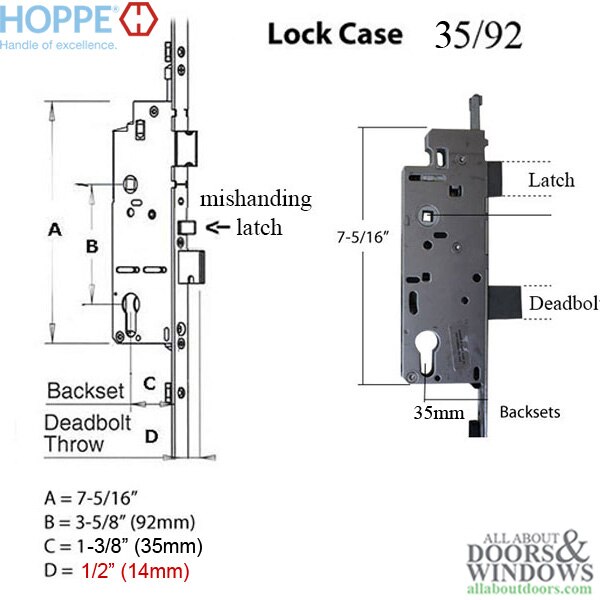

• Lock Backset: 1-3/8 Inches (35mm)
• Deadbolt Throw: 9/16 Inches (14mm)

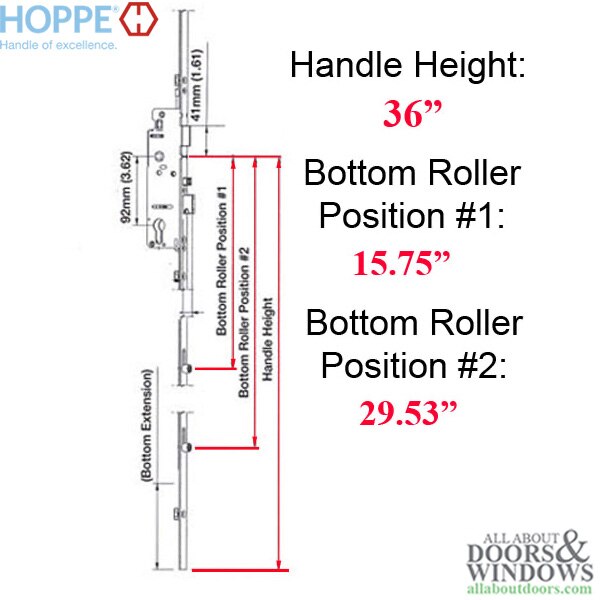

• Handle Height: 36 Inches (914mm)

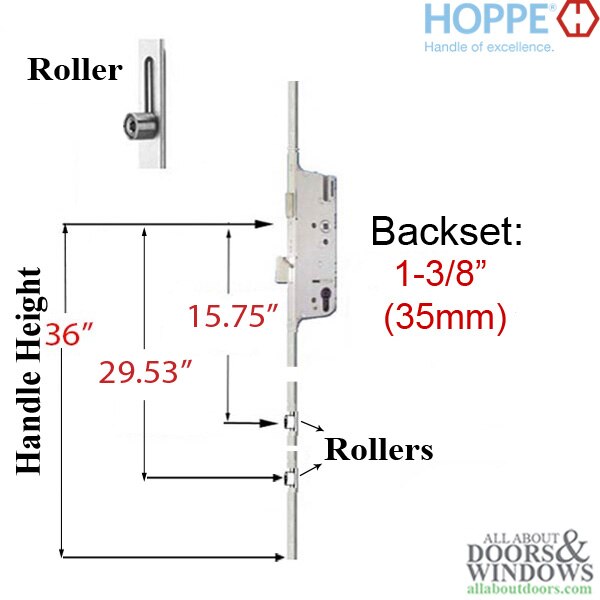

• Bottom gear has 2 rollers; Measured from handle to center of roller in locked position
• 1st Roller Position: 15-3/4 Inches (400mm) with roller in down (locked) position.
• 2nd Roller Position: 29-1/2 Inches (750mm) with roller in down (locked) position.
• Maximum Cutoff: 2-3/8 Inches (60mm)
• Number of Screws: 5
