16mm Fuhr Hook Version 3-point lock, 1-3/4" backset, 77-7/8" length

Part Number: 49901-1645H-01
Price: $224.44
Fuhr Multisafe Manual Gear with 2 hooks 77-7/8" Door
Manual One-Piece System with Gear and Top Extension attached

Application: Special Size, FUHR replacement

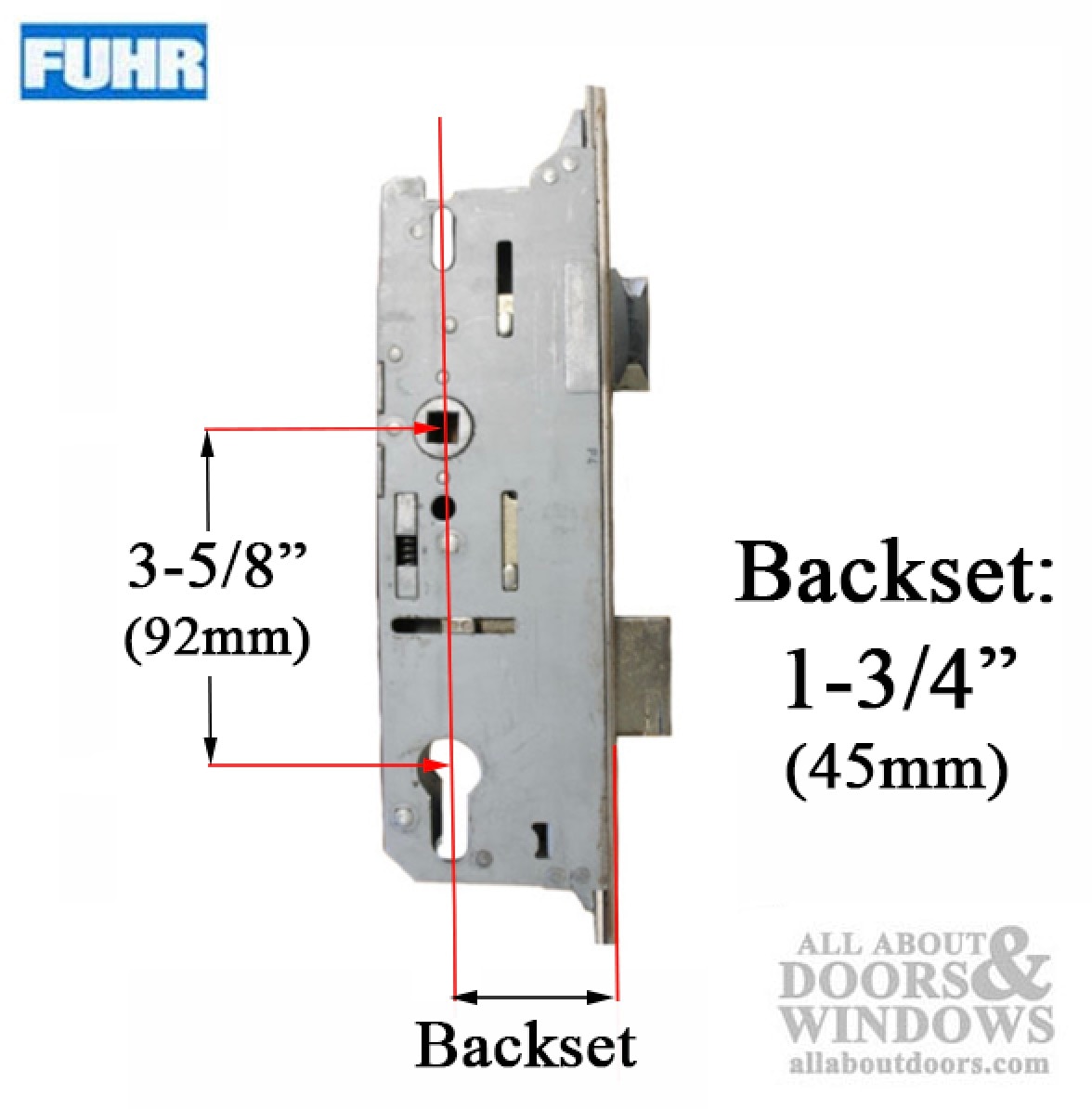

Backset: 1-3/4 inch (45mm)
Deadbolt Throw: 1 inch ( 25.4mm)
Faceplate Width: 5/8 inch (16mm)
Handle to cylinder PZ: 3-5/8 inch (92mm)
Cylinder Type: Euro Profile
Handle Height: 36 inch (914mm)
Upper Hook Position: 24-1/4 inch (615mm) 24.21"
Lower Hook Position: 26-1/8 inch (664mm) 26.14"
Overall Length: 77-7/8 inch (1978mm) 77.87"

Note: This one piece Fuhr multipoint lock is made for a specific door height of 77-7/8 inches

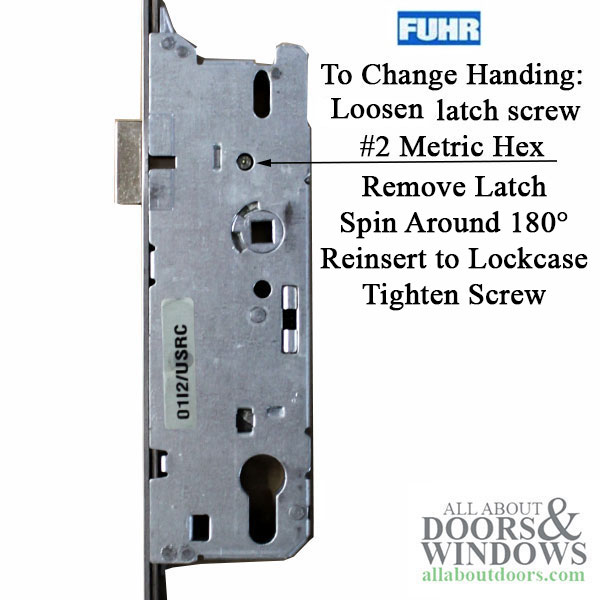

Article: How to Change the Handing on a Fuhr Lock (Change direction of slope of latch)
