16mm FUHR hook 45/92, BH 26-1/8, TH 32-3/4 Door 82-9/16" - SS

Part Number: 49901-1645H-02
Price: $225.00

Fuhr Multisafe Manual Gear with 2 hooks 82-9/16" Door

Manual One-Piece System with Gear and Top Extension attached


Application: Special Size, FUHR replacement

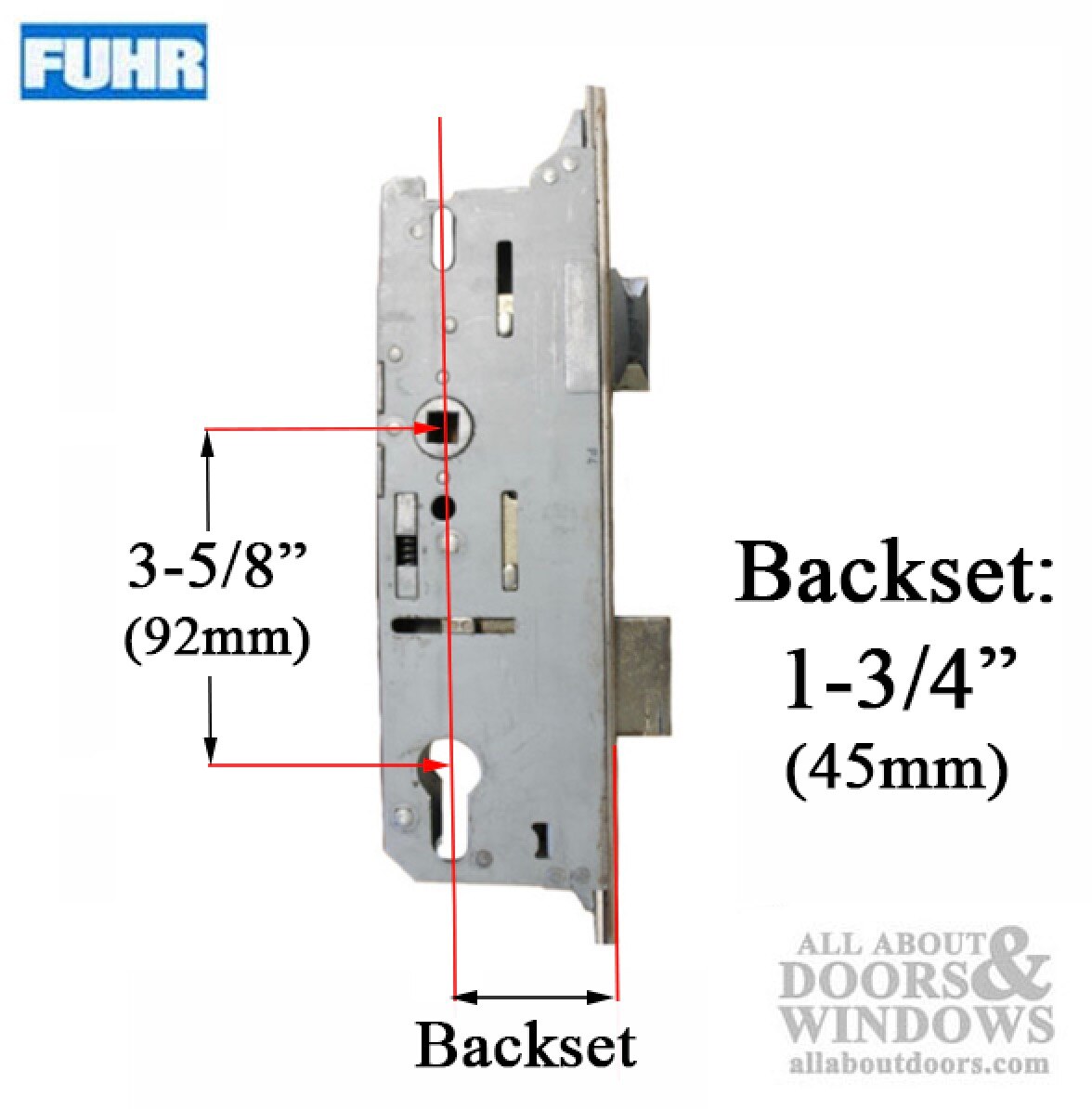

Backset: 1-3/4 inch (45mm)

Deadbolt Throw: 1 inch ( 25.4mm)

Faceplate Width: 5/8 inch (16mm)

Handle to cylinder PZ: 3-5/8 inch (92mm)

Cylinder Type:  Euro Profile

Handle Height: 36 inch (914mm)

Upper Hook Position:  32-23/32  inch (831mm) 32.71"

Lower Hook Position: 26-1/8 inch (664mm) 26.14"

Overall Length: 82-9/16 inch  (2097mm)  82.559"


Note: This One Piece Fuhr multipoint lock is made for a specific door height (82-9/16"). If your door is a different height, this may not work.
