16mm 45/92 Manual Version Rollers at 27.32" & 32.6" - Weathershield / Winkhaus

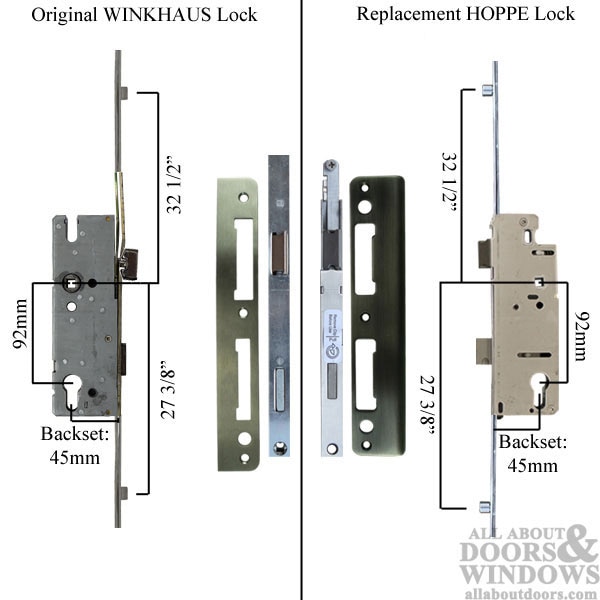

Weathershield Replacement for Old style Winkhaus multipoint lock with Rollers
This will replace Manual and Automatic versions used on WeatherShield Doors
Original Winkhaus / Weathershield door (lock) height was 77-1/2 inches
The Replacement lock fits doors up to 92-7/8 inches, will need to be cut to length for your door
Manufacturer: Hoppe HLS9000 Roller version Replacement Kit
Locking Type: Manual (lift handle to engage rollers )
Faceplate Width: 5/8 inch (16mm)
Handle Height: 36 inches (914mm)

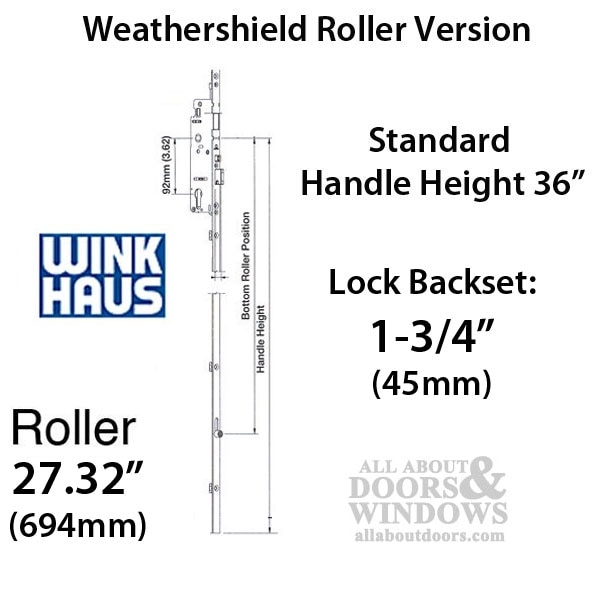

Bottom Roller Position: 27.32 inches
Top Roller Position: 32.6 inches
Fits Overall Length: up to 92-7/8 inches ( 2359mm) with 36 inch handle Height

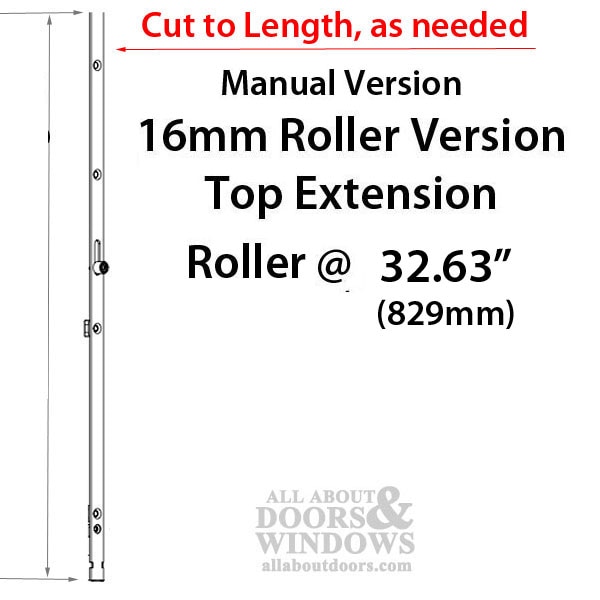

Top Extension Length of 55.31\" (1405mm) Top Extension
Maximum cut off Top: 19 inches (483mm)
Maximum cut off Bottom: 2.38 inches (60mm)
Number of installation screws: 13
Hoppe Components for this Kit: Weathershield 77-1/2" Door, 3-Point Lock, 2 Rollers:

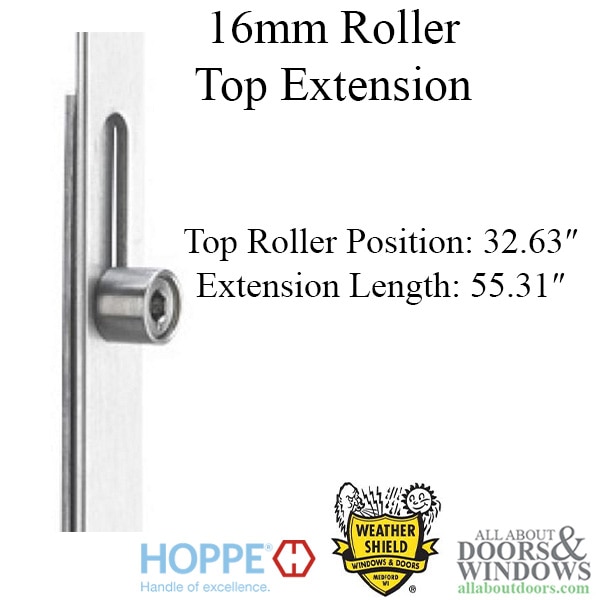

2002894 - 16mm 55.31 (1405mm) Top Extension Roller @ 32.63\" (829mm)
8785695 - Stainless Steel Screws, 1-3/8" (13)
