16mm Fuhr Hook Version 3-Point Lock, 1-3/4" Backset, 91" Length

Part Number: 49901-1645H-03
Price: $272.66
Fuhr Multisafe Manual Gear with 2 hooks 91-1/16" Door
Manual One-Piece System with Gear and Top Extension attached
Fuhr hook version multipoint lock, Stainless Steel faceplate, deadbolt and 2 hooks.

Fuhr Measurements:
Face Plate Width: 5/8 inch (16 mm)
Lock Backset 1-3/4 inches (45 mm)
Handle to cylinder PZ: 3-5/8 inches (92 mm)
Deadbolt projects 3/4 inch (20 mm)
Handle Height: 36"inch (914mm)

Hook Measurements:
Measuring from Handle Up or down to center of hook
Bottom Hook Position: 26-1/8 inches (664mm) 26.14 actual
Top Hook Position: 37-3/8 inch (950mm) 37.40 actual
Two Hooks located 63-1/2 (1613mm) apart - bottom hook to top hook.
Overall Length: 91-1/16 inch (2313mm) 91.06 actual

Note: This One Piece Fuhr multipoint lock is made for a specific door height.

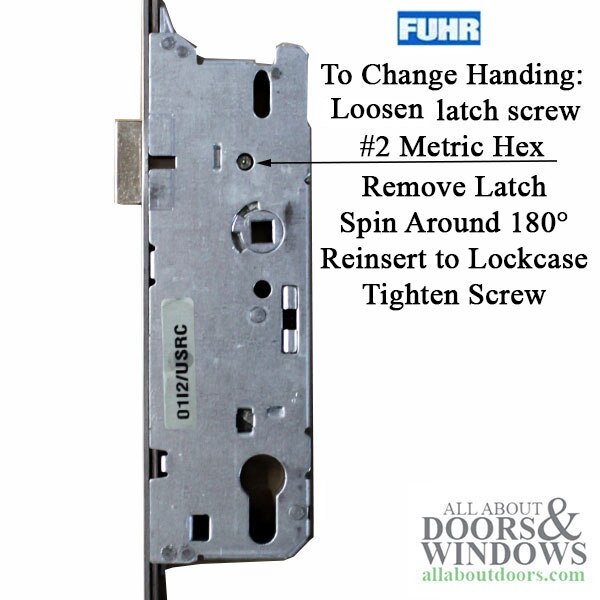

Article: How to Change the Handing on a Fuhr Lock (Change direction of slope of latch)
