Winkhaus 2 Hook Multi-Point Lock for Sliding Patio Door 28mm Lock Backset Length
Winkhaus 2 hook multipoint lock for sliding patio door with 28 mm backset

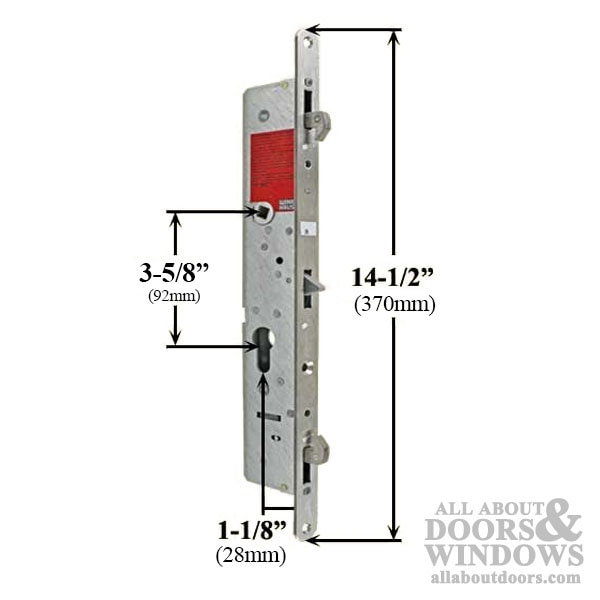

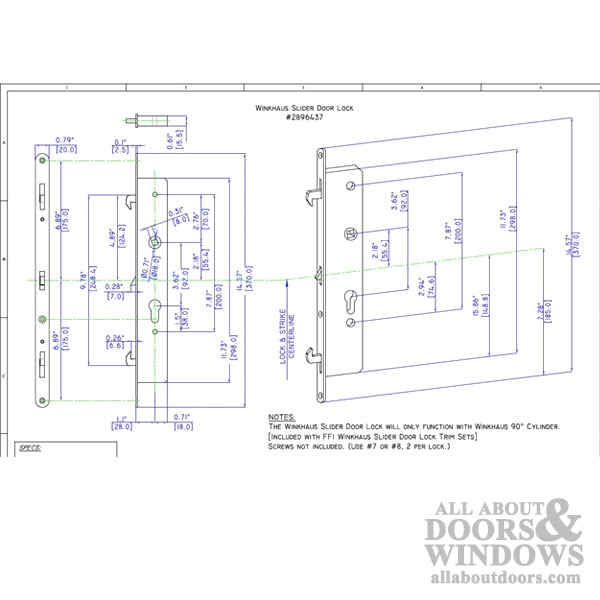

Faceplate Width: .787 (20 mm) 3/4 inch
Faceplate Length: 14.57 (370mm) 14-1/2 Inch
Lock Backset : 1.102 (28mm) 1-7/64 inch
Lock Center: 3.62 (92mm) 3-5/8 Inch
Lock Spindle Hub: .3149 ( 8 mm) 5/16 inch square
Faceplate Material: Stainless Steel 304 Grade Brushed
Contents: 1 Multi-Point Lock with 2 hooks
Handlesets to use with this lock: Winkhaus Sliding Patio Door Handles
Priced and sold each.
