Windsor Sash Lock, Pinnacle Series Double Hung window

Part Number: 500344
Price: $19.69

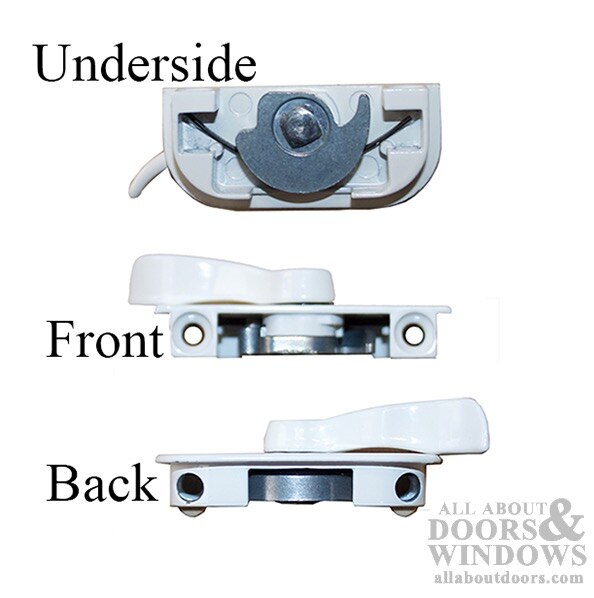

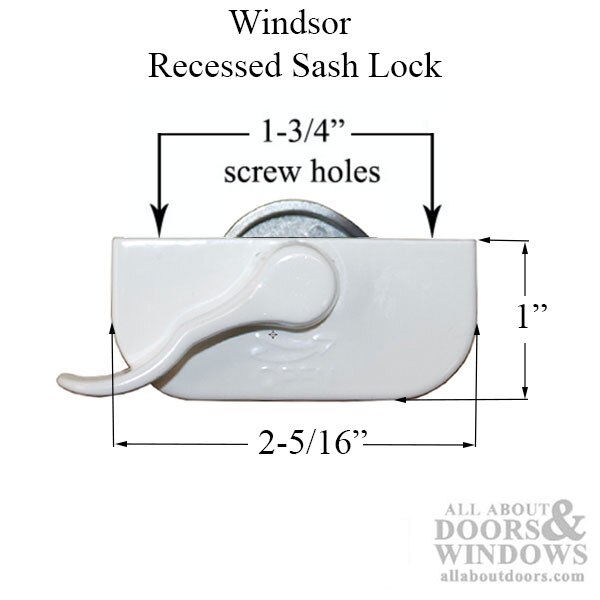

Recessed double hung sash lock with curved thumb latch.

Used by Windsor on their Pinnacle Series Clad  Double Hung Window


Screw Hole Spacing: 1-3/4 inch

Installation Screw Size: 1-3/16 inch, Flat Head Phillips

Standard Colors: White, Bronze, Champagne

Special Order Finishes: Oil Rubbed Bronze, Faux Bronze, Black, Brass, Satin Nickel

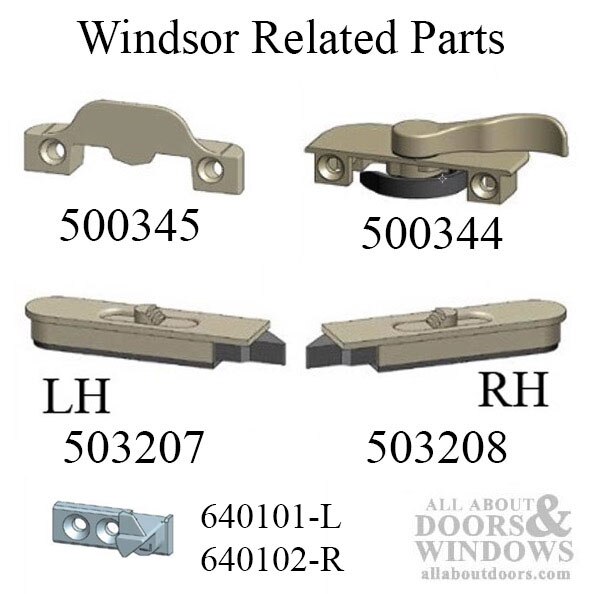

Related Parts:

500344 - Sash Lock

500345 - Keeper

503087 - Tilt Latch, Left

503208 - Tilt Latch, Right

640101 - Tilt Pin, Bottom Left

640102 - Tilt Pin, Bottom Right

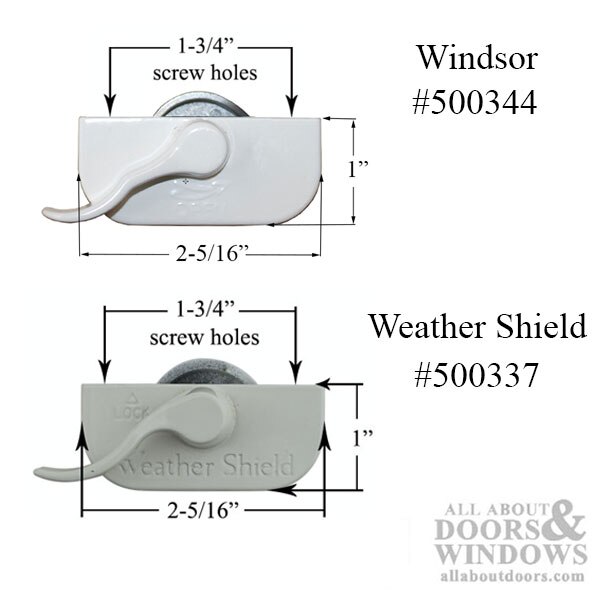

NOTE: Weather Shield and Windsor use the same size sash lock and at first glance they look the same. However, the thumb turn has a different shape and lower profile on the Windsor

Windsor Part Numbers
2382700 - White
2382701 - Champagne
2382702 - Bronze
