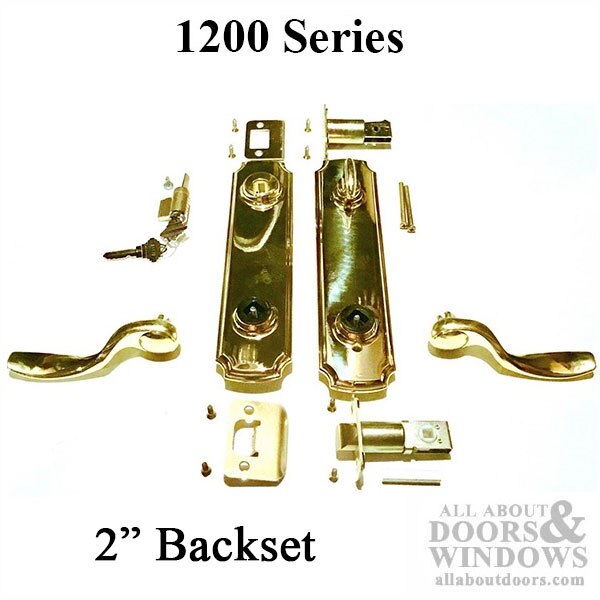

W&F 1200 Series Lock 5-1/2 C-C, 2" Backset - Polished Brass

The 2" backset latch for this handle set has been discontinued.

W&F 1200 Series Lock 5-1/2 C-C, 2" Backset - Polished Brass

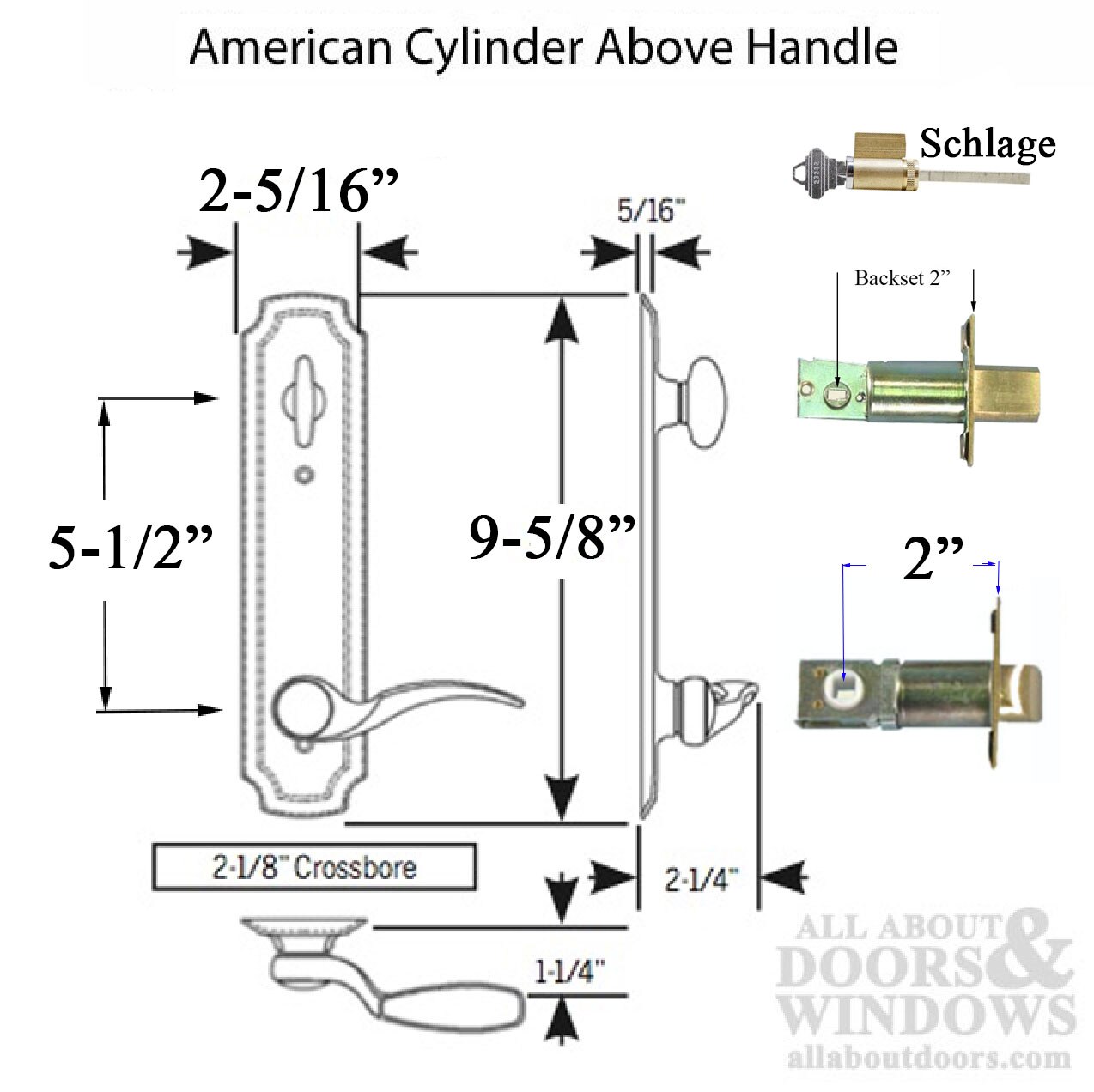

Specifications:

• Application: Hinged Door with deadbolt
• Style: Eclipse
• Backset: 2 Inches
• Handle Spacing: 5-1/2 Inches (Center of Latches)
• Backplate Width: 2 5/16 Inches
• Backplate Height: 9-5/8 Inches
• Door Thickness: 1-3/4 Inches
• Keyway: Schlage SC1, 2 keys
• Color / Finish: Polished Brass US3



NOTE: These have been discontinued by W&F

OPTIONS:
1. Replace Door
2. Replace Handle set with passage and deadbolt lock with 2 inch backset
* 40505 - Passage lever, Stubby
* 40521 - Single Cylinder Deabbolt for 2-1/8" Diamter Hole
* 40522 - Double Cylinder Deadbolt for 2-1/8" Diamter Hole

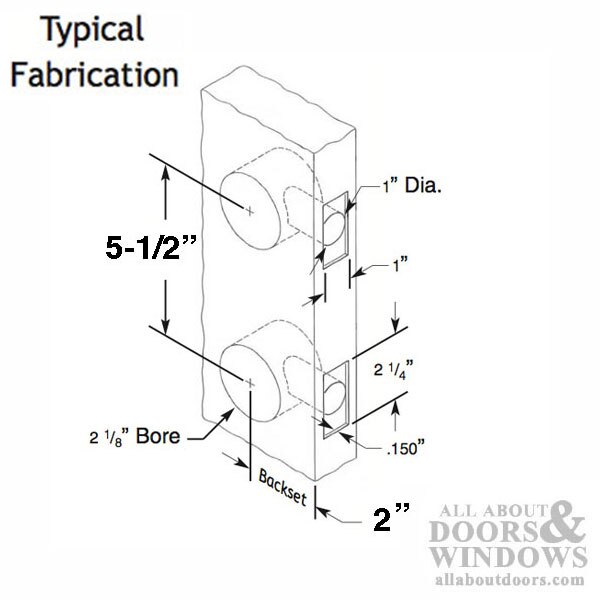

3. Mortise door for single point lock with 2" backset
** 6-C4873-50-0-8 G-U Single point lock, 2" backset
** HOPPE 22/45 Single point lock, 1-3/4" Backset
** For 1-3/4" Diameter hole, will need new handle set with 2" wide plate

CONTACT Office for more information
