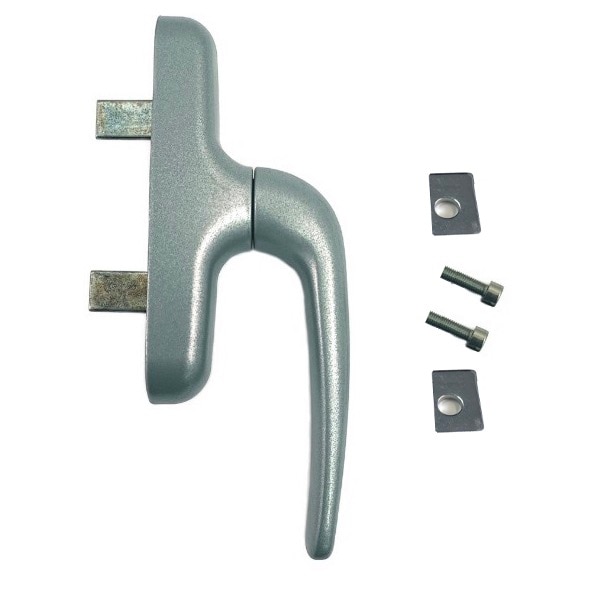

Universal Cremonese Dual Blade Tilt Turn window handle
Universal Cremone handle Cremonese for aluminum and PVC window Opera Silver
Blades: Two (2)

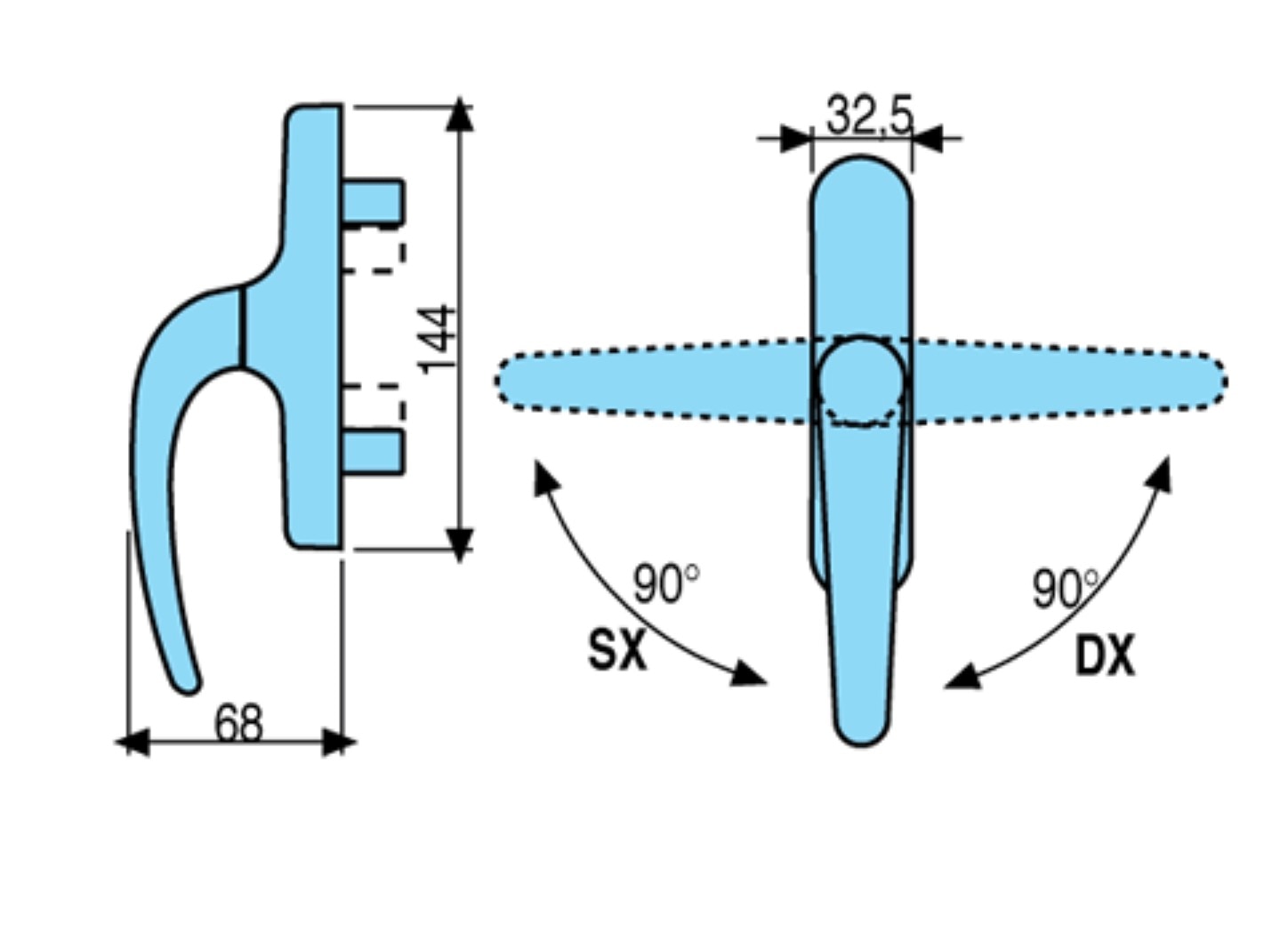

Base Width: 1.279" (32.5mm)
Base Length: 5.66" (144mm)
Projection: 2.677" (68mm)
Overall Length w/ Lever : 6-5/8 (177mm)
Screw Hole Spacing: 3.622" & 4.094" (92mm & 104mm)
Handle Rotation: 90 degrees

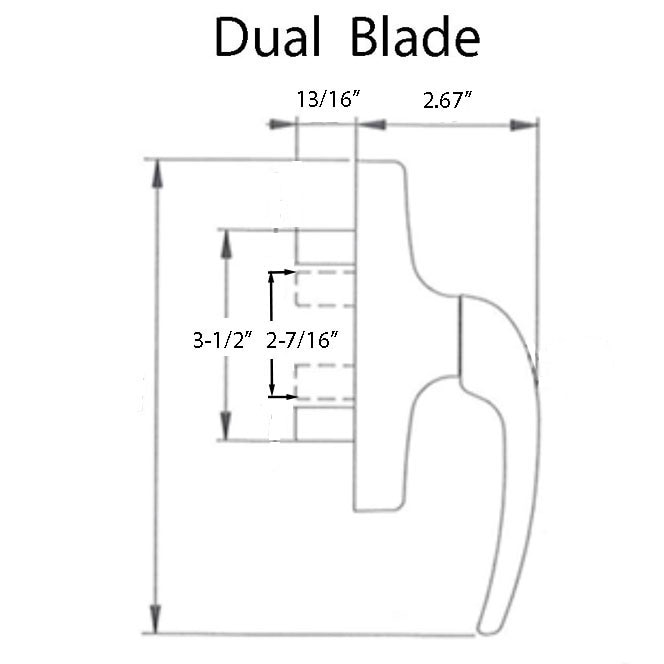

Blade Separation: 2-7/16" to 3-1/2" Spread
Handed: Yes, Reversible
Keyed: No
Material: Die Cast Aluminum
Color: Silver
Metric to Inches Conversions
84.5mm = 3.326"
92mm = 3.622"
98mm = 3.858"
100mm = 3.937"
104mm = 4.094"
