Unavailalbe DFA / Larson Mortise Lever Lock - SEE NOTES
Discontinued - Replace with 302035

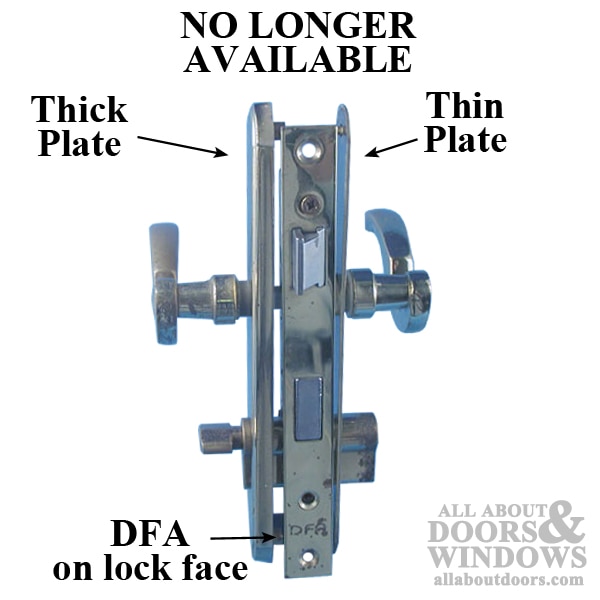

Larson / DFA Mortise Lever Lock. Flat Inside plate, raised outside plate with stud posts. This Storm door mortise lock by Larson has been Discontinued.

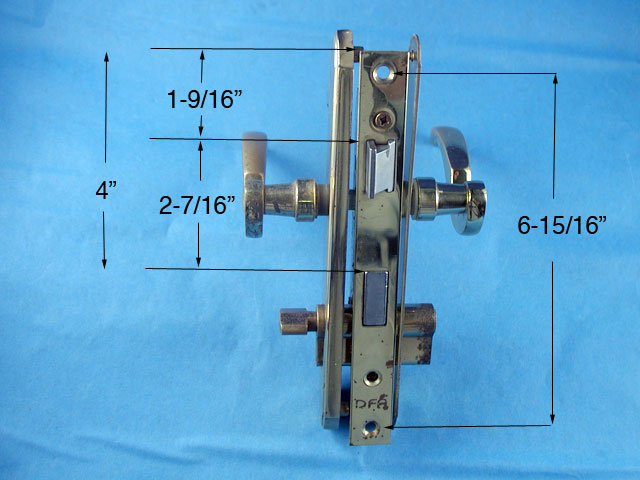

DFA Plate mounting Screws spaced at 7-1/8 inches.
Backset: 7/8 inch
Face Plate: 13/16 x 7-3/4
Face Plate Screws: 6-15/16
NOTE: This is NOT interchangable with Papaiz, Emtek or Pado. The Deadbolt latch is way off.
The best Mortise lock replacement is 302039
