Unavailable - Multi-Bolt Lock 68mm Handles, 55mm BS, Stainless - Schlegel

Part Number: 499106199
Price: See Description

This product has been discontinued and is no longer available

This part has been Discontinued and is no longer available for purchase.

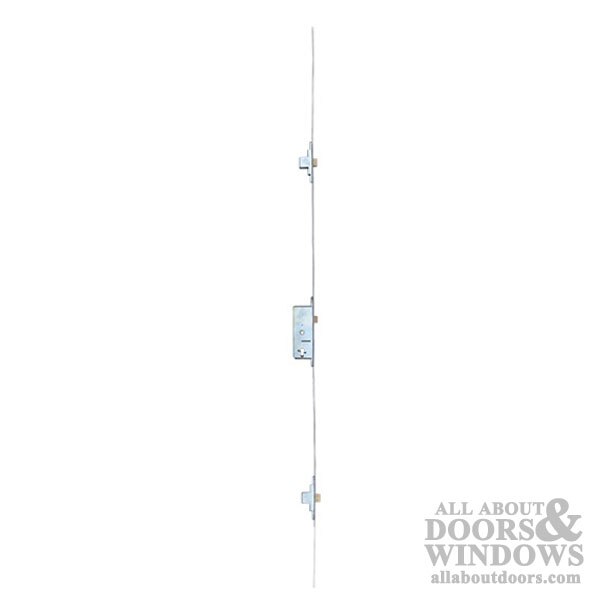

Schlegel 3-Point Multi-Bolt Lock

This is an 86" bolt-version multipoint lock made by Fuhr.
It features a center deadbolt/spring latch and 2 bolt locking devices located 25-5/8 up and down from the center of the cylinder.

This lock is no longer available for purchase and must be replaced.

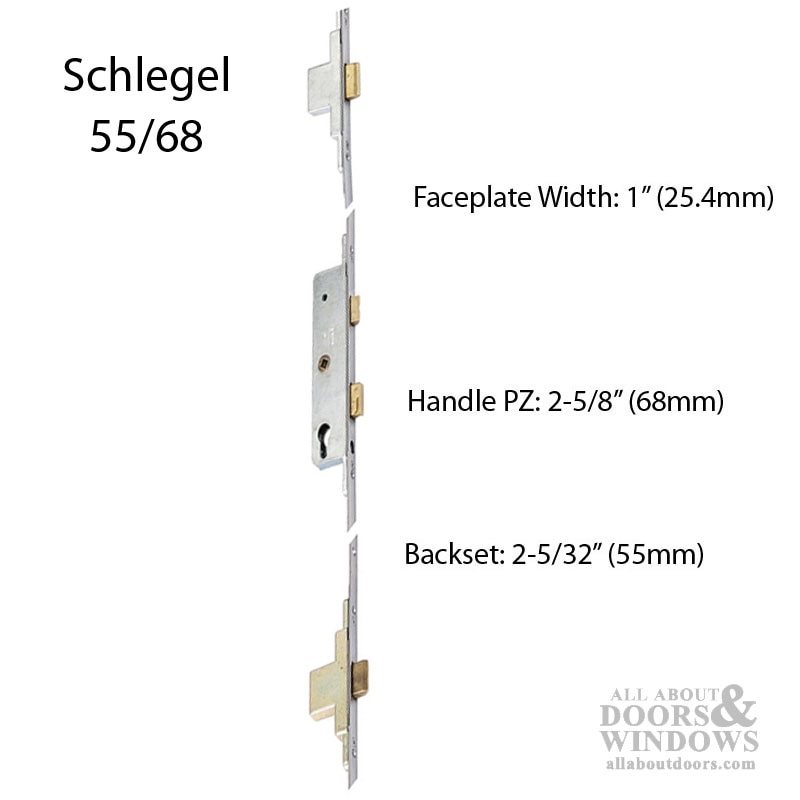

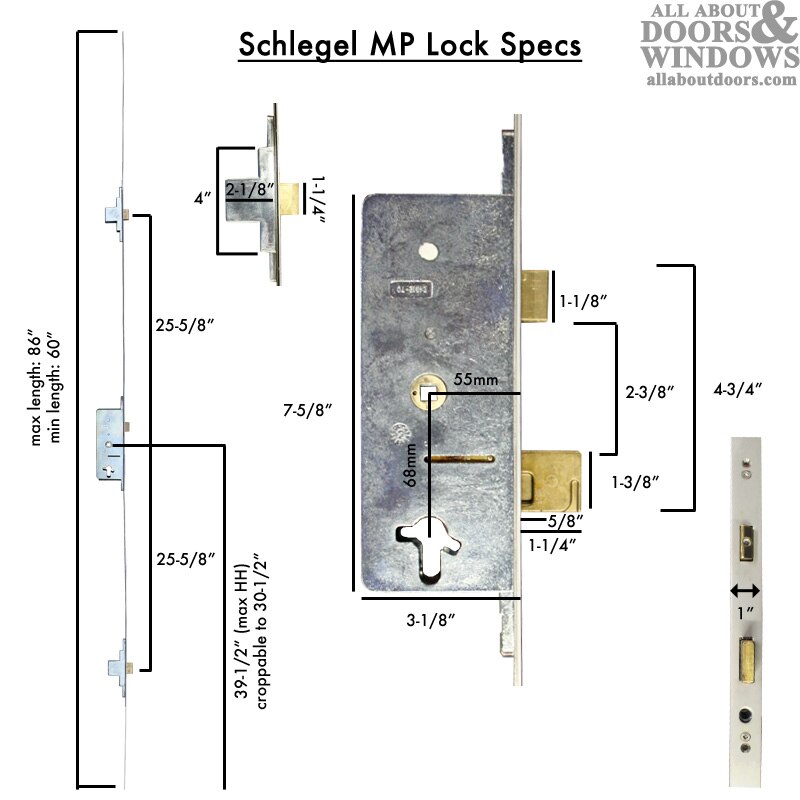

Measurements:
Overall Length: 86 inches
Handle-Height: 39-1/2 inches
Croppable on both top and bottom (this may be your lock even if shorter than 86 inches)
Faceplate: 1 inch wide
Top Bolt Position: 25-5/8 inches
Bottom Bolt Position: 25-5/8 inches
PZ Handle-to-Cylinder Spacing: 68mm
Lock Body: 3-1/8 deep by 7-5/8 tall
Backset: 55mm


We have developed a tongue version replacement kit for this lock, and we have written an article to guide you through the replacement process. Replacing this lock will require you to change or replace your handles.

Best replacement option: Fill groove and route a new groove in door for a new single or multipoint lock.
For any questions please contact our office.

See article: How to Replace a Schlegel 3-Point Lock
