Truth Slide-in Top mounted screw Non-Handed Tilt Latch
Discontinued, Old Inventory, May have minor imperfections in finish, Sold as is
Amesbury Truth Legacy recessed top mounted Slide-in tilt latch for vinyl and fiberglass single hung or double hung windows.

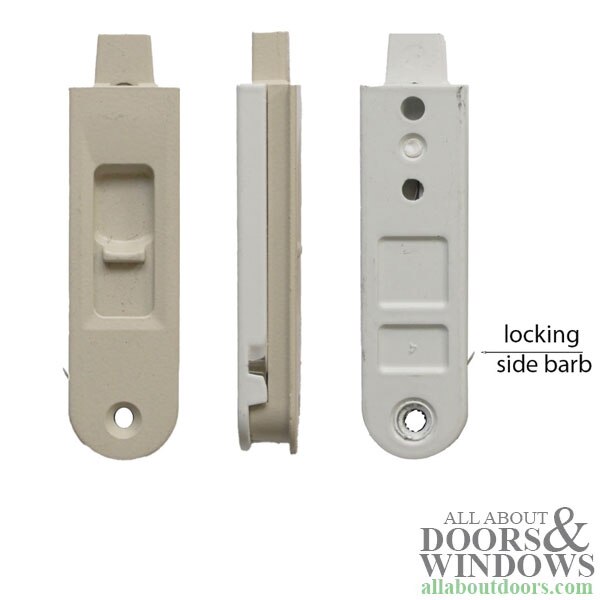

Mounting Type: Slide-in, Top mounted screw & locking side barb

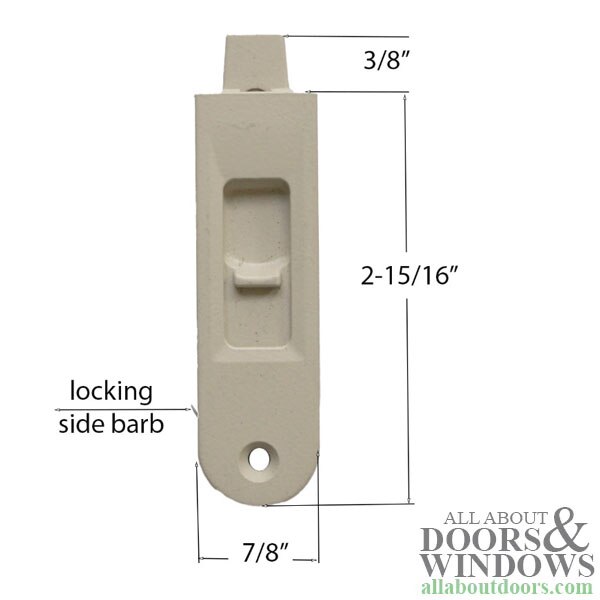

Housing Width: 7/8 inch (22mm) .865
Housing Length: 2-15/16 inch (74.5mm) 2.932
Housing Thickness: 1/2 inch ( 11.7mm) .460
Latch projection: 3/8" (9.6mm) .380
Handed: NO, fits left or right hand sash
Material: Die Cast Zinc

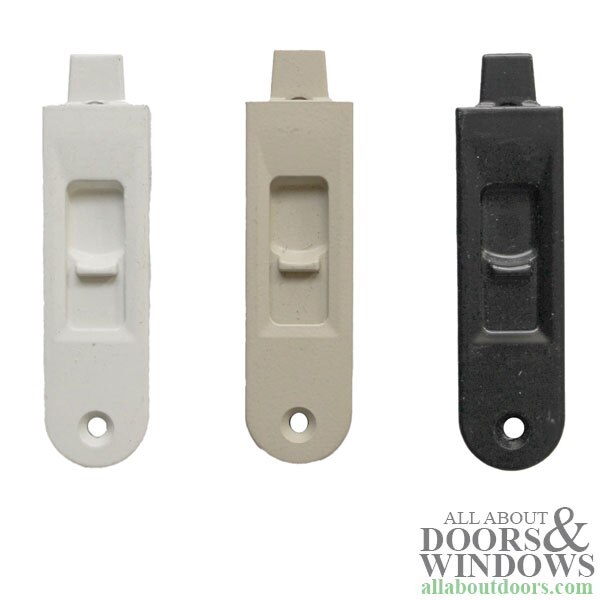

Finishes: Assorted Durable coatings, Electrostatic applied
Installation Screws: Recommended #8 Phillips flat head screws
Priced and sold each, Tilt Latch only, does not include screw
Handing Note:
Some companies referred to this as a left hand viewed from the outside. Other times is is referred to as a right hand viewed from inside. Please refer to the image to determine which handing you need.
Truth has several mounting applications.
* snap-in mount
* hidden mounting fastener
* top mounted fasteners, Standard
