Casement Operator Entrygard Dual Arm, Long Link 20810, Right
Truth 15.10 Entrygard Dual Arm Casement Operator, Surface mount hardware used by Bilt Best, Windsor, Vetter, Pozzi, Shelter & other wood casement windows.

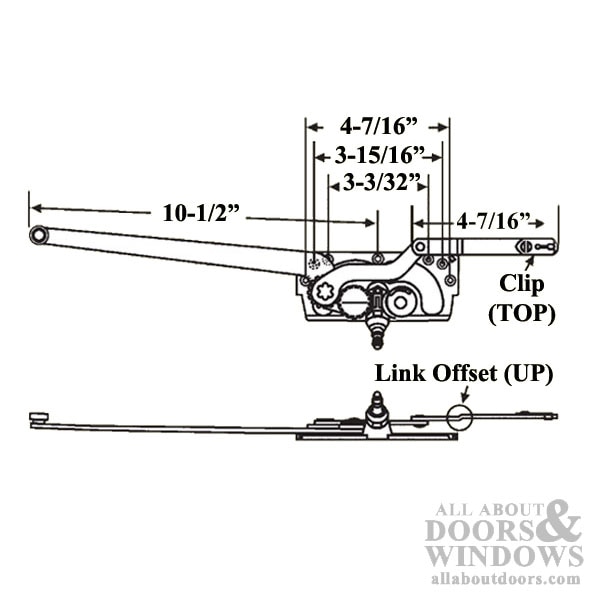

Long Arm Length: 10-1/2 inches; center of operator to center of button
Short Arm Length: 4-7/16 Inch; offset LINK - UP
Arm Type: Dual Arm - Straight Arm, No Offset, Split arm with Link
Roller Material: Nylon
Roller Size: 9/16 Diameter; 3/16 thick

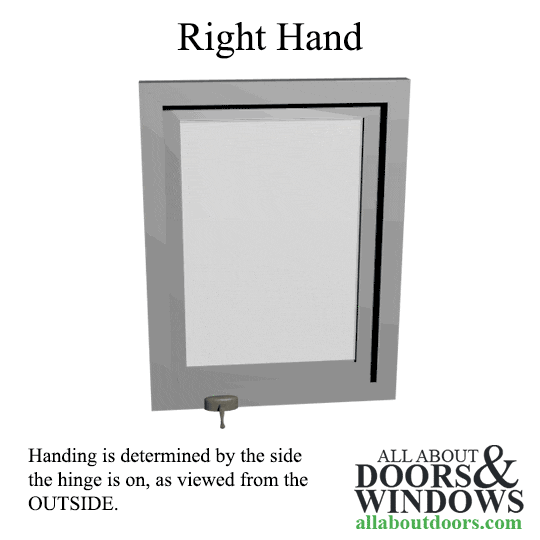

Handing: Right Handed window operator replacement, as shown in picture (Handing is determined by the side the hinge is on, as viewed from Outside.)

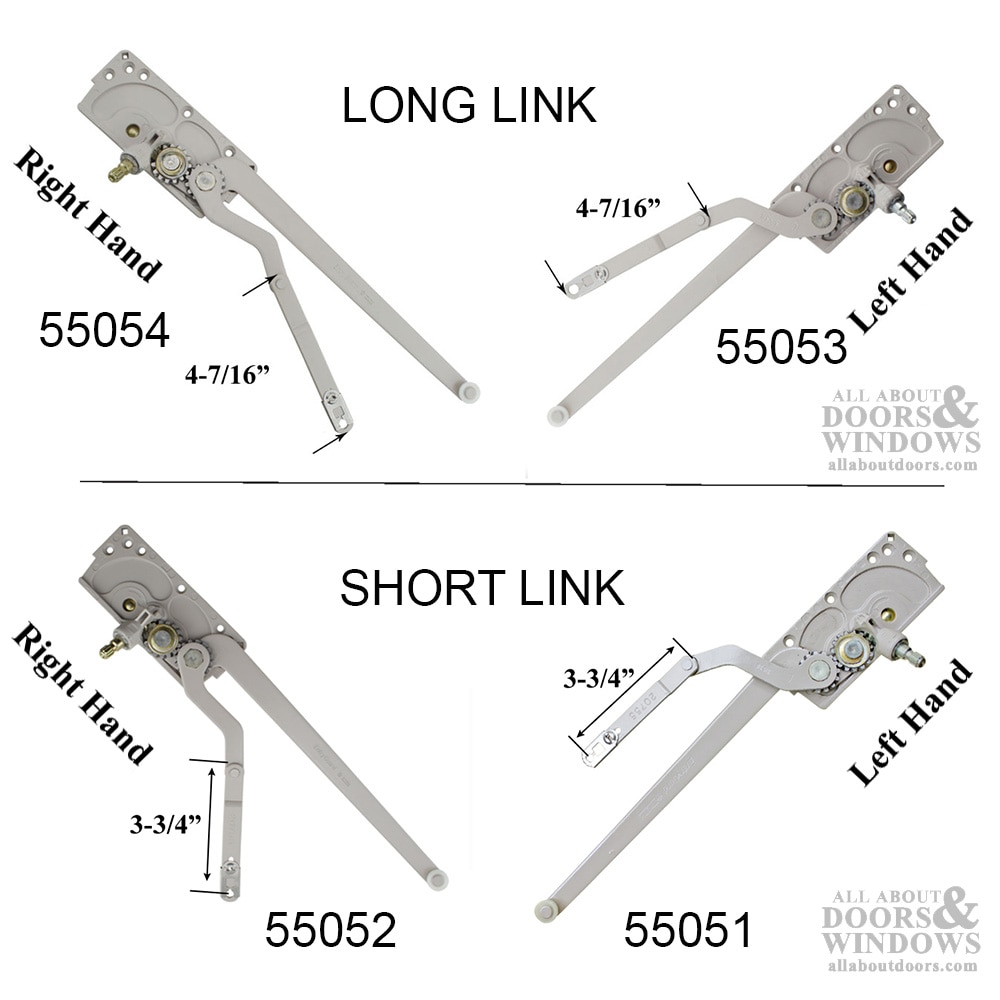

Left handed operator: 55053
Standard Color/Finish: Mill / Stone Color - New E-Gard

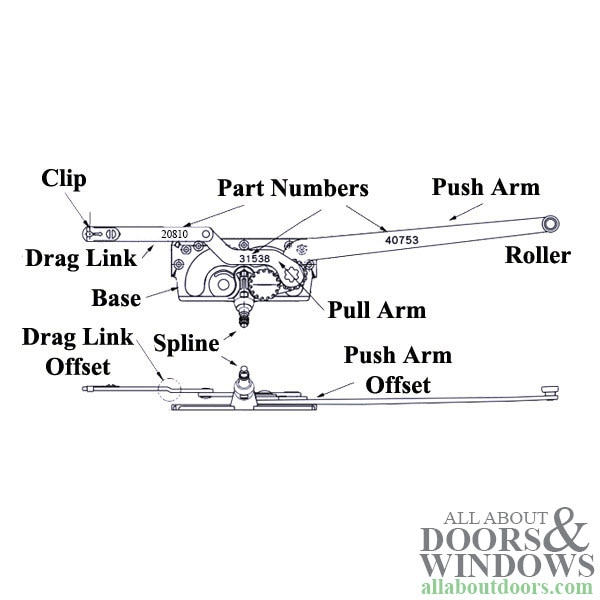

Truth 15.16 Markings: 20810, 20544 or B on short Link
Crank Handle Spline: 11/32 Diameter
Spline Color: Gold for Right Hand Cranks - Silver for Left Hand
Sold Each, No Screws
Related Items:
Truth Cover Options (Not Included)
- Standard Design: 55300 & 55301
- Folding Handle and Cover: 55305
Truth Handle Options (Not Included)
- Standard Design: 55311
- Folding Design: 55312
- T-Type Design: 55313
- Round Design: 55316
- Contour Design: 55317
Track Options (Not Included)
- 3-Hole Track: 55159
- 4-Hole Track:55160
Long Arm Length: 10-1/2 inches; center of operator to center of button
Short Arm Length: 4-7/16 Inch; offset LINK - UP
Arm Type: Dual Arm - Straight Arm, No Offset, Split arm with Link
Roller Material: Nylon
Roller Size: 9/16 Diameter; 3/16 thick
Handing: Right Handed window operator replacement, as shown in picture (Handing is determined by the side the hinge is on, as viewed from Outside.)
Left handed operator: 55053
Standard Color/Finish: Mill / Stone Color - New E-Gard
Truth 15.16 Markings: 20810, 20544 or B on short Link
Crank Handle Spline: 11/32 Diameter
Spline Color: Gold for Right Hand Cranks - Silver for Left Hand
Sold Each, No Screws
Related Items:
Truth Cover Options (Not Included)
- Standard Design: 55300 & 55301
- Folding Handle and Cover: 55305
Truth Handle Options (Not Included)
- Standard Design: 55311
- Folding Design: 55312
- T-Type Design: 55313
- Round Design: 55316
- Contour Design: 55317
Track Options (Not Included)
- 3-Hole Track: 55159
- 4-Hole Track:55160
This product is similar to or the same as the following part numbers in these brands:
Prime-Line Products: TH 23077
Strybuc Industries: 36-174-A
Truth Hardware: 15.10.00.202
Prime-Line Products: TH 23077
Strybuc Industries: 36-174-A
Truth Hardware: 15.10.00.202
