Truth 9-1/2" Single Arm Casement Operator, Front Mount, Right Hand - Choose Color
SKU: 58004
Details
Truth 23 Series Single Arm Casement Operator, Front Mount, 9-1/2 inch Arm
Used with aluminum, steel or vinyl casement windows

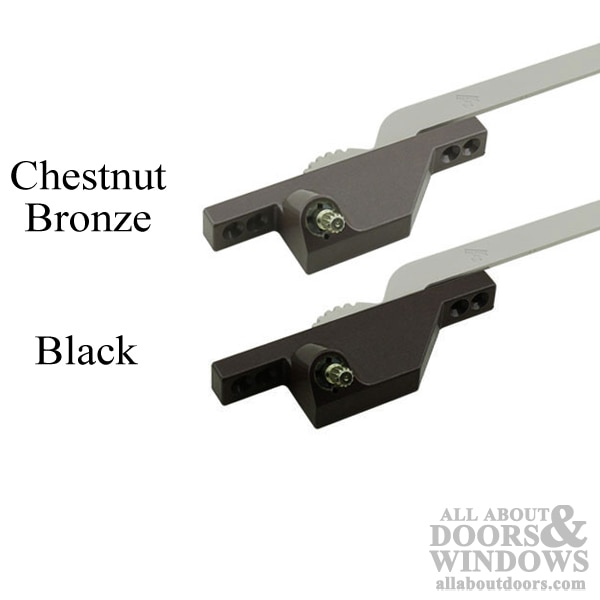

Color / Finish: Assorted
Mounting: Front Mount

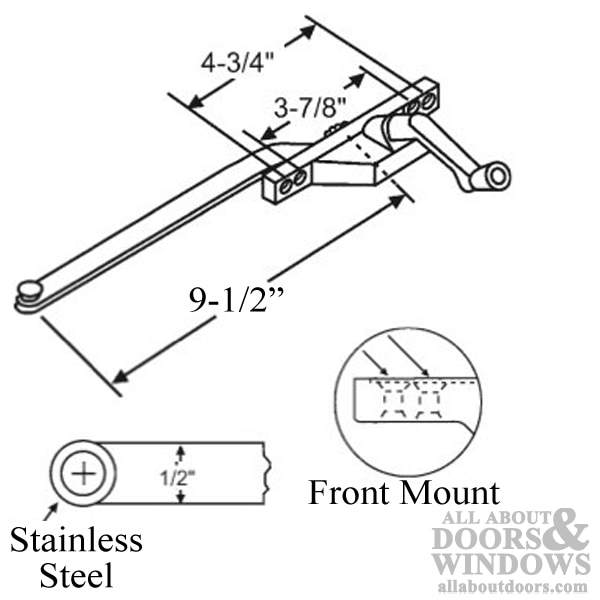

Mounting Screw Holes: 3-7/8" & 4-3/4"
Arm Length: 9-1/2 inch, from center of operator to center of roller
Arm Width: 1/2 inch
Includes 1 operator , NO crank handle.
Installation hardware NOT included.
Right handed as shown in picture
For left handed operator, see 58003
Note: Handing varies for Residential and Commercial applications.
Truth 23 Series Single Arm Operators are commercially handed by the hinge side when viewed from the inside
Used with aluminum, steel or vinyl casement windows
Color / Finish: Assorted
Mounting: Front Mount
Mounting Screw Holes: 3-7/8" & 4-3/4"
Arm Length: 9-1/2 inch, from center of operator to center of roller
Arm Width: 1/2 inch
Includes 1 operator , NO crank handle.
Installation hardware NOT included.
Right handed as shown in picture
For left handed operator, see 58003
Note: Handing varies for Residential and Commercial applications.
Truth 23 Series Single Arm Operators are commercially handed by the hinge side when viewed from the inside
Additional Information
This is similar to or the same as the following parts by these brands
Stry-buc: 36-434-8, 36-434-10
Stry-buc: 36-434-8, 36-434-10
