Truth 15.56 Ellipse 7-1/2 single arm casement operator, nylon roller, Left

This product has been discontinued. Limited to existing inventory.
Replace with: 50.60.00.212

Additional components required with this replacement:
Cover/Handle: 55309 and Stud/Snap-On Bracket: 551093

A track is not required with the replacement operator. The bracket is what provides the opening and closing of the window.

NOTE: Split-Arm operators are handed opposite compared to Single-Arm operators.

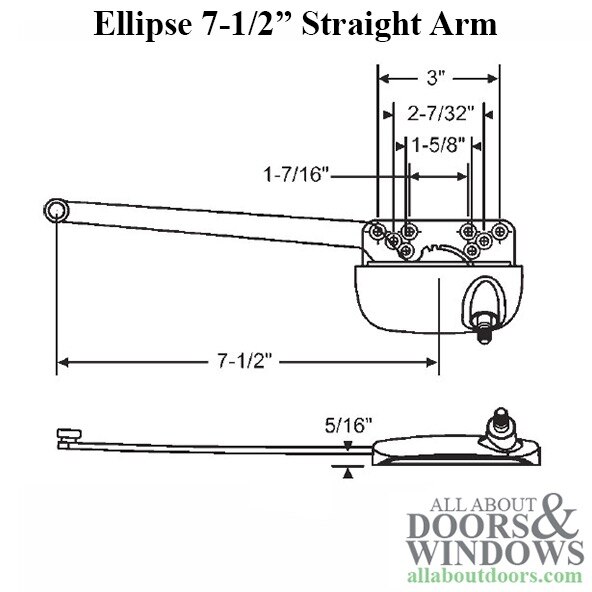

Truth 15.56 Ellipse 7-1/2 Straight Arm operator for wood or vinyl windows
Used by many window companies including Weather Shield on their Visions vinyl casement window.

Application: Casement windows, Sill Mount
Operator Style: Ellipse
Window Type: Wood or Vinyl
Operator Type: Split Arm with Straight link
Arm Length: 7-1/2 inch with Nylon Roller attached

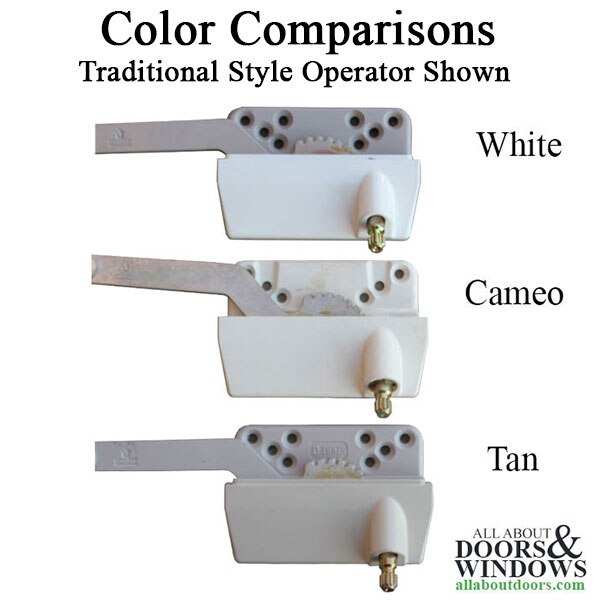

Color: Limited to existing shown
Handed: Yes, Left and Right handed as shown
Material: Zinc Die Cast Body with E-Gard steel arms
Markings: Main Body, Truth
